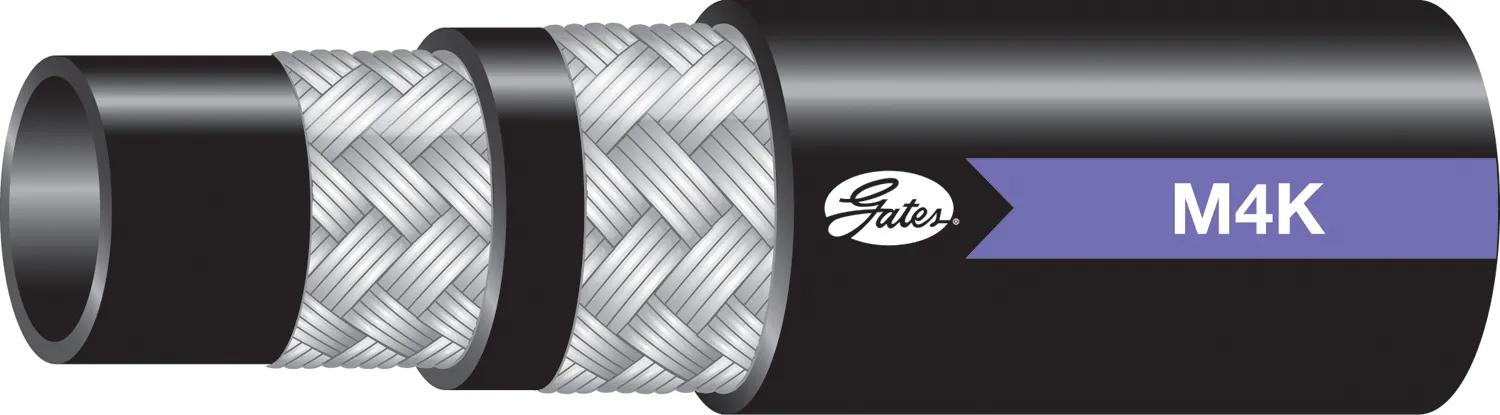

Tuyau hydraulique, Lo: 50 pi, DI: 1 in
#GAT71064
Sommaire du produit
Recommended for High-Pressure Hydraulic Applications. Exceeds SAE 100R19 & ISO11237 R19. Allows for Tighter Minimum Bend Radius, Increased Working Pressure & Improved Impulse Cycles than Industry Standards.
Caractéristiques et avantages
- Fournit des performances, une flexibilité, un routage et une plomberie plus faciles des plates-formes hydrauliques mobiles et stationnaires Conforme à la désignation d'acceptation de résistance aux flammes MSHA 2G
- Plage de température : -40 °F - +212 °F (-40 °C - +100 °C) Raccords recommandés : GlobalSpiral, MegaCrimp, acier inoxydable B (tailles 4 à 8) et acier inoxydable S (tailles 12 à 16)
Spécifications
| Color | Black |
| Coupling Recommendation | GlobalSpiral, Stainless Steel S |
| Cover Material | Synthetic Rubber - Modified Nitrile - Type C2 - Color Coded Layline |
| Cover Type | Type C2 - Flame, Oil, Abrasion & Weather Resistant |
| Dash Size | 16 |
| Industrial Description | 16M4KXREEL |
| Inside Diameter 1 (in) | 1 in |
| Length | 50 ft |
| Maximum Pressure | 4000 psi |
| Minimum Burst Pressure (PSI) | 16000 psi |
| Outside Diameter | 1-33/64 in |
| Product Type | Global M4K Mega4000 Hose - SAE 100R19 |
| Radius | 4-1/2 in |
| Reinforcement | Two Braids; High-Tensile Steel Wire |
| Standard | SAE 100R19 |
| Temperature Range | -40 °F to 212 °F |
| Tuyau - Description | Black, Oil-Resistant, Synthetic Rubber |
| Type | High Pressure |
Interchanges et pièces équivalentes:
| H35016 |
| H35016150R |
| 71064 |
| 16M4KXREEL |
| 04029822 |
| 46574051 |
