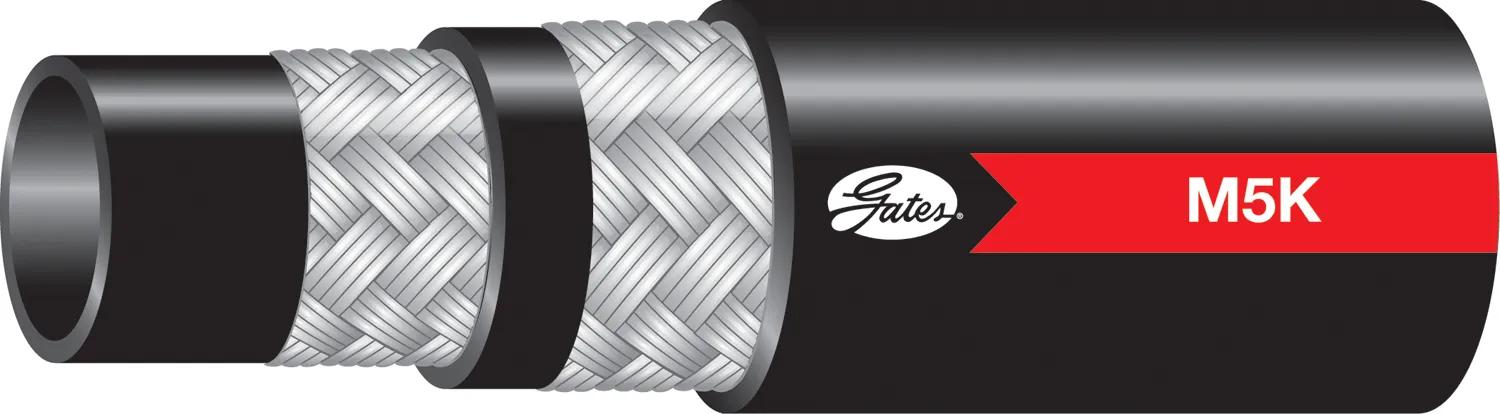

Hydraulic Hose, Le: 50 pi, ID: 3/8 in
#GAT70597
Product Overview
Recommended for High-Pressure Hydraulic Applications. Provides Tighter than Standard Minimum Bend Radius & Greater Flexibility for Easier Plumbing. Meets Flame Resistance Acceptance Designation MSHA 2G.
Features & Benefits
- Temperature Range: -40 Deg F - +212 Deg F (-40 Deg C - +100 Deg C). Recommended Couplings: GlobalSpiral, MegaCrimp & Stainless Steel B.
Specifications
| Color | Black |
| Coupling Recommendation | GlobalSpiral, MegaCrimp, Stainless Steel B |
| Cover Material | Synthetic Rubber - Nitrile/PVC - Type C2 - Color Coded Layline |
| Cover Type | Type C2 - Flame, Oil, Abrasion & Weather Resistant |
| Dash Size | 6 |
| Industrial Description | 6M5KXREEL |
| Inside Diameter 1 (in) | 3/8 in (0.97 cm) |
| Length | 50 ft (15.24 m) |
| Maximum Pressure | 5000 psi (344.73 bar) |
| Minimum Burst Pressure (PSI) | 20000 psi (1378.93 bar) |
| Outside Diameter | 45/64 in (1.78 cm) |
| Product Type | Global M5K Mega5000 Hose |
| Radius | 2-1/2 in (6.35 cm) |
| Reinforcement | Two Braids; High-Tensile Steel Wire |
| Temperature Range | -40°F @ 212°F (-40°C @ 100°C) |
| Tube Description | Black, Oil-Resistant, Synthetic Rubber |
| Type | High Pressure |
Interchanges & Equivalent parts:
| 70597 |
| 6M5KXREEL |
| 7876 |
| 04029803 |
| 46572695 |
