Hydraulic Hose, Le: 50 pi, ID: 3/8 in
#GAT70601
Product Overview
Recommended for Medium Pressure Hydraulic Lines. Meets or Exceeds the Requirements of SAE 100R1 Type S & ISO 1436 1SN R1, as Well as the Performance Requirements of EN 853 1SN. Meets Flame Resistance Acceptance Designation MSHA 2G.
Features & Benefits
- Temperature Range: -40 Deg F - +212 Deg F (-40 Deg C - +100 Deg C).
- Recommended Couplings: Field Attachable Type T, GlobalSpiral, GlobalSpiral Plus, MegaCrimp, MPGB (Size 3), Power Crimp (Size 3), Power Crimp Grease (Size 3) & Stainless Steel B (Sizes 4 - 12, 20 & 32).
Specifications
| Couleur | Black |
| Recommandation d'accouplement | Field Attachable T, GlobalSpiral, MegaCrimp, Stainless Steel B |
| Matériau du couvercle | Synthetic Rubber - Nitrile/PVC - Type C2 |
| Type de housse | Type C2 - Flame, Oil & Abrasion Resistant |
| Dash Size | 6 |
| Description industrielle | 6G1XREEL |
| Diam. intérieur 1 (po) | 3/8 po (0,97 cm) |
| Longueur | 50 ft (15,24 m) |
| Pression maximale | 2600 psi (179.26 bar) |
| Pression minimale d'éclatement (PSI) | 10400 psi (717.04 bar) |
| Diamètre extérieur | 11/16 in (1.75 cm) |

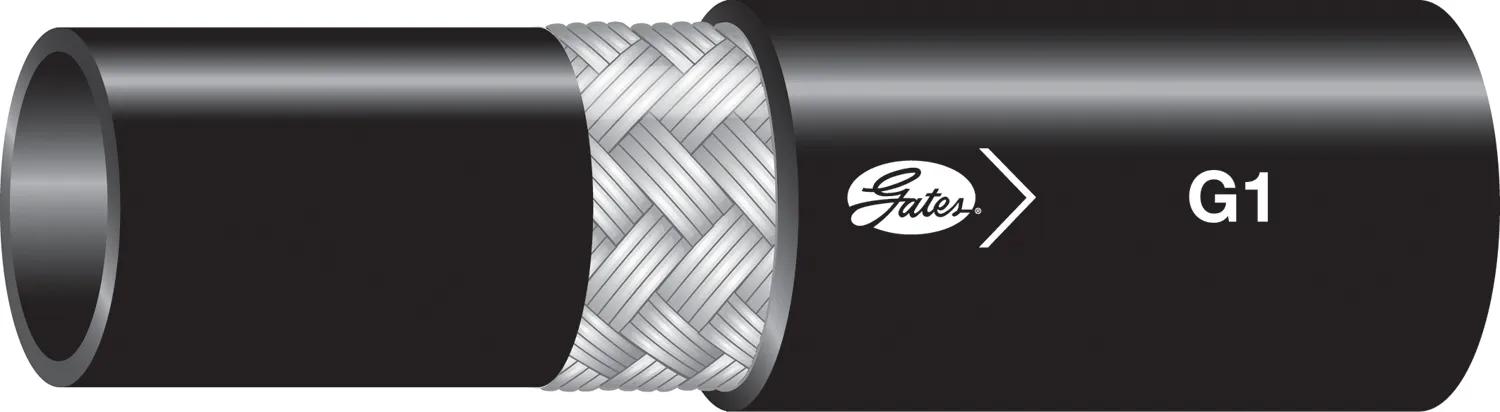

| Type de produit | Global G1 1-Wire Braid Hose - SAE 100R1 Type AT |
| Rayon | 5 in (12.7 cm) |
| Renforcement | One Braid; High-Tensile Steel Wire |
| Standard | SAE 100R1 |
| Plage de température | -40°F @ 212°F (-40°C @ 100°C) |
| Tuyau - Description | Black, Oil-Resistant, Synthetic Rubber |
| Type | Moyenne pression |
Interchanges & Equivalent parts:
| GYHGR1SN-06X250 |
| GR1SN06X250 |
| GR1SN-06X250 |
| GH6636R500 |
| 4216 |
| AX06 |
| AX061000RL |
| 70601 |
| 6G1XREEL |
| FC211-06RL |
| GR1SN06X250RL |
| H10406250R |
| H10406500R |
| H19006250R |
| H19006500R |
| 012756 |
| 12756 |
| 26816 |
| FC21106 |
| FC21106RL |
| GH6636R250 |
| 2681-6 |
| FC211-06 |
| GH663-6R250 |
| GH663-6R500 |
| 4226 |
| 04030084 |
| EC11506 |
| 46570121 |
