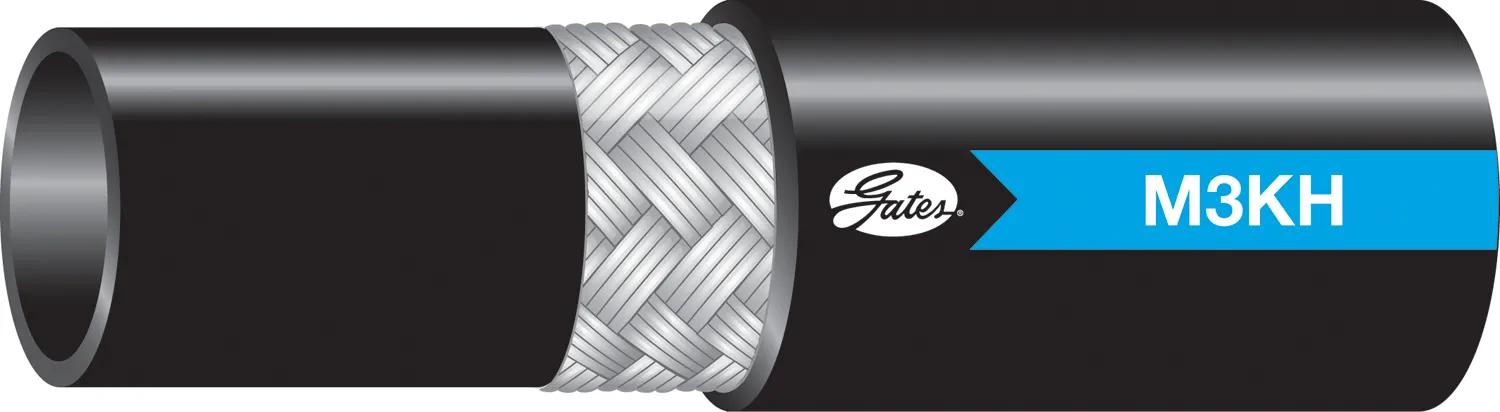

Hydraulic Hose, Le: 50 pi, ID: 5/16 in
#GAT70789
Product Overview
Recommended for High-Pressure Hydraulic Oil Lines. Exceeds SAE 100R17 & ISO11237 R17 Working Pressure, Minimum Bend Radius Requirements & Performance Requirements of EN 857 1SC.
Features & Benefits
- M3K Hose Has Smaller Exterior Dimensions & Significantly Tighter Bend Radius than Other SAE 100R1 & 100R2 Hose. Meets Flame Resistance Acceptance Designation MSHA 2G.
- Temperature Range: -40 Deg F - +250 Deg F (-40 Deg C - +121 Deg C). Recommended Couplings: GlobalSpiral & MegaCrimp.
Specifications
| Color | Black |
| Coupling Recommendation | MegaCrimp |
| Cover Material | Synthetic Rubber - Polychloroprene - Type A - Color Coded Layline |
| Cover Type | Flame, Oil, Abrasion & Weather Resistant |
| Dash Size | 5 |
| Industrial Description | 5M3KHXREEL |
| Inside Diameter 1 (in) | 5/16 in (0.79 cm) |
| Length | 50 ft (15.24 m) |
| Maximum Pressure | 3250 psi (224.08 bar) |
| Minimum Burst Pressure (PSI) | 13000 psi (896.3 bar) |
| Outside Diameter | 19/32 in (1.5 cm) |
| Product Type | Global M3KH Mega3000 Hose - High-Temp - SAE 100R17 |
| Radius | 2-13/64 in (5.59 cm) |
| Reinforcement | One Braid; High-Tensile Steel Wire |
| Standard | SAE 100R17 |
| Temperature Range | -40°F @ 250°F (-40°C @ 121°C) |
| Tube Description | Black, Oil-Resistant, Synthetic Rubber |
| Type | High Pressure |
Interchanges & Equivalent parts:
| 70789 |
| 5M3KHXREEL |
| 04029942 |
| 46574055 |
