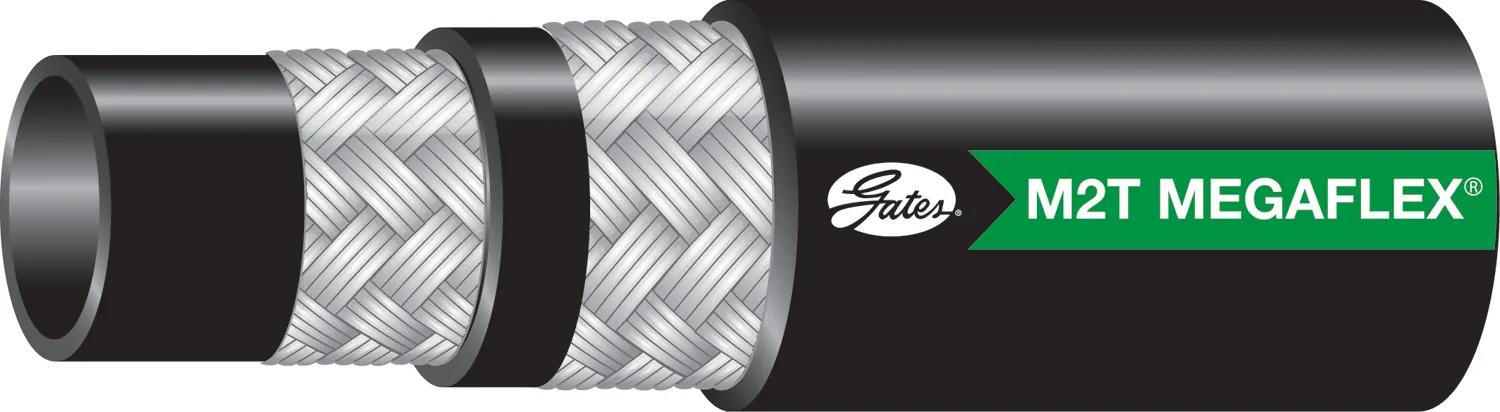

Hydraulic Hose, M2T MegaFlex 2-Wire Braid, 1/4 in ID, 165 ft Length, Black
Product Overview
Recommended for high-pressure hydraulic oil line applications, this M2T™ hose features smaller exterior dimensions and a significantly tighter bend radius than competitive R16 hoses, facilitating easier routing and installation in tight spaces. Compatible with biodegradable hydraulic fluids such as polyolester, polyglycols, vegetable oils, and petroleum-based fluids. Exceeds SAE 100R16, SAE 100R2, ISO 11237 2SC R16, ISO 1436 2SN R2 working pressure and minimum bend radius requirements, as well as performance requirements of EN 857 2SC and EN 853 2SN. Available with XtraTuff™ or MegaTuff™ covers, which offer up to 25 and 300 times longer abrasion resistance respectively, per ISO 6945, along with superior ozone and weathering resistance.Hydraulic Hose, 2-Braid, Wire Reinforcement, Black, Nitrile, PVC Synthetic Rubber Cover, Nitrile Tube, 1-1/2 in Bend Radius, 6000 psi Burst Pressure, 1/4 in ID, 0.56 in OD, EN 853 2SN, EN 857 2SC, ISO 11237 2SC R16, ISO 1436 2SC R16, ISO 1436 2SN R2, SAE 100R16, SAE 100R2 Standards, -40 to 212 °F Temperature Range, 6000 psi Working Pressure, 165 ft Length, For High-Pressure Hydraulic Oil Line
Features & Benefits
- M2T Hose Has Smaller Exterior Dimensions & Significantly Tighter Bend Radius. Meets Flame Resistance Acceptance Designation MSHA 2G.
- Temperature Range: -40 Deg F - +212 Deg F (-40 Deg C - +100 Deg C). Recommended Couplings: GlobalSpiral (Sizes 6 - 16), GlobalSpiral Plus, MegaCrimp & Stainless Steel B (Sizes 4 - 16).
- Recommended For: High-pressure hydraulic oil lines.
- For use with GlobalSpiral™ couplings [G20 Series], GlobalSpiral™ Plus couplings [G22 Series], MegaCrimp™ couplings [G25 Series], Stainless Steel Braid couplings [G17 Series] and stainless steel spiral couplings [G18 Series].
- Provides bend radius up to 1/3 of the SAE specification and greater flexibility for easier routing.
- Tested to industry-leading 600,000 impulse cycles.
- XtraTuff™ hose lasts up to 25 times longer than standard hose.
- MegaTuff™ hose lasts up to 300 times longer than standard hose during hose-to-hose and hose-to-metal abrasion tests per ISO 6945 and offers superior ozone and weathering resistance.
- Tighter bend radius reducing hose assembly length to save money.
- Validated with MegaCrimp™.
Specifications
| Application | Conduite d'huile hydraulique à haute pression |
| Pression d'éclatement | 6000 psi |
| Couleur | Noir |
| Recommandation d'accouplement | MegaCrimp, acier inoxydable B |
| Matériau du couvercle | Caoutchouc synthétique - Nitrile modifié - Type C2 - Ligne de pose à code couleur |
| Type de housse | Type C2 - Résistant aux flammes, à l'huile, à l'abrasion et aux intempéries |
| Dash Size | 4 |
| Industrial Description | 4M2TXREEL |
| Inside Diameter | 1/4 po |
| Length | 165 pi |
| Maximum Pressure | 6000 psi (413,68 bar) |
| Minimum Burst Pressure (PSI) | 24000 psi (1654,72 bar) |
| Outside Diameter | 9/16 po |
| Product Type | Tuyau tressé à 2 fils M2T MegaFlex - SAE 100R16 |
| Reinforcement | Deux tresses ; Fil d'acier à haute résistance |
| Temperature Range | -40°F à 212°F (-40°C à 100°C) |
| Tube Description | Caoutchouc synthétique noir, résistant à l'huile |
| Type | Haute pression |
| UPC | 742330975015 |
| Working Pressure | 6000 psi |
| Bend Radius | 1-1/2 po |
| Reinforcement Type | 2-Braid, Wire |
| Standards | EN 853 2SN, EN 857 2SC, ISO 11237 2SC R16, ISO 1436 2SC R16, ISO 1436 2SN R2, SAE 100R16, SAE 100R2 |
| Tube Material | Nitrile |
| Product Category | Tuyau hydraulique |
Interchanges & Equivalent parts:
| GYHGR16SC04X250 |
| GR16SC04X250 |
| GR1604X250RL |
| GR1604X50 |
| GR1604X50BX |
| H24504250R |
| H24504500R |
| H28004250R |
| H28004500R |
| H29004250R |
| H29004500R |
| 010254A |
| 011454 |
| 11454 |
| FC31004 |
| FC31004RL |
| 4314 |
| 4314BX |
| 4314RL |
| 4M2TXREEL |
| 4314RL250 |
| 70390 |
| 46571552 |
| FC310-04 |
| FC310-04RL |
| H29004 |
| FC64004RL |
| GH7814R250 |
| GH7814R500 |
| GH7814RC100 |
| 04029952 |
| EC21504 |
