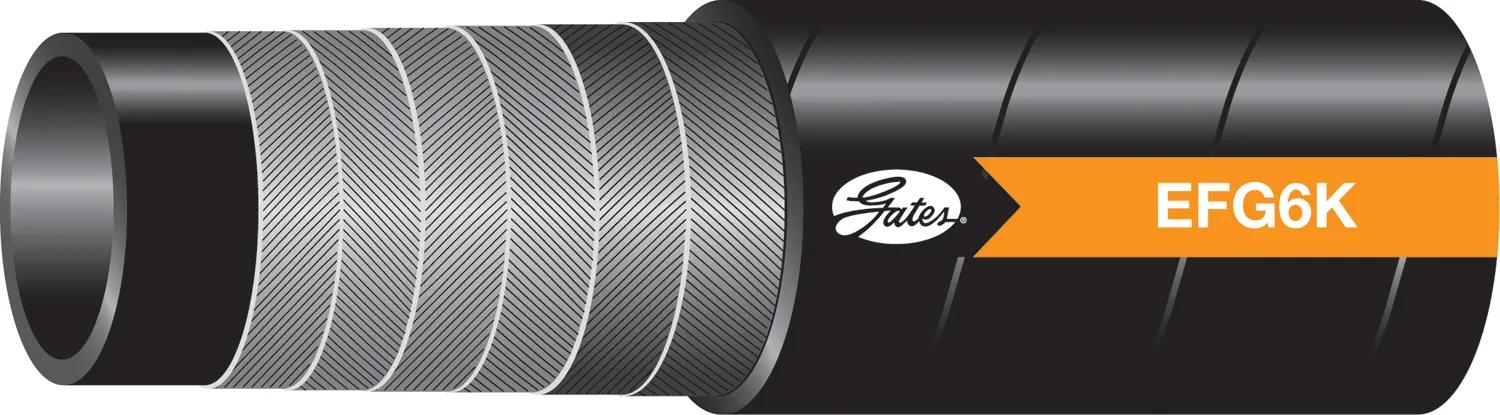

Hydraulic Hose, Nitrile Tube, Black, 1 in ID, 1-17/32 in OD, 275 ft Length, GlobalSpiral
Product Overview
EFG6K hydraulic hose is recommended for extremely high-pressure, high-impulse applications such as hydrostatic transmissions. Compatible with biodegradable hydraulic fluids like polyolester, polyglycol, vegetable oil, and standard petroleum-based fluids. Designed to meet or exceed SAE 100R15 specifications and performance requirements of EN 856 4SP (sizes 6, 8, 10, 12), EN 856 4SH (sizes 12, 16, 20), and ISO 3862 Type R15 (sizes 6, 8, 10, 12, 16, 24). Meets Flame Resistance Acceptance Designation MSHA 2G. Recommended couplings include GlobalSpiral™, GlobalSpiral MAX Pressure, and Stainless Steel S (sizes 6 through 20).Hydraulic Hose, 4-Spiral, Wire Reinforcement, Black, Polychloroprene Cover, Nitrile Tube, 6 in Bend Radius, 6000 psi Burst Pressure, 1 in ID, 1.53 in OD, EN 856 4SP/4SH, ISO 3862 R15, SAE 100R15 Standards, -40 to 250 °F Temperature Range, 6000 psi Working Pressure, 275 ft Length, For Extremely High Pressure and High Impulse Hydraulic
Features & Benefits
- Compatible w/ Biodegradable Hydraulic Fluids like Polyolester, Polyglycol & Vegetable Oil as Well as Standard Petroleum-Based Fluids. Meets Flame Resistance Acceptance Designation MSHA 2G.
- EFG6K is Designed to Meet or Exceed All Requirements of SAE 100R15 Specifications & Performance Requirements of EN 856 4SP (Sizes 6, 8, 10 & 12), EN 856 4SH (Sizes 12, 16 & 20), and ISO 3862 Type R15 (Sizes 6, 8, 10, 12, 16 & 24).
- Temperature Range: -40 Deg F - +250 Deg F (-40 Deg C - +121 Deg C). Recommended Couplings: GlobalSpiral, GlobalSpiral MAX Pressure & Stainless Steel S (Sizes 6 - 20).
- The optional MegaTuff™ cover lasts up to 300 times longer than standard hose during hose-to-hose and hose-to-metal abrasion tests per ISO 6945 and offers superior ozone and weathering resistance.
- For use with GlobalSpiral™ couplings [G20 Series], GlobalSpiral Max pressure couplings [G23 and G24 Series] and stainless steel spiral couplings [G18 Series].
- Superior flex impulse performance: Tested to 1,000,000 impulse cycles at 50% of SAE 100R15 bend radii (except -32).
- EFG6K MegaSpiral™ is rated at 1/2 bend radius of SAE 100R15.
- 6000 PSI constant pressure for all inside diameters.
- -6 to -20 validated with GlobalSpiral™; -24, -32 with GlobalSpiral™ maximum.
- Up to 40% of EN 856 4SP/4SH bend radius at rated working pressure.
Specifications
| Application | Hydraulique à très haute pression et à fortes impulsions |
| Pression d'éclatement | 6000 psi |
| Couleur | Noir |
| Recommandation d'accouplement | GlobalSpiral, Acier inoxydable S |
| Matériau du couvercle | Caoutchouc synthétique - Polychloroprène - Type A - Ligne de pose à code couleur |
| Type de housse | Type A - Résistant aux flammes et à l'huile |
| Dash Size | 16 |
| Description industrielle | 16EFG6KXCTN |
| Diamètre intérieur | 1 po |
| Diam. intérieur 1 (po) | 1 po |
| Longueur | 275 pi |
| Pression maximale | 6000 psi (413,68 bar) |
| Pression minimale d'éclatement (PSI) | 24000 psi (1654,72 bar) |
| Diamètre extérieur | 1-17/32 po |
| Type de produit | Tuyau à spirale EFG6K - SAE 100R15 |
| Rayon | 6 po |
| Renforcement | Quatre couches alternées de fil d'acier à haute résistance spiralé |
| Standard | SAE 100R15 |
| Temperature Range | -40°F à 250°F (-40°C à 121°C) |
| Tube Description | Caoutchouc synthétique noir, résistant à l'huile |
| Type | Tuyau à très haute pression |
| UPC | 072053543520 |
| Working Pressure | 6000 psi |
| Bend Radius | 6 po |
| Reinforcement Type | 4-Spiral, Wire |
| Standards | EN 856 4SP/4SH, ISO 3862 R15, SAE 100R15 |
| Tube Material | Nitrile |
| Product Category | Tuyau hydraulique |
Interchanges & Equivalent parts:
| G4SH16X100CL |
| G4SP16X100 |
| G4SP16X100CL |
| GR1516X100CL |
| H46416100 |
| H48516100 |
| H48516150 |
| H48716150 |
| FC60616 |
| 73116 |
| 70330 |
| 70836 |
| 16EFG6KXCTN |
| FC606-16 |
| SR1516 |
| HSH16A |
| H46416 |
| H85016 |
| HT616 |
| N216 |
| N316 |
| EC60016 |
| FC25416 |
| 513016 |
| GH50616 |
| 79716 |
| 04029630 |
| 515016 |
| 46511289 |
