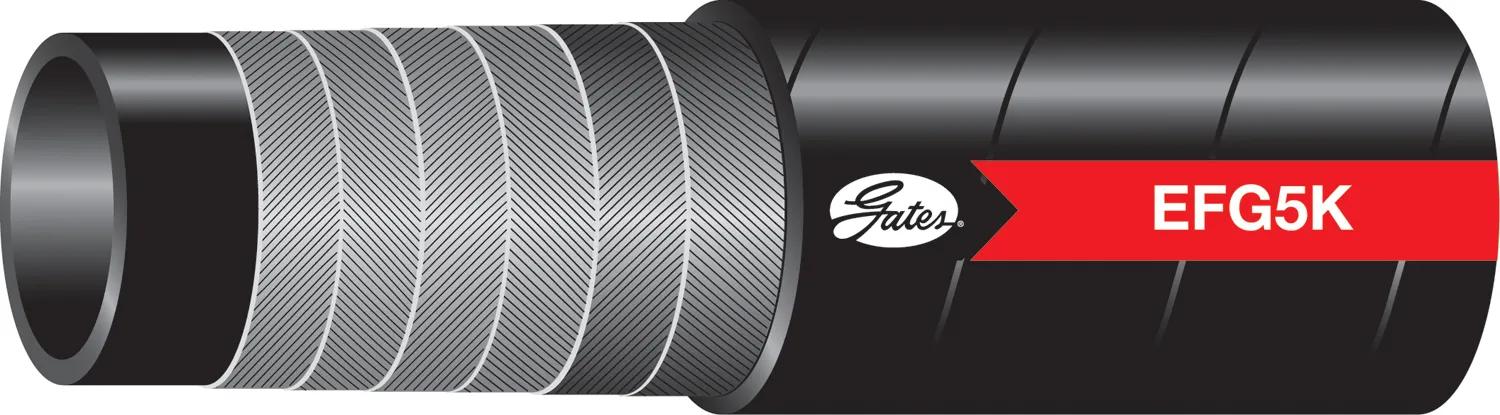

Hydraulic Hose, Nitrile Tube, Black, 1 in ID, 1.53 in OD, 50 ft Length
Product Overview
EFG5K hose is recommended for extremely high pressure and high impulse hydraulic applications. It is designed to meet or exceed all requirements of SAE 100R13, ISO 3862 R13, and performance requirements of EN 856 4SP (-10 to -32), EN 856 4SH (-20 to -32), and ISO 18752. Compatible with biodegradable hydraulic fluids such as polyolester, polyglycol, and vegetable oil, as well as standard petroleum-based fluids. Meets Flame Resistance Acceptance Designation MSHA 2G.Hydraulic Hose, 4-Spiral, Wire Reinforcement, Black, Polychloroprene Cover, Nitrile Tube, 6 in Bend Radius, 5000 psi Burst Pressure, 1 in ID, 1.53 in OD, EN 856 4SP/4SH, EN 856 R13, ISO 18752, ISO 3862 R13, SAE 100R13 Standards, -40 to 250 °F Temperature Range, 5000 psi Working Pressure, 50 ft Length, For Extremely High Pressure and High Impulse Hydraulic
Features & Benefits
- Compatible w/ Biodegradable Hydraulic Fluids like Polyolester, Polyglycol & Vegetable Oil as Well as Standard Petroleum-Based Fluids. Meets Flame Resistance Acceptance Designation MSHA 2G.
- EFG5K is Designed to Meet or Exceed All Requirements of SAE 100R13 Specifications & Performance Requirements of EN 856 4SH (Sizes 16 & 20), EN 856 4SP (Sizes 10 & 12), EN 856 R13 & ISO 3862 Type R13 (Sizes 12, 16, 20, 24 & 32).
- Temperature Range: -40 Deg F - +250 Deg F (-40 Deg C - +121 Deg C). Recommended Couplings: GlobalSpiral, GlobalSpiral MAX Pressure & Stainless Steel S.
- The optional MegaTuff™ cover lasts up to 300 times longer than standard hose during hose-to-hose and hose-to-metal abrasion tests per ISO 6945 and offers superior ozone and weathering resistance.
- The optional XtraTuff™ cover lasts up to 25 times longer than standard hose.
- For use with GlobalSpiral™ couplings [G20 Series], GlobalSpiral Max [G23 and G24 Series] and stainless steel spiral couplings [G18 Series].
- Superior flex impulse performance: Tested to 1,000,000 impulse cycles at 50% of EN 856 R13 and SAE 100R13 bend radii (except -32).
- Up to 40% of EN 856 4SP/4SH bend radius at rated working pressure.
- EFG5K MegaSpiral™ is rated at 1/2 bend radius of SAE 100R13.
- 5000 PSI constant pressure for all inside diameters.
Specifications
| Application | Extremely High Pressure and High Impulse Hydraulic |
| Burst Pressure | 5000 psi |
| Color | Black |
| Coupling Recommendation | GlobalSpiral, Stainless Steel S |
| Cover Material | Synthetic Rubber - Polychloroprene - Type A - Color Coded Layline |
| Cover Type | Type A - Flame & Oil Resistant |
| Dash Size | 16 |
| Industrial Description | 16EFG5KXCTN |
| Inside Diameter | 1 in |
| Length | 50 ft |
| Maximum Pressure | 5000 psi (344.73 bar) |
| Minimum Burst Pressure (PSI) | 20000 psi (1378.93 bar) |
| Outside Diameter | 1-17/32 in |
| Product Type | EFG5K Spiral Wire Hose - SAE 100R13 |
| Radius | 6 in |
| Reinforcement | Four Alternating Layers of Spiraled, High-Tensile Steel Wire |
| Standard | SAE 100R13 |
| Temperature Range | -40°F @ 250°F (-40°C @ 121°C) |
| Tube Description | Black, Oil-Resistant, Synthetic Rubber |
| Type | Extremely High Pressure Hose |
| UPC | 072053543483 |
| Working Pressure | 5000 psi |
| Bend Radius | 6 in |
| Reinforcement Type | 4-Spiral, Wire |
| Standards | EN 856 4SP/4SH, EN 856 R13, ISO 18752, ISO 3862 R13, SAE 100R13 |
| Tube Material | Nitrile |
| Product Category | Hydraulic Hose |
| Quantity | 100 |
Interchanges & Equivalent parts:
| GR1316X100CL |
| GR1516X100 |
| H43016100 |
| H47016100 |
| 40316 |
| FC25416 |
| FC27316 |
| 78116 |
| 70333 |
| 70834 |
| 16EFG5KXCTN |
| R13A16 |
| 4SH16 |
| 4SP16 |
| SR1316 |
| H1316A |
| H47016 |
| 78C16 |
| N616 |
| NH16 |
| 78716 |
| 04029671 |
| EC42016 |
| 46511286 |
