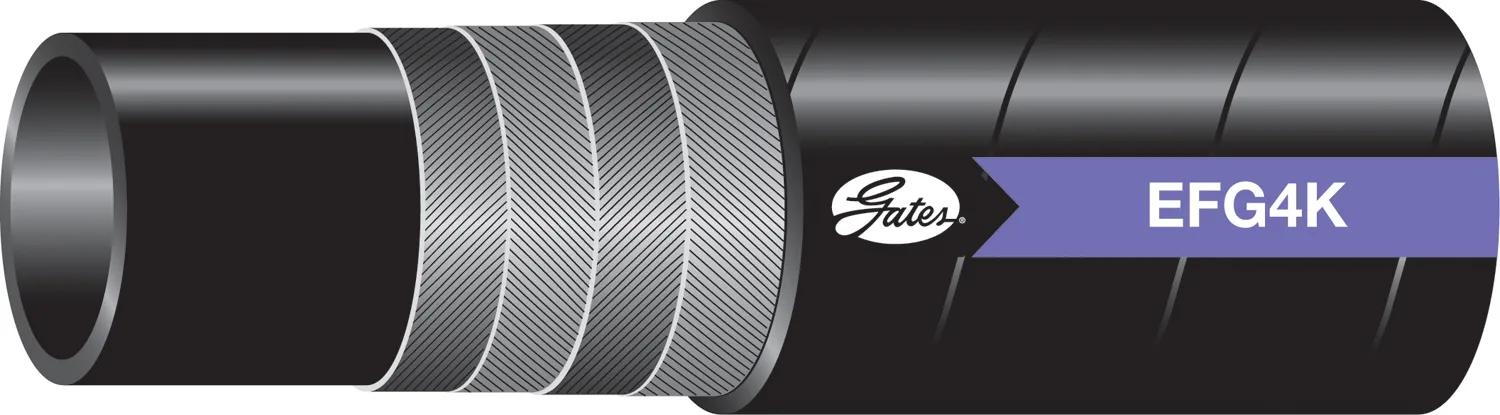

Hydraulic Hose, Nitrile Tube, Black, 3/4 in ID, 550 ft Length, 1.21 in OD, Very High Pressure
Product Overview
Recommended for extremely high-pressure, high-impulse hydraulic applications. Exceeds all performance requirements for SAE 100R12, EN 856 R12, ISO 3862 Type R12, and ISO 18752 Grade D. Compatible with biodegradable hydraulic fluids such as polyolester, polyglycol, and vegetable oil, as well as standard petroleum-based fluids. Features superior flex impulse performance, tested to 1,000,000 impulse cycles at 50% of EN 856 R12 and SAE 100R12 bend radii.Hydraulic Hose, 4-Spiral, Wire Reinforcement, Black, Polychloroprene Cover, Nitrile Tube, 4.7 in Bend Radius, 4000 psi Burst Pressure, 3/4 in ID, 1.21 in OD, EN 856 R12, ISO 18752, ISO 3862 R12, SAE 100R12 Standards, -40 to 250 °F Temperature Range, 4000 psi Working Pressure, 550 ft Length, For Very High-Pressure, High Impulse Hydraulic
Features & Benefits
- Compatible w/ Biodegradable Hydraulic Fluids like Polyolester, Polyglycol & Vegetable Oil as Well as Standard Petroleum-Based Fluids. Meets Flame Resistance Acceptance Designation MSHA 2G.
- Temperature Range: -40 Deg F - +250 Deg F (-40 Deg C - +121 Deg C). Recommended Couplings: GlobalSpiral, Special One-Piece (MC4-20 Crimper Only) (Size 20) & Stainless Steel S.
- The optional MegaTuff™ cover lasts up to 300 times longer than standard hose during hose-to-hose and hose-to-metal abrasion tests per ISO 6945 and offers superior ozone and weathering resistance.
- The optional XtraTuff™ cover lasts up to 25 times longer than standard hose.
- For use with GlobalSpiral™ couplings [G20 Series], GlobalSpiral one-piece couplings [G21 Series, -20 Only] and stainless steel spiral couplings [G18 Series].
- Superior flex impulse performance: Tested to 1,000,000 impulse cycles at 50% of EN 856 R12 and SAE 100R12 bend radii.
- Meets or exceeds performance requirements of EN 856 4SP (-16, -20).
- EFG4K MegaSpiral™ is rated at 1/2 bend radius of SAE 100R12.
- Most flexible EN 856 R12 / SAE 100R12 hose in the industry.
- 40% of EN 856 4SP bend radius at rated working pressure.
- 4000 psi constant pressure for all ID's, Validated with GlobalSpiral™.
Specifications
| Application | Hydraulic Fluid |
| Burst Pressure | 16000 psi (1103.14 bar) |
| Color | Black |
| Coupling Recommendation | GlobalSpiral, Stainless Steel S |
| Cover Material | Synthetic Rubber - Polychloroprene - Type A - Color Coded Layline |
| Cover Type | Type A - Flame & Oil Resistant |
| Dash Size | 12 |
| Industrial Description | 12EFG4KXREEL |
| Inside Diameter | 3/4 in |
| Length | 550 ft |
| Maximum Pressure | 4000 psi (275.79 bar) |
| Outside Diameter | 1.21 in |
| Product Type | EFG4K Spiral Wire Hose - SAE 100R12 |
| Reinforcement | Four Alternating Layers of Spiraled, High-Tensile Steel Wire |
| Temperature Range | -40°F to 250°F (-40°C to 121°C) |
| Tube Description | Black, Oil-Resistant, Synthetic Rubber - Nitrile |
| Type | Very High Pressure |
| UPC | 742330975022 |
| Working Pressure | 4000 psi |
| Bend Radius | 4.7 in |
| Reinforcement Type | 4-Spiral, Wire |
| Standards | SAE 100R12, EN 856 R12, ISO 3862 Type R12, ISO 18752 Grade D |
| Tube Material | Nitrile |
| Product Category | Hydraulic Hose |
Interchanges & Equivalent parts:
| 12EFG4KXREEL |
| 70166 |
| FC13612RL |
| FC65912RL |
| 925007505 |
| 46510126 |
