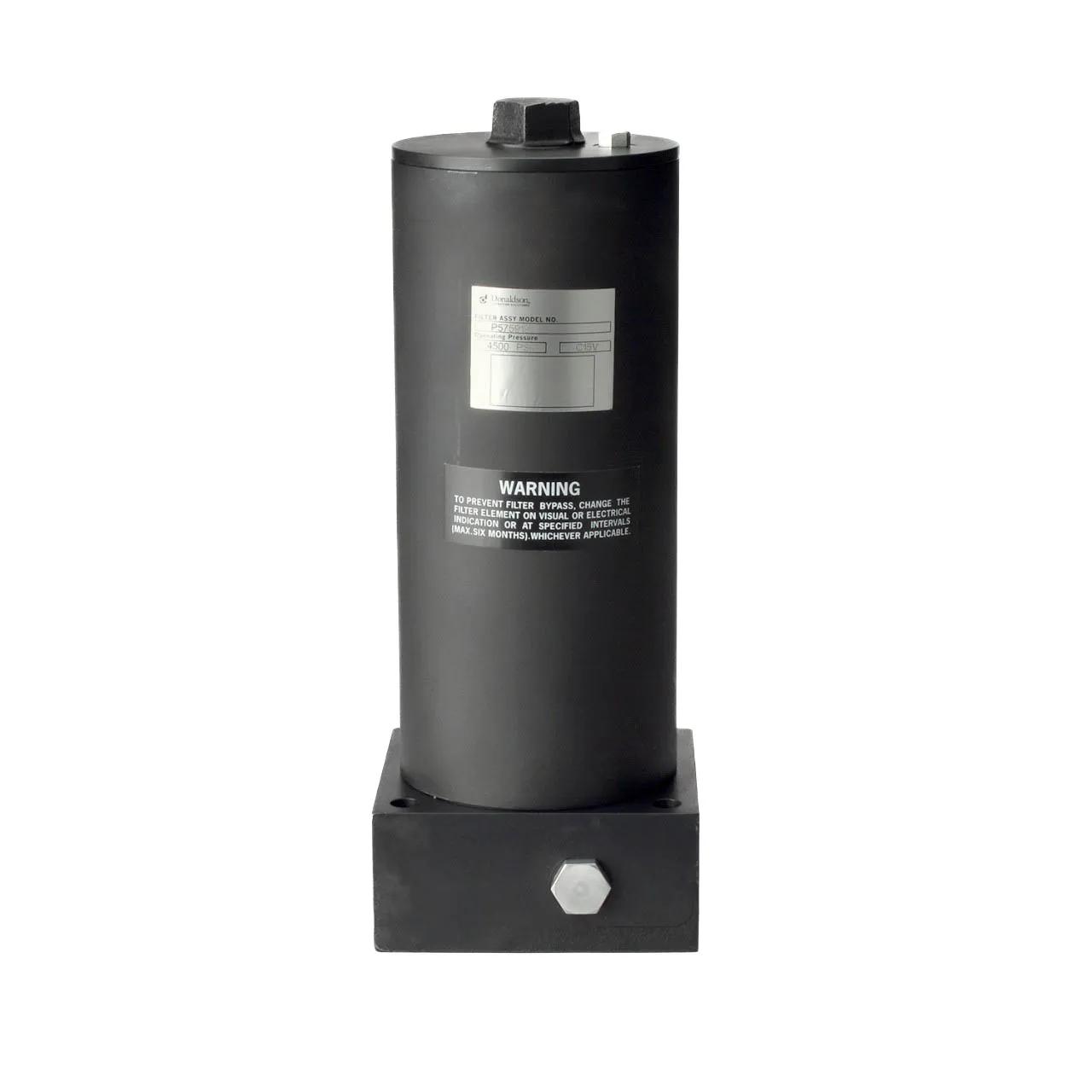

HYDRAULIC HOUSING L: 5,75 in, OD: 1 1/2 SAE 4 Bolt CDEe 61 , ID: 1 1/2 SAE 4 Bolt Code 61
#DONP575919
Features & Benefits
- Donaldson offers the industry’s largest selection of hydraulic, lube and gear oil filtration products for contamination control.
- Donaldson hydraulic filters and accessories reduce a broad range of contaminants, providing superior performance in thousands of applications.
- Products and technology designed to consistently meet required specifications - and your expectations.
Specifications
| Bypass Valve | Yes |
| Bypass Valve Setting HR | 6.2 bar |
| Efficiency 95% | 17 Micron |
| Efficiency Beta 20 | 40 Micron |
| Efficiency Beta 20 (Micron) | 40 Micron |
| Family | W451 |
| Height | 15-5/16 in (38.89 cm) |
| Inlet Diameter | 1-21/32 in (4.22 cm) |
| Inlet Size | 1 1/2 SAE 4 BOLT CODE 61 |
| Length | 5-3/4 in (14.61 cm) |
| Outer Diameter | 1 1/2 SAE 4 Bolt Code 61 |
| Outlet Diameter | 2.48 in (63 mm) |
| Outlet Size | 1 1/2 SAE 4 BOLT CODE 61 |
| Series | W451 |
| Length Range | 5 to 5.99 in |
| Width | 6-3/8 in (16.21 cm) |
Interchanges & Equivalent parts:
| P575919 |
| W4511E6JNV3 |
