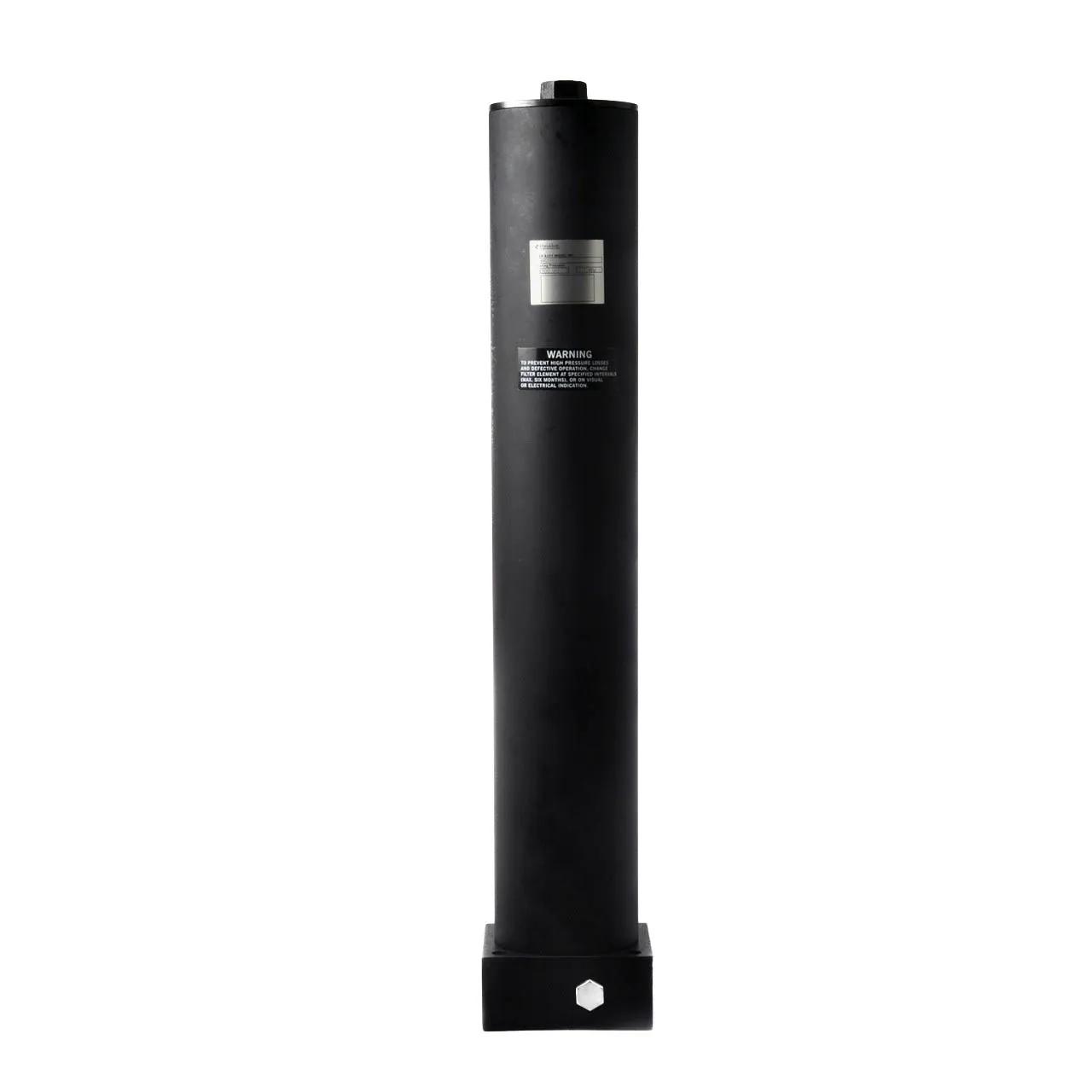

HYDRAULIC HOUSING L: 5,75 in, OD: SAE-24
#DONP575916
Features & Benefits
- Donaldson offers the industry’s largest selection of hydraulic, lube and gear oil filtration products for contamination control.
- Donaldson hydraulic filters and accessories reduce a broad range of contaminants, providing superior performance in thousands of applications.
- Products and technology designed to consistently meet required specifications - and your expectations.
Specifications
| Bypass Valve | No |
| Efficiency Beta 20 | 10 Micron |
| Efficiency Beta 20 (Micron) | 10 Micron |
| Family | W451 |
| Height | 34-1/64 in (86.41 cm) |
| Inlet Size | SAE-24 |
| Length | 5-3/4 in (14.61 cm) |
| Outer Diameter | SAE-24 |
| Outlet Diameter | 2.52 in (64.01 mm) |
| Outlet Size | SAE-24 |
| Series | W451 |
| Length Range | 5 to 5.99 in |
| Width | 6-3/8 in (16.21 cm) |
Interchanges & Equivalent parts:
| P575916 |
| W4514D1JNV7 |
