2 POINTS

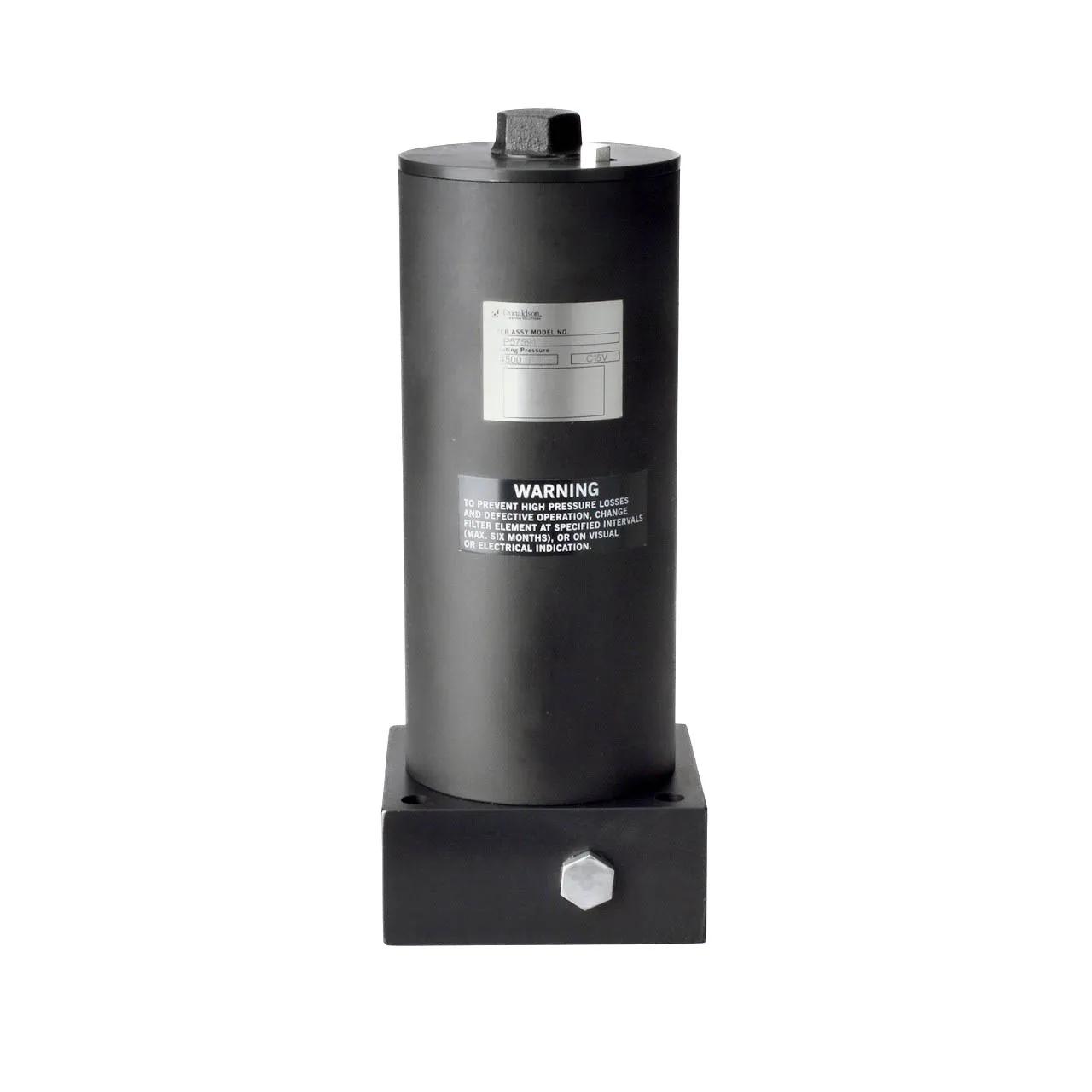

Hydraulic Housing L: 5,75 in, OD: SAE-24
#DONP575917
Features & Benefits
- Donaldson offers the industry’s largest selection of hydraulic, lube and gear oil filtration products for contamination control.
- Donaldson hydraulic filters and accessories reduce a broad range of contaminants, providing superior performance in thousands of applications.
- Products and technology designed to consistently meet required specifications - and your expectations.
Specifications
| Bypass Valve | No |
| Bypass Valve Setting HR | 3 bar |
| Efficiency 95% | 12 Micron |
| Efficiency Beta 20 | 10 Micron |
| Efficiency Beta 20 (Micron) | 10 Micron |
| Efficiency Beta 75 | 50 Micron |
| Family | W451 |
| Height | 15-5/16 in |
| Inlet Diameter | 1-21/32 in |
| Inlet Size | SAE-24 |
| Length | 5-3/4 in |
| Media Brand | Synteq XP™ |
| Minimum Operating Temperature (Deg F) | 40 °F |
| Outer Diameter | SAE-24 |
| Outlet Diameter | 1.42 in (36 mm) |
| Outlet Size | SAE-24 |
| Series | W451 |
| Length Range | 5 to 5.99 in |
| Temperature Range | -40 to 250°F / -40 to 121°C |
| Water Capacity | 180 ml |
| Width | 6-3/8 in |
| Overall Width | 2.656 in |
Interchanges & Equivalent parts:
| P575917 |
| W4514D1JNV3 |
