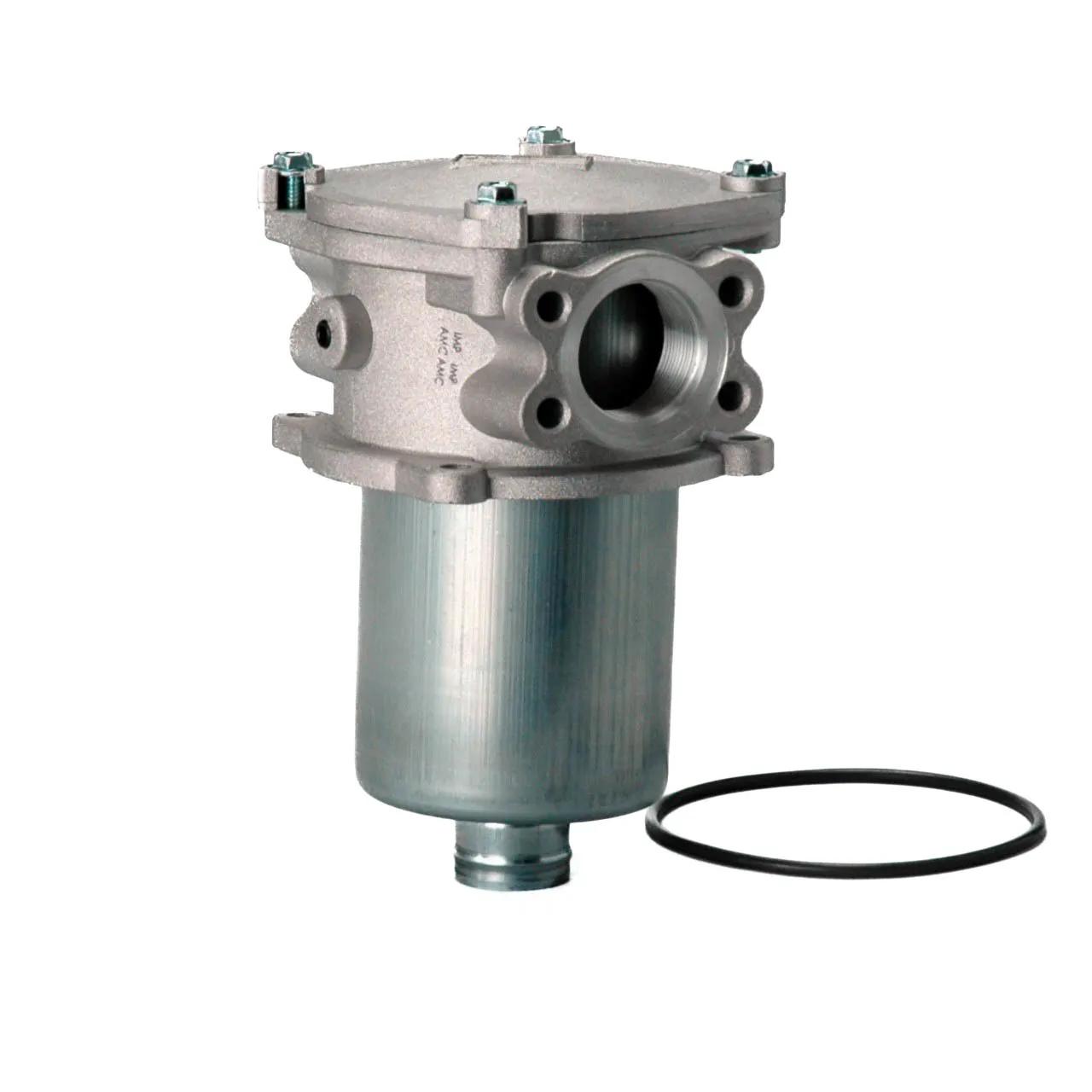

HYDRAULIC HOUSING OD: 1,5 in
#DONP574231
Features & Benefits
- Donaldson offers the industry’s largest selection of hydraulic, lube and gear oil filtration products for contamination control.
- Donaldson hydraulic filters and accessories reduce a broad range of contaminants, providing superior performance in thousands of applications.
- Products and technology designed to consistently meet required specifications - and your expectations.
Specifications
| Bypass Valve | Yes |
| Bypass Valve Setting LR | 24.66 psi (1.7 bar) |
| Diameter Range | 1 to 1.99 in |
| Efficiency 95% | 10 Micron |
| Efficiency Beta 1000 (Micron) | 13 Micron |
| Efficiency Beta 20 | 10 Micron |
| Efficiency Beta 20 (Micron) | 10 Micron |
| Inlet Diameter | 1-21/32 in (4.22 cm) |
| Inlet Size | SAE-24 |
| Outlet Diameter | 1.5 in (38.1 mm) |
| Overall Length | 12.76 in (324.2 mm) |
| Primary Application | RACOR 2020V10 |
| Series | WL15 |
| Water Capacity | 250 ml |
Interchanges & Equivalent parts:
| P574231 |
| WL151D31NB3 |
