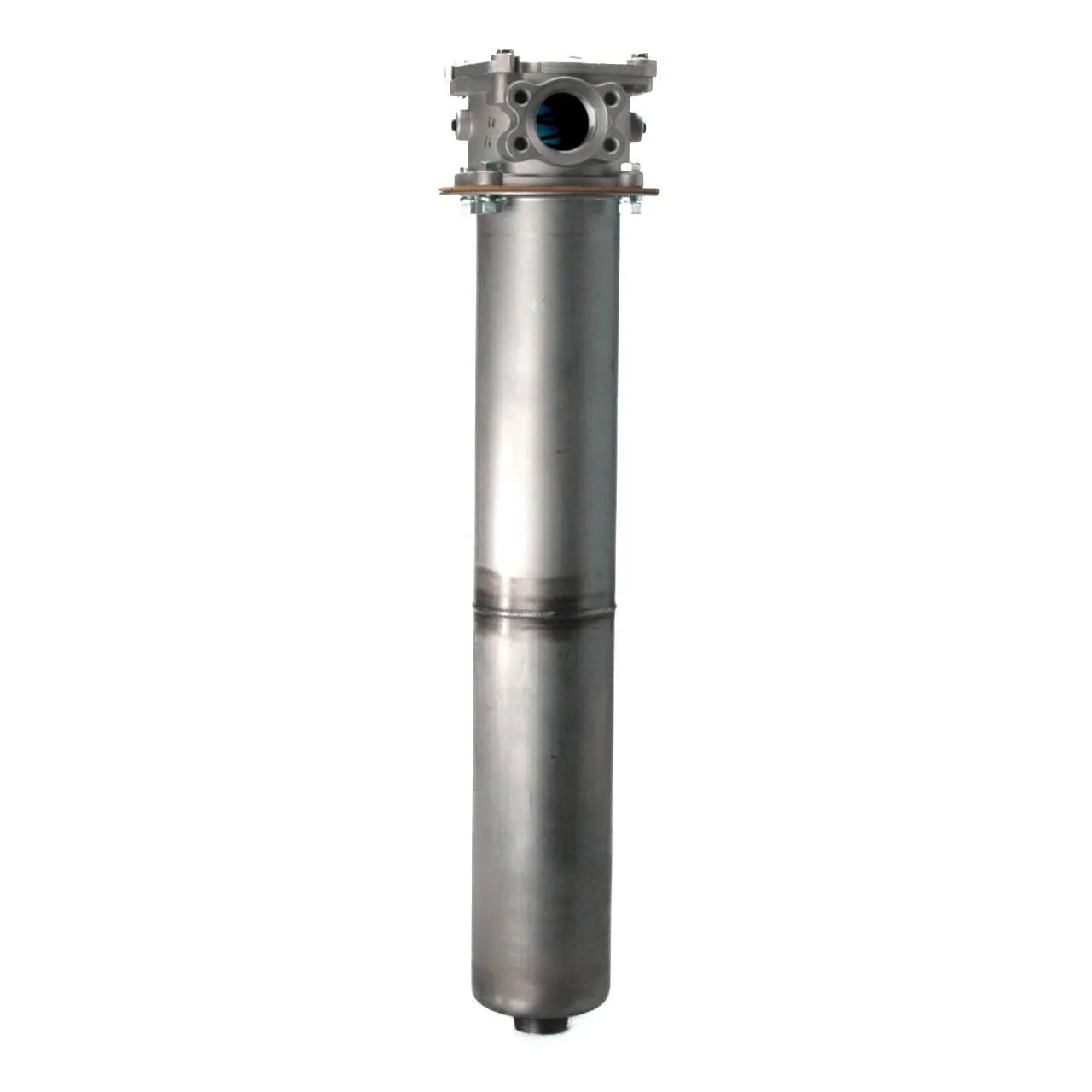

Hydraulic Housing
#DONP574234
Product Overview
HYDRAULIC FILTER ASSEMBLY
Features & Benefits
- Donaldson offers the industry’s largest selection of hydraulic, lube and gear oil filtration products for contamination control.
- Donaldson hydraulic filters and accessories reduce a broad range of contaminants, providing superior performance in thousands of applications.
- Products and technology designed to consistently meet required specifications - and your expectations.
Specifications
| Bypass Valve | Yes |
| Bypass Valve Setting LR | 24.66 psi |
| Efficiency Beta 20 | 40 Micron |
| Efficiency Beta 2000 (Micron) | 8 Micron |
| Efficiency Beta 200 (Micron) | 32 Micron |
| Efficiency Beta 20 (Micron) | 40 Micron |
| Inlet Size | SAE-24 |
| Outer Diameter | 1 1/2 NPT |
| Outlet Diameter | 2.52 in |
| Outlet Size | 1 1/2 NPT |
| Overall Length | 31.89 in |
| Series | WL16 |
| Water Capacity | 300 ml |
Interchanges & Equivalent parts:
| P574234 |
| WL161D31DB7 |
