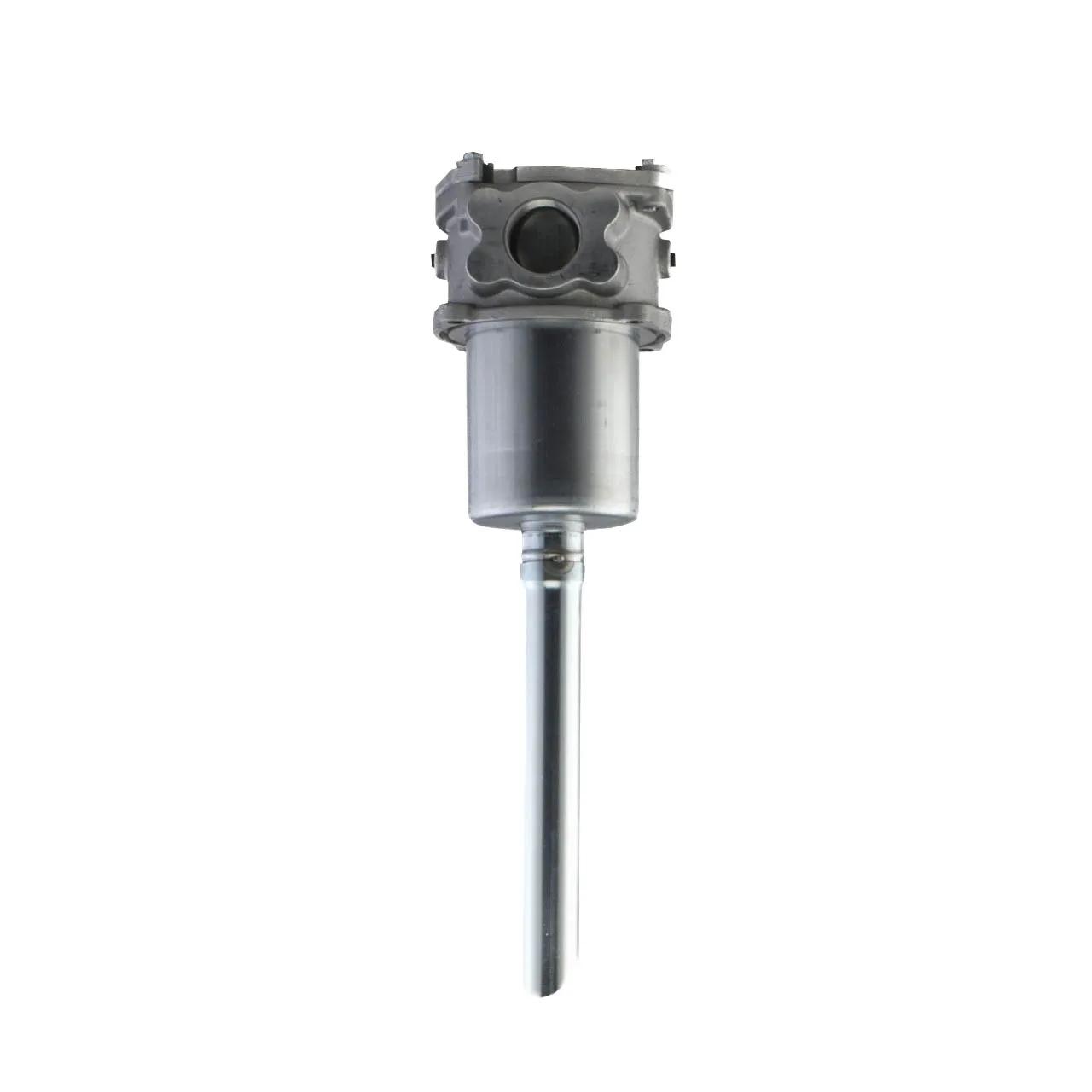

HYDRAULIC HOUSING
#DONP575924
Features & Benefits
- Donaldson offers the industry’s largest selection of hydraulic, lube and gear oil filtration products for contamination control.
- Donaldson hydraulic filters and accessories reduce a broad range of contaminants, providing superior performance in thousands of applications.
- Products and technology designed to consistently meet required specifications - and your expectations.
Specifications
| Bypass Valve | Yes |
| Bypass Valve Setting HR | 1.72 bar |
| Diameter Range | 1 to 1.99 in |
| Efficiency Beta 20 | 4 Micron |
| Efficiency Beta 200 (Micron) | 4 Micron |
| Efficiency Beta 20 (Micron) | 4 Micron |
| Family | WL15 |
| Height | 24-7/8 in (63.2 cm) |
| Inlet Diameter | 1-21/32 in (4.22 cm) |
| Inlet Size | SAE-24 |
| Length | 6-45/64 in (17.02 cm) |
| Outlet Diameter | 1.5 in (38.1 mm) |
| Series | WL15 |
| Length Range | 6 to 6.99 in |
| Width | 6 in (15.24 cm) |
Interchanges & Equivalent parts:
| P575924 |
