2 POINTS

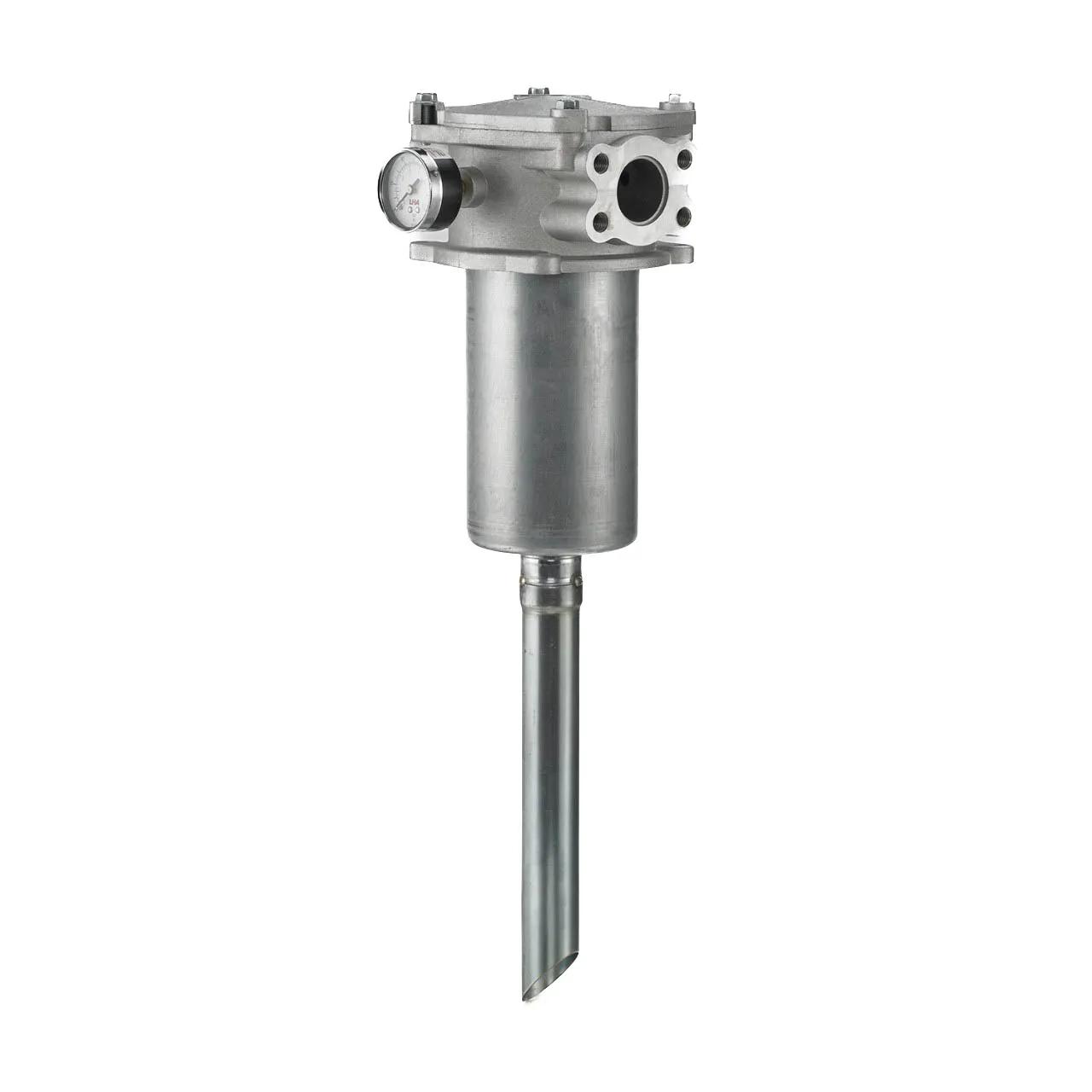

HYDRAULIC HOUSING
#DONP575925
Caractéristiques et avantages
- Donaldson offers the industry’s largest selection of hydraulic, lube and gear oil filtration products for contamination control.
- Donaldson hydraulic filters and accessories reduce a broad range of contaminants, providing superior performance in thousands of applications.
- Products and technology designed to consistently meet required specifications - and your expectations.
Spécifications
| Bypass Valve | Yes |
| Bypass Valve Setting HR | 3.45 bar |
| Diameter Range | 1 to 1.99 in |
| Family | WL15 |
| Height | 24-7/8 in |
| Inlet Size | 1 1/2 SAE 4 BOLT CODE 61 |
| Length | 6-45/64 in |
| Media Brand | Synteq XP™ |
| Outlet Diameter | 1.5 in (38.1 mm) |
| Series | WL15 |
| Length Range | 6 to 6.99 in |
| Temperature Range | -40 to 250°F / -40 to 121°C |
| Width | 6 in |
Interchanges et pièces équivalentes:
| P575925 |
