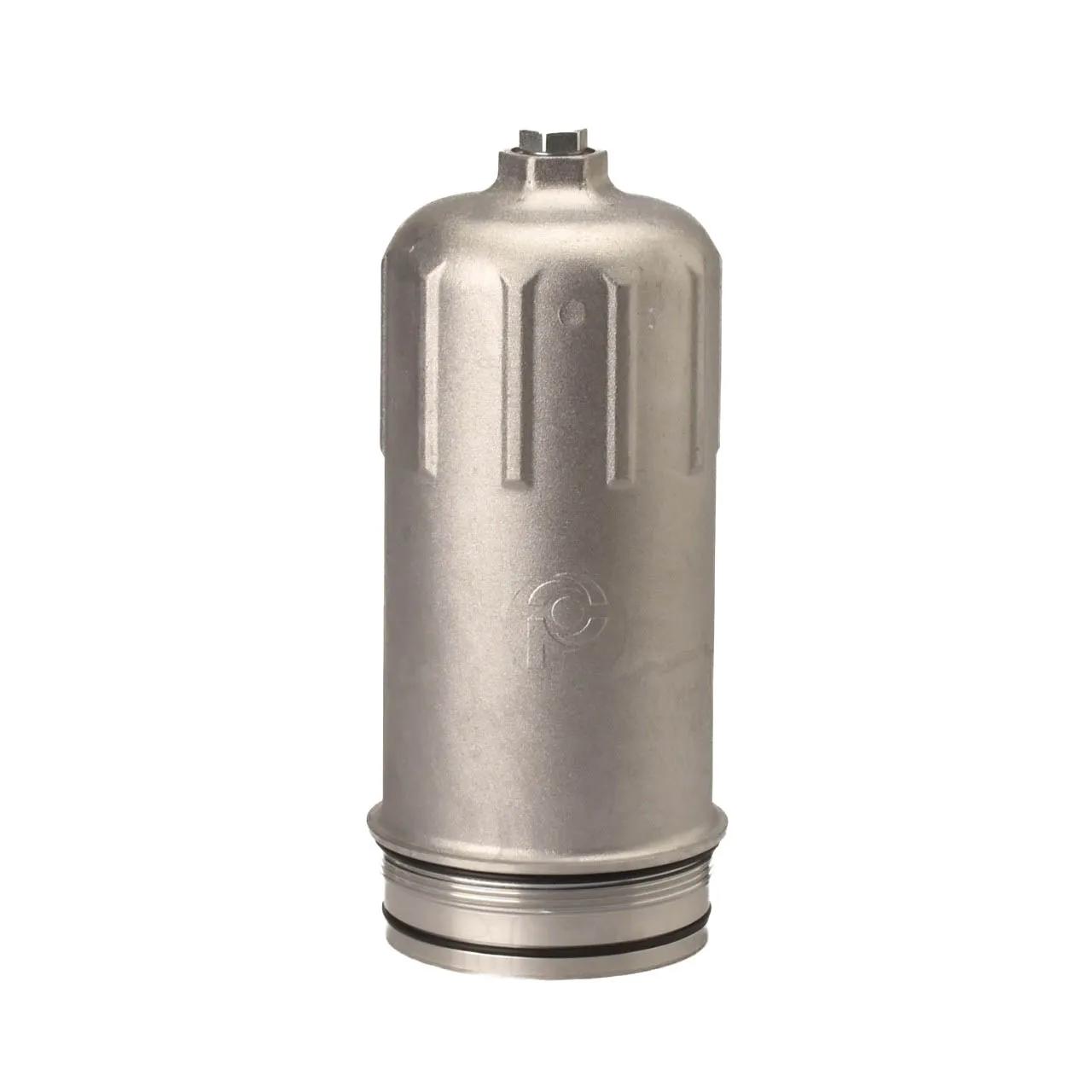

HYDRAULIC HOUSING
#DONP766961
Features & Benefits
- Donaldson offers the industry’s largest selection of hydraulic, lube and gear oil filtration products for contamination control.
- Donaldson hydraulic filters and accessories reduce a broad range of contaminants, providing superior performance in thousands of applications.
- Products and technology designed to consistently meet required specifications - and your expectations.
Specifications
| Bypass Valve | Yes |
| Bypass Valve Setting LR | 5.81 psi (0.4 bar) |
| Diameter Range | 3 to 3.99 in |
| Efficiency Beta 20 | 40 Micron |
| Efficiency Beta 2000 (Micron) | 14 Micron |
| Efficiency Beta 200 (Micron) | 26 Micron |
| Efficiency Beta 2 (Micron) | 10 Micron |
| Efficiency Beta 75 | 16 Micron |
| Length | 9-7/8 in (25.1 cm) |
| Outer Diameter | 3-15/16 in (10.01 cm) |
| Outlet Size | M16 x 1.5 |
| Primary Application | MASSEY FERGUSON 3595175M1 |
| Series | FLK90 |
| Length Range | 9 to 9.99 in |
| Temperature Range | -40 to 250°F / -40 to 121°C |
| Thread Size | M106 x 2.5 |
Interchanges & Equivalent parts:
| P766961 |
