Industrial Double-V Belts, W: 21/32 in
#GATBB75
Product Overview

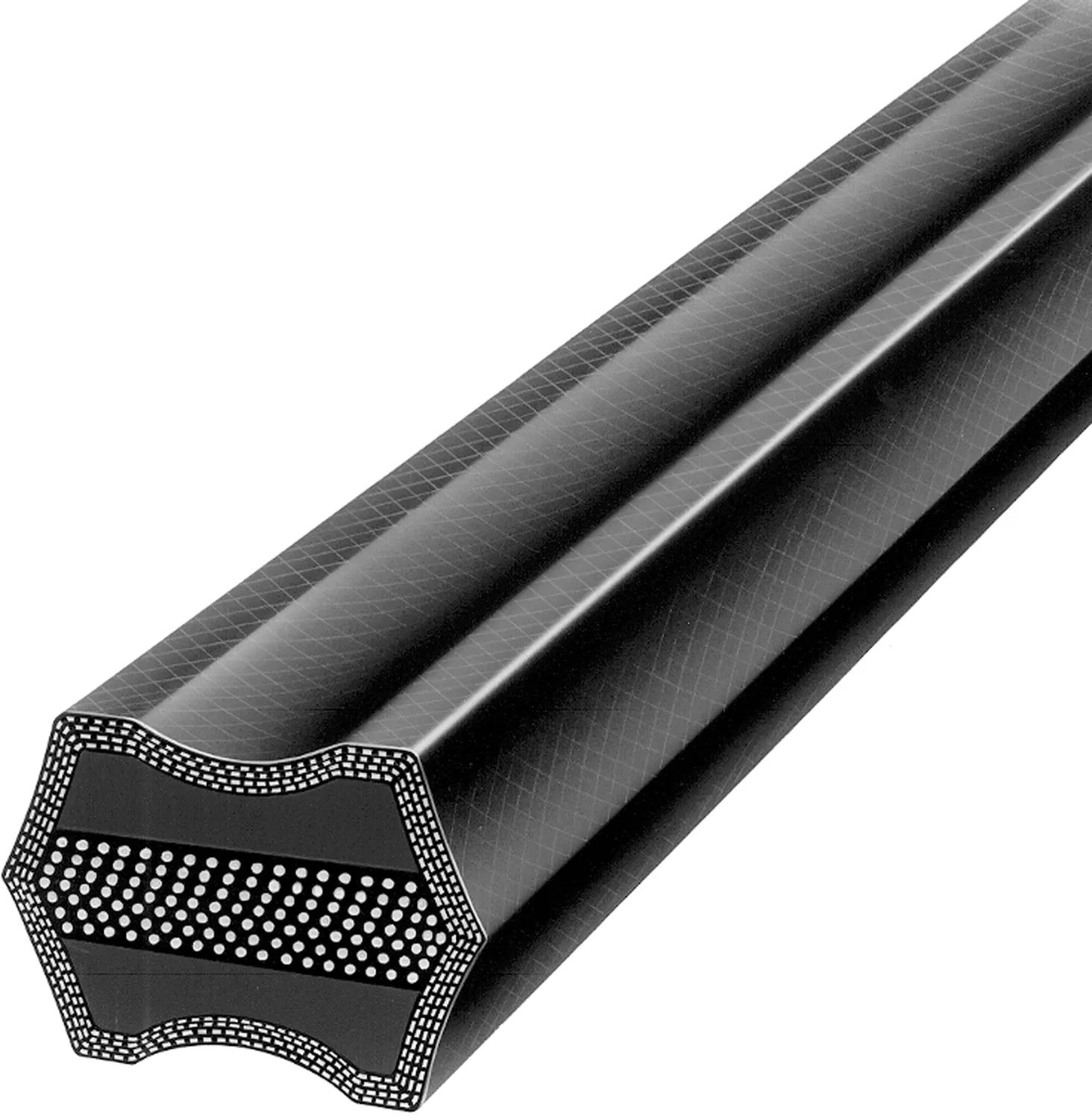

Designed w/ A Unique Recessed Top & Bottom to Maintain Sidewall Contact While Remaining Flexible For Drives That Require Power Transmission From Both Sides of the Belt.
Features & Benefits
- Meets RMA Oil & Heat Resistant Standards.
- Suitable For All Industrial Serpentine Applications Requiring Rotation Reversal On Some Driven Shafts.
- The Flex-Weave Cover Is A Patented Construction For Longer Cover Life, Providing Extended Protection To The Core Of The Belt From Oil, Dirt & Heat.
- Flex-Bonded Cords Are Strongly Bonded To The Body Of The Belt Resulting In Equal Load Distribution & The Absorption Of Bending Stress w/o Cord Deterioration.
- Meets RMA Static Conductivity Requirements.
Specifications
| Belt Top Width | 5/8 to 3/4 in (1.6 to 1.91 cm) |
| Length | 78 in |
| Section | BB |
| Length Range | 75 to 79.99 in |
| Type | Industrial Double-V Belts |
| Width | 21/32 in (1.68 cm) |
Interchanges & Equivalent parts:
| 48075 |
| BB75 |
| CP6497 |
| 70548875 |
| 70548875A |
| 780196 |
| 2112746 |
| 347750 |
| 000347750 |
| 2020B40G38 |
| 2020B40H38 |
| 78138 |
| 78196 |
| 41015287 |
| 99151434 |
| 90530075 |
