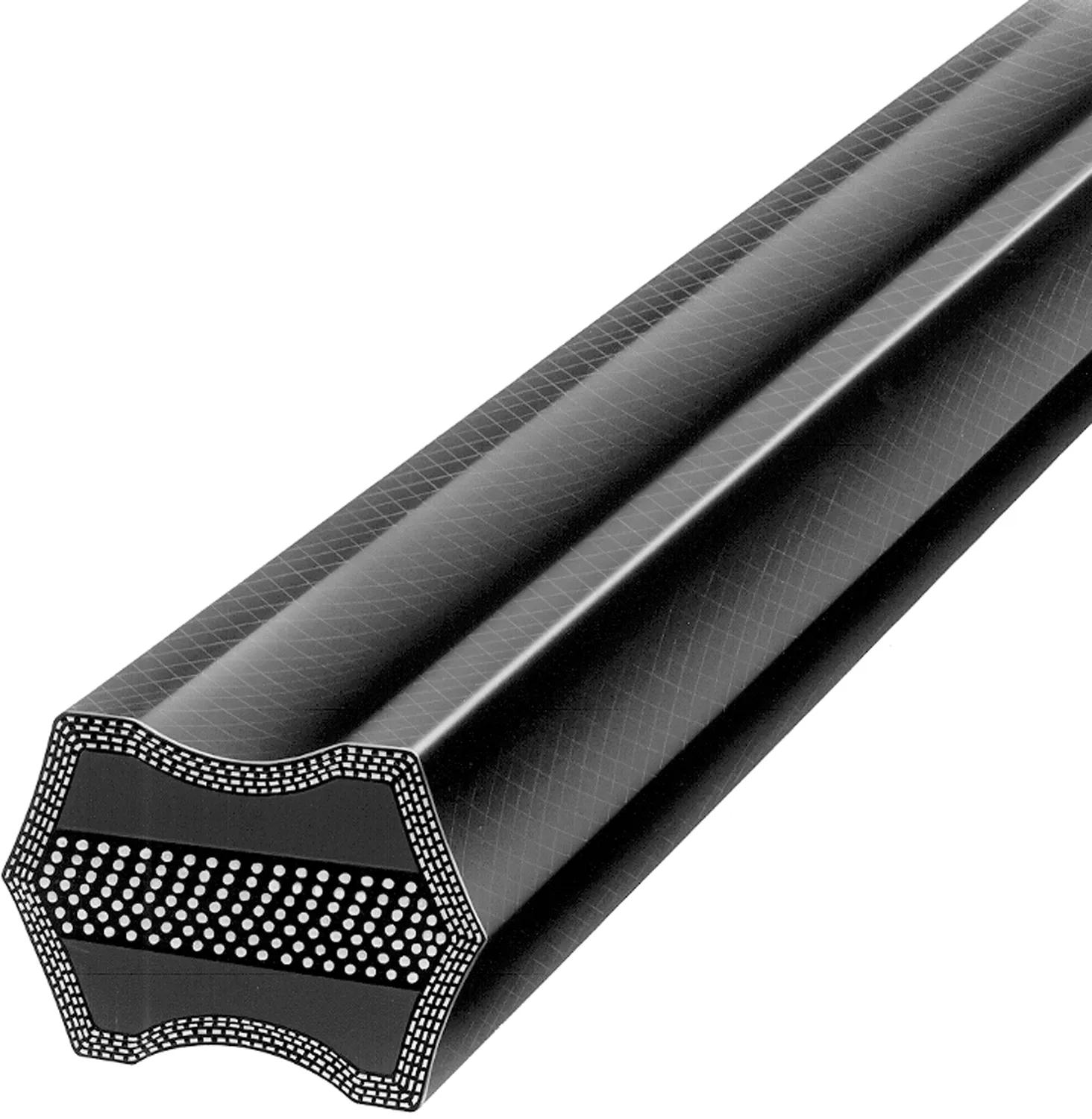

Industrial Double-V Belts, W: 7/8 in
#GATCC144
Product Overview
Designed w/ A Unique Recessed Top & Bottom to Maintain Sidewall Contact While Remaining Flexible For Drives That Require Power Transmission From Both Sides of the Belt.
Features & Benefits
- Meets RMA Oil & Heat Resistant Standards.
- Suitable For All Industrial Serpentine Applications Requiring Rotation Reversal On Some Driven Shafts.
- The Flex-Weave Cover Is A Patented Construction For Longer Cover Life, Providing Extended Protection To The Core Of The Belt From Oil, Dirt & Heat.
- Flex-Bonded Cords Are Strongly Bonded To The Body Of The Belt Resulting In Equal Load Distribution & The Absorption Of Bending Stress w/o Cord Deterioration.
- Meets RMA Static Conductivity Requirements.
Specifications
| Belt Top Width | 7/8 to 1 in (2.24 to 2.54 cm) |
| Length | 144 in |
| Section | CC |
| Length Range | 140 to 149.99 in |
| Type | Industrial Double-V Belts |
| Width | 7/8 in (2.24 cm) |
Interchanges & Equivalent parts:
| M1035J |
| CC144 |
| 41015355 |
| 99151496 |
| 70506910 |
| KB16353P |
| 14W14804 |
| 90540144 |
