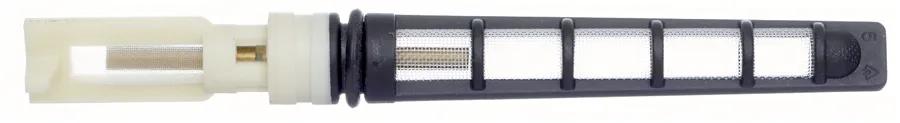

Inline Orifice Tube (PolarSeal ACA)
#GATG46010-0072
Product Overview
PolarSeal ACA Couplings Are For Use w/ Gates PolarSeal Air Conditioning Hose.
Features & Benefits
- It is the Dividing Point Between High & Low Pressure Sides of the Refrigeration System. The Orifice Tube Filters & Restricts High-Pressure Refrigerant in the Liquid Line & Meters Refrigerant Flow as a Low-Pressure Liquid.
- Available in Various Bend Angles & Common Stem Sizes -6, -8, -10 & -12.
- It is Located in the Refrigerant Line Between the Condenser Outlet & the Evaporator Inlet. The Tube Should be Replaced Any Time the Air Conditioning System is Opened for Service.
- The Orifice Tube is Found on an Accumulator Air Conditioning System.
- Offered in Many of the Most Popular Styles of Aluminum Couplings w/ Select Styles Available in Zinc-Plated Steel.
- Utilize Gates PolarSeal Portable Crimper, or One of Gates Bench Top Crimpers, to Make Crimped AC Assemblies Using ACA Couplings & PolarSeal Hose.
Specifications
| Coupling Description | PolarSeal ACA Inline Orifice Tube |
| Hose Recommendation | Gates PolarSeal Refrigerant Hose |
| Industrial Description | IOT-WHITE |
| Length | 3-1/2 in (8.89 cm) |
| Outside Diameter | 5/64 in (0.2 cm) |
| Series | PolarSeal ACA Compressor Female Tube O-Ring Nut w/ 134a Service Port - 90 deg Block - Steel |
| Type | PolarSeal ACA Compressor Female Tube O-Ring Nut w/ 134a Service Port - 90 deg Block - Steel |
Interchanges & Equivalent parts:
| G46010-0072 |
| 733202775 |
