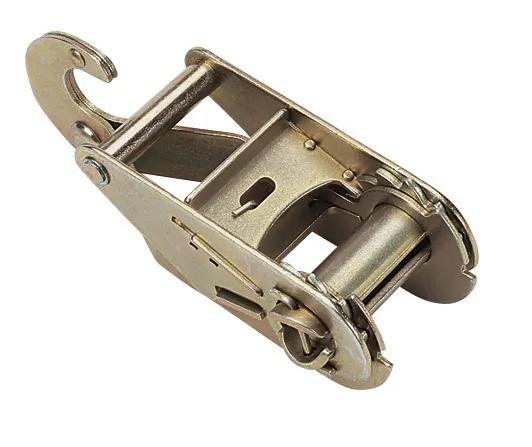

Kinedyne 1-3/4 in Hook End Ratchet, Heat Treated Carbon Steel, Zinc Plated, 2000 lbs Working Load Limit

#KIN31000

Product Overview


We've designed our 1 3/4" Standard Handle Ratchet with Hook End for more close quarters tie down jobs as it hooks directly to your anchor point. If the tie down job is a bit of a squeeze, you'll be able to attach Kinedyne's 1 3/4" Standard Handle Ratchet with Hook End directly to your vehicle's anchor point. This Ratchet acts in place of a Fixed End thanks to the sturdy hook located at the end of the Ratchet that offers easy anchoring to your vehicle's attachment point. When the hook is attached, work the Ratchet back and forth until you reach optimal tensioning. This zinc plated 1 3/4" Standard Handle Ratchet with Hook End is made from heat-treated carbon steel for extra strength.

See More
See Less

Features & Benefits


  • All Kinedyne Ratchet Buckles used in a tie-down assembly are to be rated as a whole assembly (not the individual components).
  • The Difference between Breaking Strength and Working Load Limit is: Breaking Strength refers to the point in which the tie-down you are using is going to fail. Working Load Limit is the maximum allowable load assigned to each tie down by the manufacturer which does not to exceed one-third of the complete assembly breaking strength.

Specifications


Color Gold Chromate
Finish Zinc Plated
Height 2-13/32 in
Length 7-33/64 in
Material Carbon Steel
Mount Type Surface Mount
Size 1-3/4 in
Type Hook End Ratchet
UPC 52474015721
Vertical Working Load Limit (lbs) 6200 lbs
Weight 1.62 lbs
Width 3-3/64 in
Working Load Limit 2000 lbs

Interchanges & Equivalent parts:


41808-14
