Kinedyne 1/4 in Grade 70 Zinc Plated Steel Bulk Transportation Chain, 3,150 lbs Working Load Limit, 800 ft Length
Product Overview
Kinedyne's 1/4 in x 800 ft Grade 70 Bulk Chain offers a secure and reliable cargo tie-down solution with a 3,150 lbs (1,430 kg) working load limit. Made from heavy-duty heat-treated carbon steel with a zinc plated gold finish, this chain is engineered to meet the National Association of Chain Manufacturers' standards. It is embossed with the manufacturer's identification mark and the number 70 to indicate Grade 70, ensuring high strength and durability for transportation needs. This high-quality chain stabilizes your cargo efficiently, keeping loads steady throughout your travels. Packaged in a barrel, it weighs approximately 524 lbs (238 kg) and features a breaking strength of 12600 lbs. The chain's zinc plated gold finish provides excellent corrosion resistance, making it ideal for demanding transportation applications.
Features & Benefits
- All Kinedyne Chains are rated as a whole assembly (not the individual components) and are embossed in accordance with National Association of Chain Manufacturers - embossed with manufacturer's identification mark as well as 30 to identify it as Grade 30 or 70 to identify it as Grade 70. The difference between breaking strength and working load limit is: breaking strength refers to the point at which the chain assembly you are using is going to fail. Working load limit is the maximum allowable load assigned to each chain assembly by the manufacturer which does not exceed one-fourth of the complete assembly breaking strength.
- Transport Grade 70 Chain.
- Breaking strength of 12,600 lbs.
- 3,150 lbs working load limit.

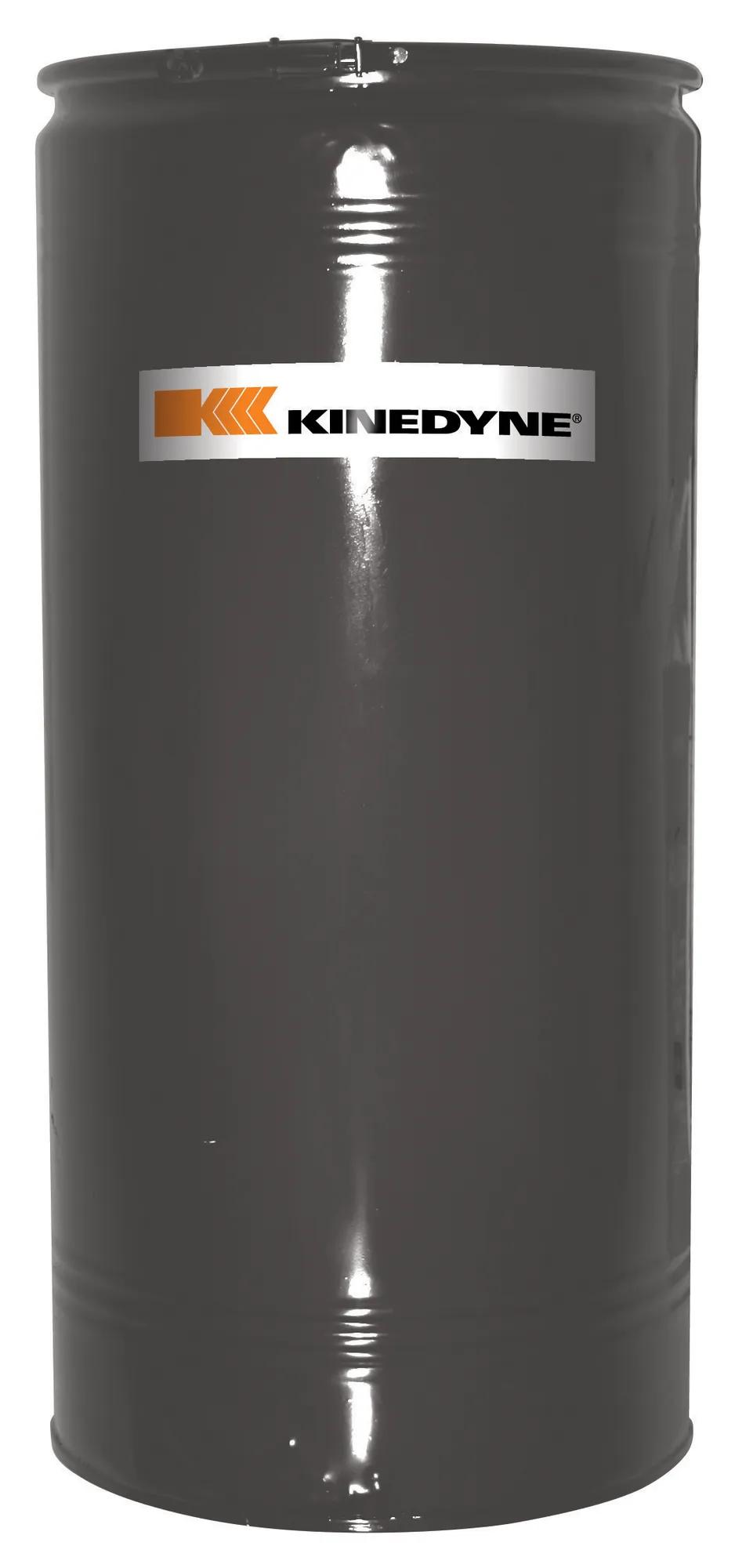

- 1/4" Grade 70 transportation chain with a 3,150 lbs working load limit - packed 800 ft per barrel.
- Heavy-duty heat-treated carbon steel construction.
- Zinc plated gold finish for corrosion resistance.
- Embossed with manufacturer's identification mark as well as 70 to identify it as Grade 70 as per the recommendations of the NACM - National Association of Chain Manufacturers.
Specifications
| Taille de la chaîne | 1/4 po |
| Couleur | Doré |
| Finition | Plaqué zinc |
| Longueur | 800 pi |
| Material | Acier |
| Quantity | 1 |
| Width | 0,2 po |
| Working Load Limit | 3150 lbs |
| Application | Transport |
| Breaking Strength | 12600 lbs |
| Chain Grade | Classe 70 |
| Standards | National Association of Chain Manufacturers (NACM) |
| Product Category | Chaîne en vrac |
| Weight | 524 lbs |
Interchanges & Equivalent parts:
| 601027 |
| U38601027 |
| 45880-12 |
