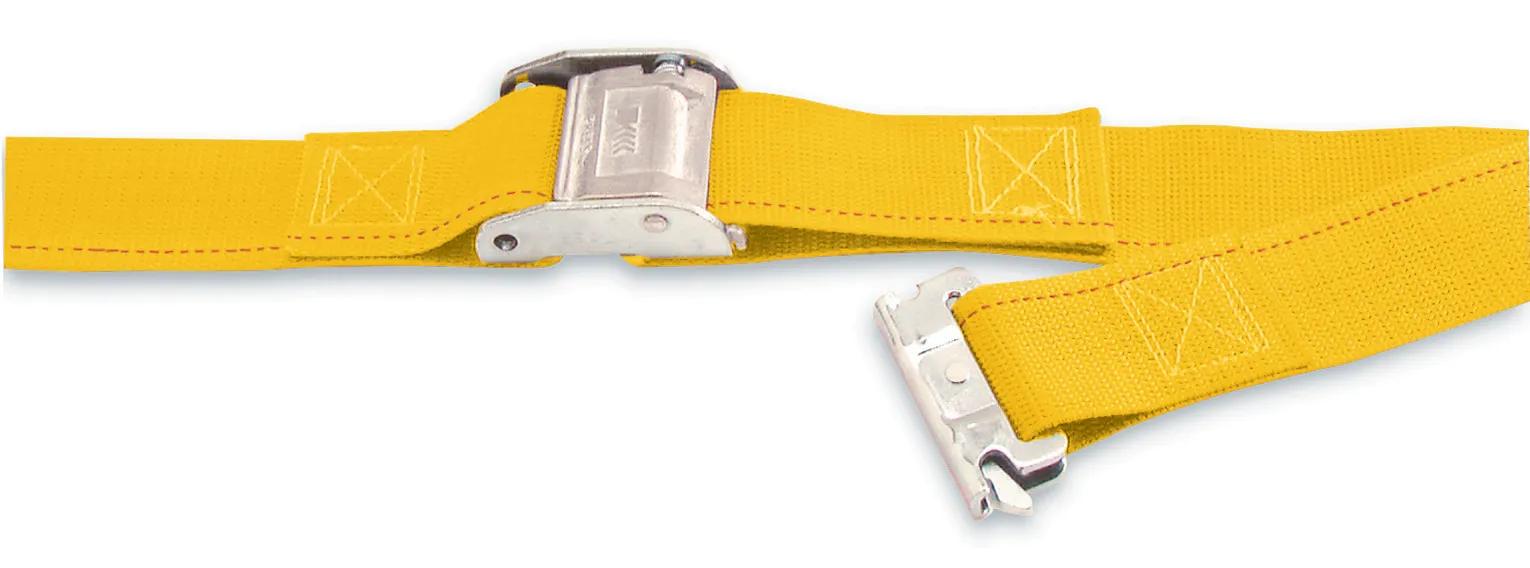

Kinedyne 12 ft Logistic Cam Buckle Strap, 2 in Wide, Gold, Spring Loaded Series E or A Fittings, 835 lbs Working Load Limit
Product Overview
Hook your tie down strap directly to your logistic track with our 2 in x 12 ft logistic cam buckle strap featuring spring loaded Series E or A fittings. Designed for stability and security, this strap keeps cargo firmly in place in the back of your trailer. The Kinedyne FE8306-1 spring loaded fittings easily insert and remove from the Series E or A track with a satisfying click, ensuring a secure attachment. Constructed from heat-treated carbon steel, these fittings provide reliable strength. The tightly woven Gold 4900F polyester webbing offers a strong grip on cargo without excessive stretching. The Kinedyne 910 cam buckle allows for simple assembly and use, with a heat-treated carbon steel tensioning device that offers controlled tensioning and helps prevent over-tightening. Manufactured to meet or exceed OEM specifications in function, form, and fit.
Features & Benefits
- All Kinedyne Logistic straps are rated as a whole assembly (not the individual components) and are tagged in accordance with North American Regulations: Manufacturer's Name, Working Load Limit in Pounds and Kilograms. The difference between Breaking Strength and Working Load Limit is: Breaking Strength refers to the point at which the tie-down will fail. Working Load Limit is the maximum allowable load assigned to each tie down by the manufacturer, not to exceed one-third of the complete assembly breaking strength.
- Manufactured to Meet or Exceed O.E.M. Specifications in Function, Form & Fit.
- Tyvek Tag marked with Manufacturer's Name, Working Load Limit in Pounds and Kilograms in accordance with North American Regulations
- Logistic Strap, 2" x 12 ft
- Gold 4900F tightly woven polyester webbing provides a strong grip without excessive stretching.
- Kinedyne 910 cam buckle with heat-treated carbon steel tensioning device for easy, controlled tensioning and prevention of over-tightening.
- Spring loaded Series E or A fittings (FE8306-1) made from heat-treated carbon steel for reliable strength.
Specifications
| Couleur | Bichromaté or |
| Type d'extrémité | Raccord à ressort de série E ou A |
| Longueur | 12 pi |
| Séries | Série E ou A |
| Type | Sangle à boucle à levier, à ressort |
| Limite de charge de travail | 835 lbs |
| Type de réglage | Boucle à came |
| Résistance à la rupture | 2505 lbs |
| Résistance à la rupture - Embouts | 4500 lbs |
| Finition de l'embout | Plaqué zinc |
| Embout | Raccord à ressort FE8306-1 série E ou A |
| Couleur de l'embout | Bichromaté or |
| Matériau de l'embout | Acier au carbone traité thermique |
| Longueur de l'extrémité fixe | 4 pi |
| Type d'extrémité bouclée | Raccord E ou A à ressort |
| Matériau de la sangle | Polyester |
| Style de sangle | Sangle en polyester Gold 4900F |
| Width | 2 po |
| Product Category | Sangle logistique à boucle à came |
| Quantity | 20 |
| Weight | 1,61 lbs |
Interchanges & Equivalent parts:
| 4060217 |
| 649510 |
| ANR4060217 |
| NKI651201 |
| U38649510 |
| 40602-17 |
