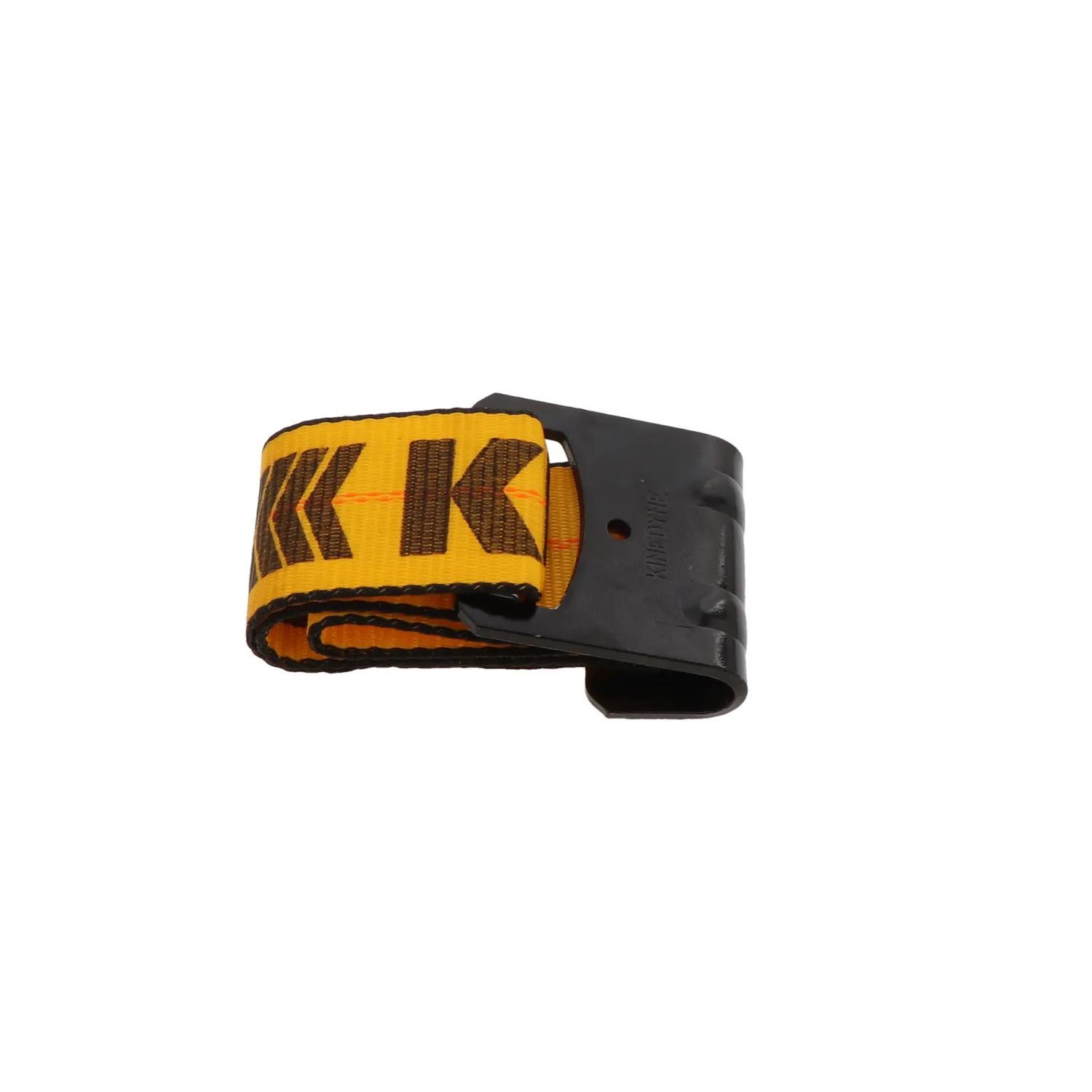

Kinedyne 3 in 3084F Gold Polyester Web Short Section Ratchet Strap Replacement Fixed End, Flat Hook w/ Abrasion Clip, 18 in L, 5400 lbs Working Load Limit
#KIN77T9921
Product Overview
We've engineered our Replacement Fixed End for a 3" Flat Hook Ratchet Strap to provide a superior grip over your load. This ideal tie down can handle a working load limit of 5,400 Lbs. / 2,450 Kgs.3-Inch Flat Hook Ratchet Strap Replacement Fixed End
Features & Benefits
- All Kinedyne ratchet strap are rated as a whole assembly (not the individual components) and are Tagged and Stenciled in accordance to North American Regulations: Manufacturers Name, Working Load Limit in Pounds and Kilograms. The Difference between Breaking Strength and Working Load Limit is: Breaking Strength refers to the point in which the tie-down you are using is going to fail. Working Load Limit is the maximum allowable load assigned to each tie down by the manufacturer which does not to exceed one-third of the complete assembly breaking strength.
- Tyvek Tag marked with Manufacturers Name, Working Load Limit in Pounds and Kilograms in accordance to North American Regulations
- Replacement Fixed End for a 3" Flat Hook Ratchet Strap engineered to provide superior grip and durability.
- Constructed with heat-treated carbon steel Flat Hook with Abrasion Clip to reduce wear on webbing.
- Kinedyne Gold with Black Edge 3084F polyester webbing offers maximum strength with minimal stretch to stabilize loads.
Specifications
| Color | Gold |
| End Type | Flat Hook with Abrasion Clip |
| Length | 18 in |
| Series | Kinedyne Gold with Black Edge |
| Working Load Limit | 5400 lbs |
| Breaking Strength | 16200 lbs |
| End Fitting Finish | Powder Coat |
| End Material | Heat Treated Carbon Steel |
| Strap Width | 3 in |
| Webbing Material | Polyester |
| Width | 3 in |
| Weight | 1.4 lbs |
Interchanges & Equivalent parts:
| 48922-11 |
