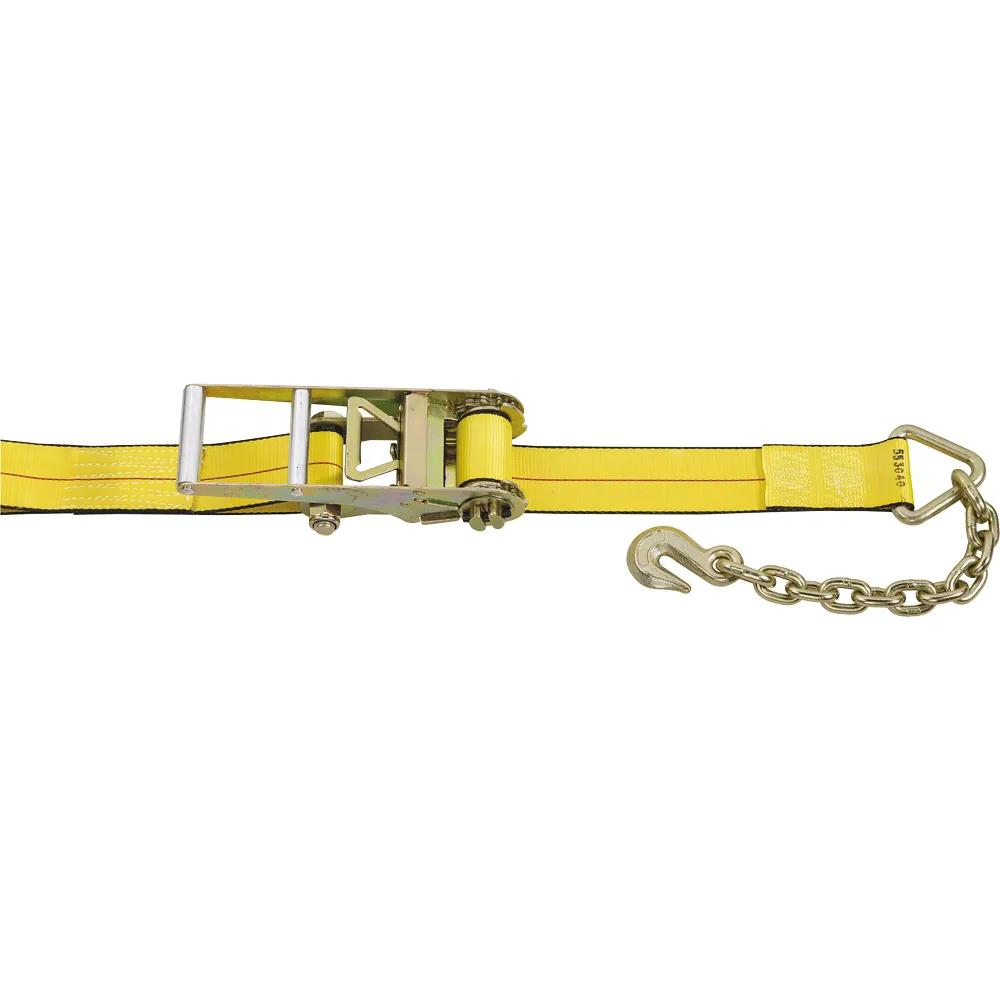

Kinedyne 3 in Gold Polyester Wide Handle Ratchet Fixed End with Chain Anchor, 18 in, 5400 lbs Working Load Limit

#KIN559940

Product Overview

Combining flexibility and durability, Kinedyne's Replacement Fixed End for a 3" Chain Anchor Ratchet Strap has the strength you need to get the tie down job done effectively. Able to handle a working load limit of 5,400 Lbs. / 2,450 Kgs., this Replacement Fixed End is built with the highest quality materials. 3-Inch Chain Anchor Long Handle Ratchet Strap Replacement Fixed End

Features & Benefits

All Kinedyne ratchet straps are rated as a whole assembly and are tagged/stenciled per North American Regulations, including Manufacturer's Name and Working Load Limit (WLL) in pounds and kilograms. The WLL is the maximum allowable load assigned by the manufacturer, not exceeding one-third of the complete assembly's breaking strength.

Tyvek Working Load Limit Tag on adjustable end.

Tyvek Tag marked with Manufacturer's Name, Working Load Limit in Pounds and Kilograms in accordance to North American Regulations.

Fixed End with 806 Ratchet Buckle, 3084 Web, and 3705-3 Chain Anchor.

Replacement Fixed End built with heat-treated carbon steel for optimal strength and durability.

Durable 18 in long 3705-5 Chain Anchor designed for highly abrasive cargo.

Standard Kinedyne Gold with black edge 3084F polyester webbing for strong, flexible cargo securement.

Specifications

Color	Gold
End Type	Chain Anchor
Length	18 in
Series	Kinedyne Gold with Black Edge
Type	Wide Handle Ratchet Strap
Working Load Limit	5400 lbs
Breaking Strength	7348 kg
End Fitting Finish	Zinc Plated
End Material	Heat Treated Carbon Steel
Fixed End Length	18 in
Strap Width	3 in
Webbing Material	Polyester
Width	3 in
Weight	10.4 lbs
