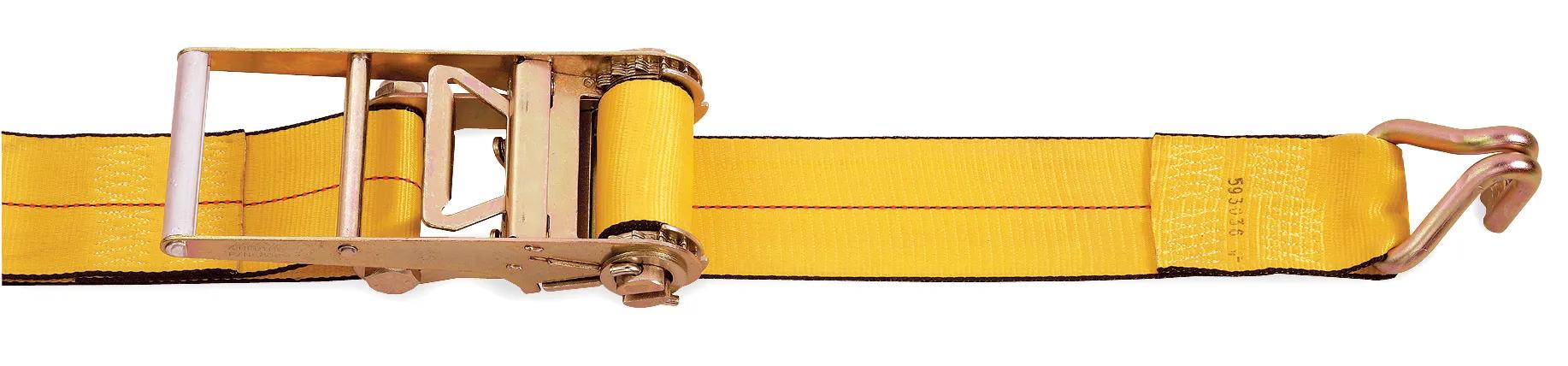

Kinedyne 4 in x 30 ft Gold Polyester Ratchet Strap with Narrow Wire Hooks, 6670 lbs Working Load Limit

#KIN593036

Product Overview


Constructed under complete Kinedyne control with industrial strength 4 in polyester webbing, this 4 in x 30 ft wire hook ratchet strap features 18 in fixed end length and gold dichromate heat-treated carbon steel 1016 narrow wire hooks. It delivers a working load limit of 6670 lbs (3,025 kg) and a breaking strength of 20,010 lbs. The signature Kinedyne gold with black edge 4084F polyester webbing withstands abrasion and harsh weather, providing versatile and durable load securement. Narrow wire hooks allow easy access to difficult anchor points. Compliant with WSTDA, CHP, CVSA, DOT, and North American securement standards, all Kinedyne ratchet straps are labeled and stenciled with the manufacturer's name and working load limit. With an engineered sew pattern to match its webbing and long handle ratchet, this strap is built to last longer while retaining strength and tightness. Drivers appreciate the flexibility offered by the wire hooks and the impressive 6670 lbs (3,025 kg) working load limit. The wire hooks are narrow enough to slide through difficult-to-reach anchor points, making this ratchet strap versatile for nearly any load. The capacity indicator line designates two red lines representing 6000 pounds per in across the webbing, ensuring secure load fastening.

See More
See Less

Features & Benefits


  • All Kinedyne ratchet strap are rated as a whole assembly (not the individual components) and are Tagged and Stenciled in accordance to North American Regulations: Manufacturers Name, Working Load Limit in Pounds and Kilograms. The Difference between Breaking Strength and Working Load Limit is: Breaking Strength refers to the point in which the tie-down you are using is going to fail. Working Load Limit is the maximum allowable load assigned to each tie down by the manufacturer which does not to exceed one-third of the complete assembly breaking strength.
  • Type of tension device: Kinedyne 808 long handle ratchet
  • Tyvek Tag marked with Manufacturers Name, Working Load Limit in Pounds and Kilograms in accordance to North American Regulations
  • Ratchet Strap, 4" x 30 ft, 808 Long Handle Ratchet, 1016 Wire Hooks, 4084FK Webbing

Specifications


Color Gold with Black Edges
End Type 1016 Narrow Hook
Length 30 ft
Series 4084F
VMRS Code 055-012-010
Working Load Limit 6670 lbs
Adjustment Type Ratchet
Breaking Strength 20010 lbs
End Fitting Finish Zinc Plated
End Fitting Color Gold Dichromate
End Material Heat Treated Carbon Steel
Fixed End Length 18 in
End Type 1016 Narrow Hook
Standards WSTDA, CHP, CVSA, DOT, North American securement standards
Strap Material Polyester
Strap Width 4 in
Webbing Material Polyester
Webbing Style Standard Gold with Black Edge 4084F Webbing
Width 4 in
Product Category Ratchet Strap
Quantity 4
Weight 14.6 lbs

Interchanges & Equivalent parts:


4934613
ANR4934613
49346-13
