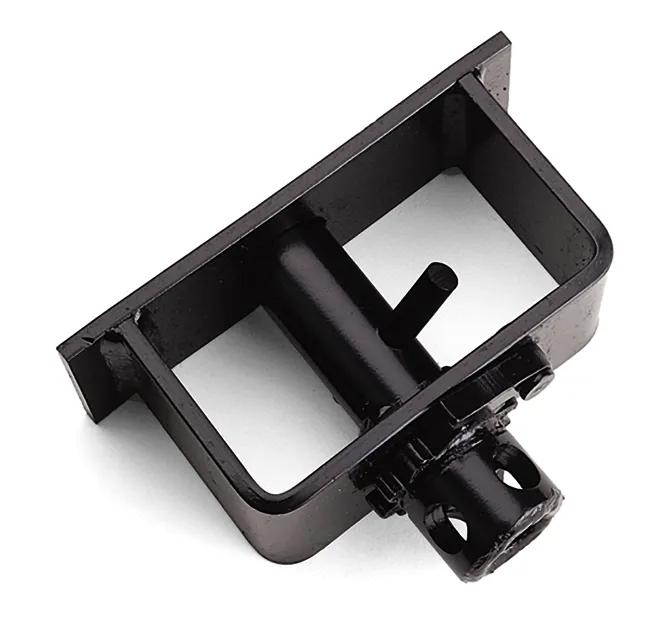

Kinedyne End Box Cable Weld-On Winch, 5000 lbs Working Load Limit, Steel, Powder Coat, 5/8 in x 2 in Post
#KIN12016
Product Overview
Kinedyne's special End Box Cable Weld-On Winch is designed to be mounted on the end of trailers. This industrial strength winch has a 5/8" diameter x 2" long post and has a working load limit of 5,000 Lbs. / 2,500 Kgs.
Features & Benefits
- All Kinedyne winches are rated as a whole assembly and stamped in accordance with North American Regulations, including Manufacturer's Name and Working Load Limit (WLL) in pounds and kilograms. The WLL is the maximum allowable load assigned by the manufacturer, not exceeding one-third of the complete winch breaking strength.
- Kinedyne's special End Box Cable Weld-On Winch is designed to be mounted on the end of trailers. This industrial strength winch has a 5/8" diameter x 2" long post and a working load limit of 5000 lbs / 2500 Kgs.
- Engineered from heat-treated carbon steel with a powder coat finish for enhanced strength and durability.
- Meets DOT regulations, Canadian 905, WSTDA, CHP, and North American Cargo Securement standards.
- Winches are stamped with manufacture date, country of origin, and working load limit in pounds and kilograms.
- Designed for heavy-duty cargo securement jobs requiring wire cable durability and strength.
- Equipped with a 5/8 in diameter x 2 in long post for easier handling and installation.
- Recommended installation ensures the user can see the pawl for proper engagement.
Specifications
| Finish | Powder Coat |
| Height | 10 in |
| Material | Steel |
| Working Load Limit | 5000 lbs |
| Color | Black |
| Length | 7.5 in |
| Mounting Type | Weld Mount |
| Width | 3.9 in |
| Weight | 15.8 lbs |
Interchanges & Equivalent parts:
| 41696-10 |
