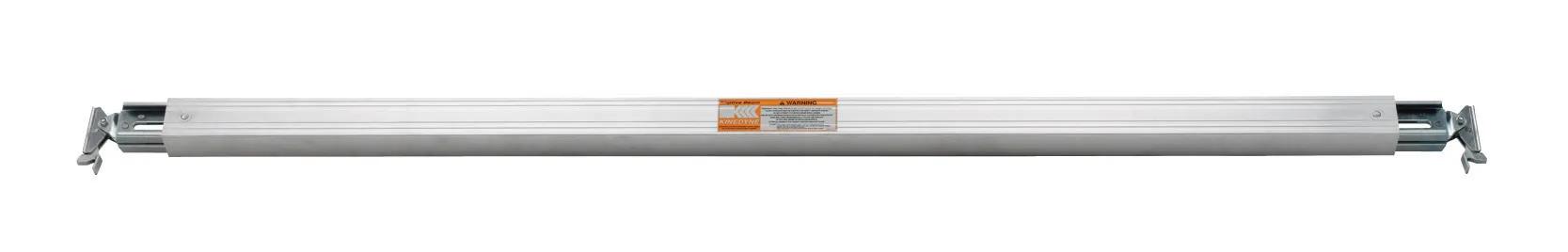

Kinedyne K2 Kaptive Beam, Anodized Aluminum, Adjustable 90-100 in for 96 in Trailers, 2200 lbs Load Limit

#KIN9075-96

Product Overview


Built for durability and designed for strength, Kinedyne's K2 Kaptive Beam allows you to create a second deck in your trailer, maximizing cargo space and load capacity. This adjustable beam fits 96 in wide trailers and extends from 90 to 100 in, providing a decking working load limit of 2200 lbs (1000 kg) and a shoring working load limit of 1500 lbs (680 kg). Manufactured from extruded anodized high-strength aluminum, it features a unique K2 Beam Head assembly with a heavy-duty spring-loaded trigger mechanism for easy insertion and removal from Kaptive Beam Track slots. Ideal for decking and shoring applications, this beam enhances trailer load capacity by up to 100%, increasing efficiency and profits by maximizing loads while minimizing trips.

See More
See Less

Features & Benefits


  • Adjustable length from 90 to 100 to fit various load configurations
  • Decking working load limit of 2200 lbs (1000 kg)
  • Shoring working load limit of 1500 lbs (680 kg)
  • Constructed from extruded anodized high-strength aluminum for durability
  • Unique K2 Beam Head with spring-loaded trigger for easy manipulation
  • Designed to create a second deck in trailers, maximizing cargo space
  • Compatible with 96 in wide trailers
  • Increases trailer load capacity by up to 100%

Specifications


Color Silver
Adjustable Length 90 to 100 in
Length 90-100 in
Type K2 Beam Head
Width 96 in
Weight 19 lbs

Interchanges & Equivalent parts:


9075-96
