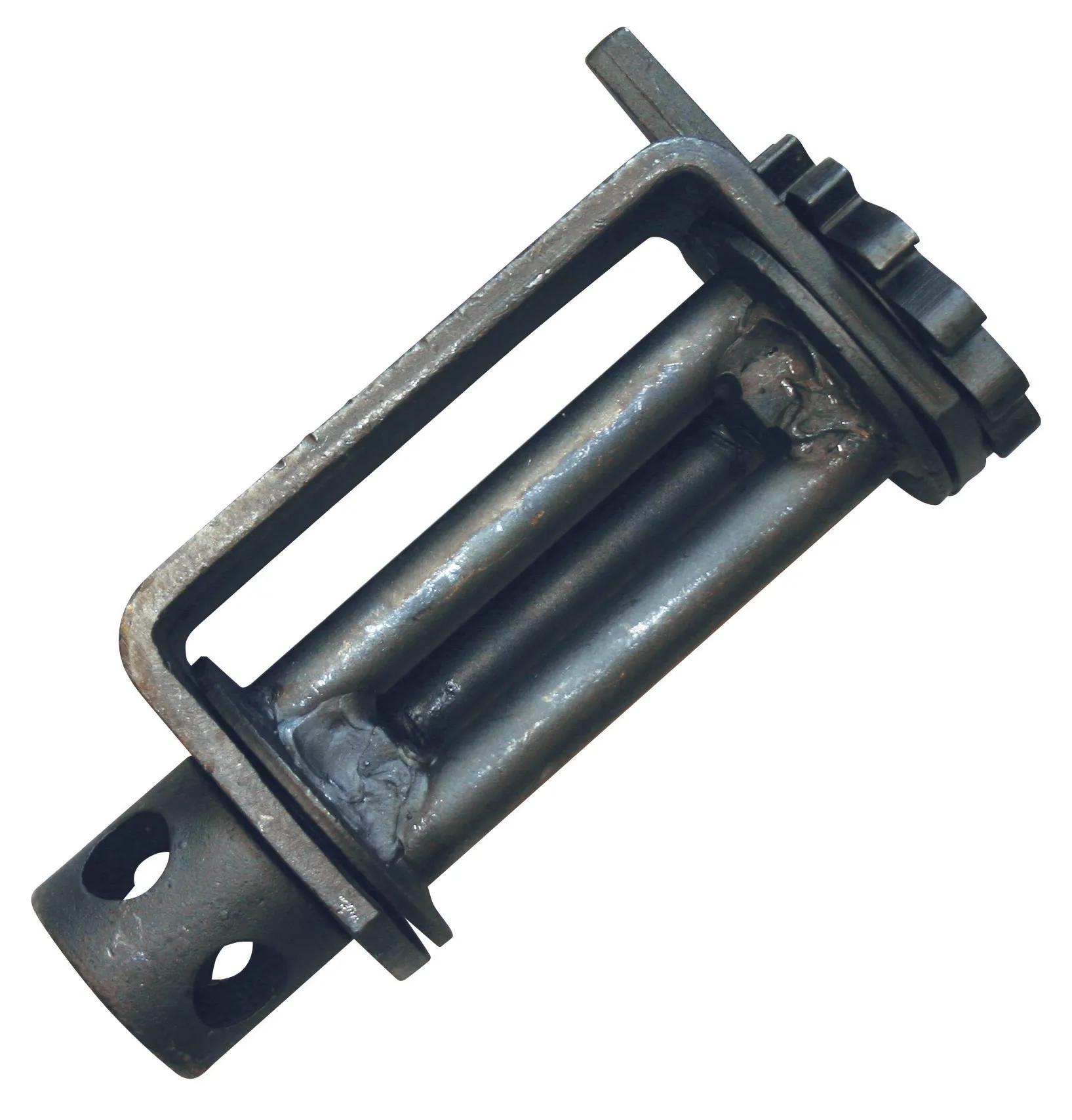

Kinedyne Low Profile 3 Bar Weld-on Winch, No Paint, 5000 lbs Working Load Limit, Steel, for 4 in Straps

#KIN14001NP

Product Overview


Kinedyne's no paint low-profile weld-on 3-Bar winch is engineered with the strength to easily handle many jobs and has a working load limit of 5000 lbs (2,270 kgs). Its compact and durable design makes it ideal when space is limited. The three-bar design facilitates easy webbing insertion, even with ice buildup on the frame, making it an ideal winch for colder seasons and ensuring a secure grip in all weather conditions. Manufactured from heat-treated carbon steel for enhanced strength, this winch is very easy to weld onto flatbed trailers. The easy-to-reach, unique thumb pawl allows quick locking or unlocking of the sprocket for easier use and better strap control. In accordance with North American regulations, all winches are stamped with the working load limit in pounds and kilograms, the manufacturing date, and country of origin. They comply with WSTDA, CHP, North American cargo securement, DOT regulations, and Canadian 905 standards.

See More
See Less

Features & Benefits


  • Working Load Limit (WLL) is clearly stamped on winch frames for compliance and safety.
  • Rated in accordance with North American Cargo Securement Regulations.
  • Easy-to-reach thumb pawl allows for quick sprocket locking and unlocking, improving strap control.
  • Each winch is date and batch coded for traceability and quality assurance.
  • No-paint finish allows for easy welding onto flatbed trailers and customization.
  • Heat-treated carbon steel construction provides enhanced strength and durability.
  • Three-bar design facilitates easier webbing insertion, even with ice buildup on the frame.
  • Low-profile design is ideal for applications where space is limited.

Specifications


Finish No Paint
Height 4.25 in
Material Steel
VMRS Code 055-012-012
Working Load Limit 5000 lbs
Bottom Mount Yes
Breaking Strength 15000 lbs
Color Black
Length 10.24 in
Maximum Width of Strap Used With 4 in
Mounting Type Weld Mount
Side Mount No
Storage Capacity 10 ft
Type 3 Bar
Width 3.94 in
Product Category Winch
Quantity 5
Weight 11.6 lbs

Interchanges & Equivalent parts:


P530058
