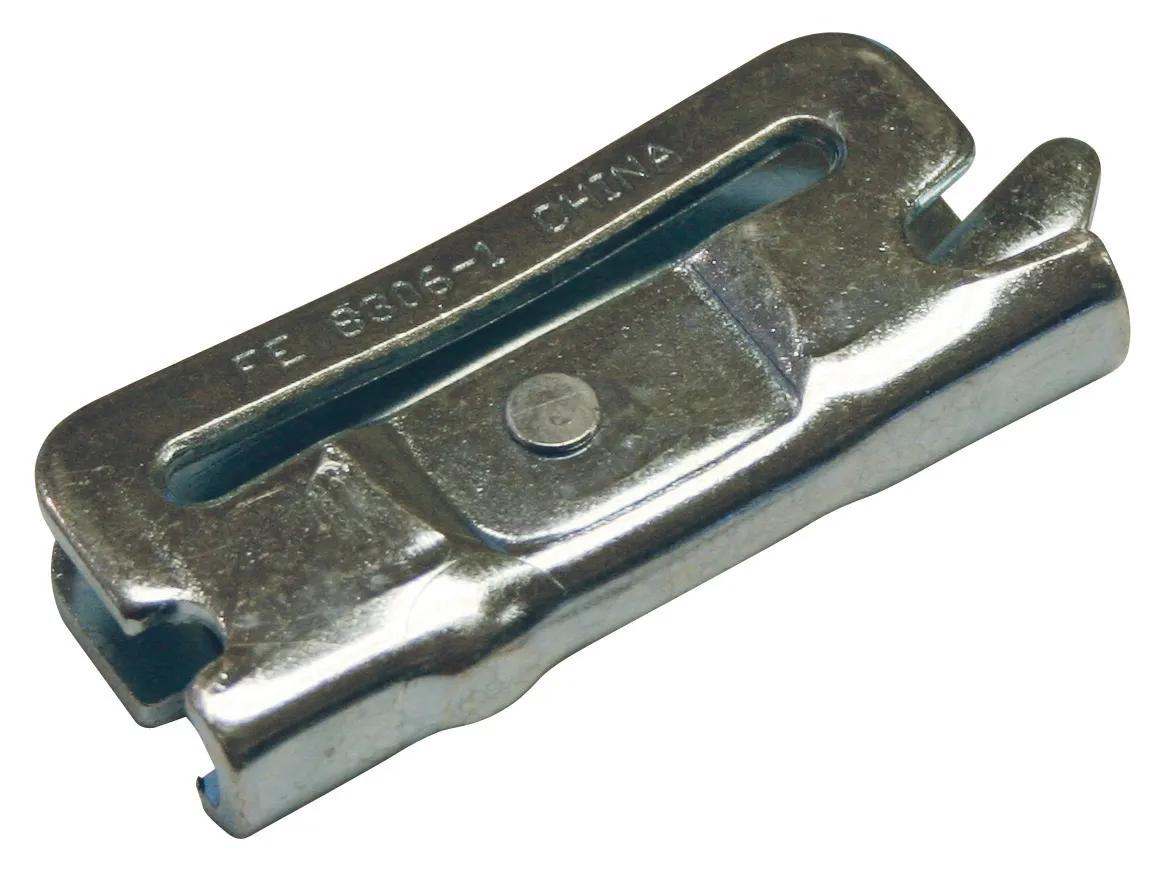

Kinedyne Series E or A Spring Loaded Load Fitting for 2 in Logistic Strap, 1500 lbs Working Load Limit, Heat Treated Carbon Steel
#KINFE8306-1
Product Overview
Kinedyne offers easier and faster insertion and removal with our Spring Loaded Series E or A Fitting with a working load limit of 1500 lbs / 680 Kgs. for your Logistic Strap. Kinedyne's easy-to-use Spring Loaded Series E or A Fitting quickly snaps into place in most Series E or A Logistic Tracks, offering a sturdy hold for your Logistic Strap to use to effectively secure your load. This heat-treated carbon steel end fitting can handle a working load limit of 1500 lbs / 680 Kgs. and can be sewn to your 2 in Logistic Strap to create a reliable tie down assembly. Our anti-corrosive zinc plated end fitting is equipped with a handy spring loaded trigger that makes it easier to insert into the Logistic Track.
Features & Benefits
- All Kinedyne Logistic Track Fittings used in a tie-down assembly are to be rated as a whole assembly (not the individual components). The Difference between Breaking Strength and Working Load Limit is: Breaking Strength refers to the point in which the tie-down you are using is going to fail. Working Load Limit is the maximum allowable load assigned to each tie down by the manufacturer which does not to exceed one-third of the complete assembly breaking strength.
- Series E or A Spring Loaded Fitting.
- 1500 lbs Working Load Limit.
Specifications
| Application | Logistic Strap |
| Color | Gold Chromate |
| Finish | Zinc Plated |
| Material | Carbon Steel |
| Material Type | Steel |
| Mounting Type | Spring Loaded Trigger |
| Product Common Use | Tie Down Assembly |
| Product Type | Seals |
| Size | 2 in |
| Style | Spring Loaded |
| UPC | 52474004329 |
| Weight | 0.22 lbs |
| Working Load Limit | 1500 lbs |
Interchanges & Equivalent parts:
| FE8306-1 |
