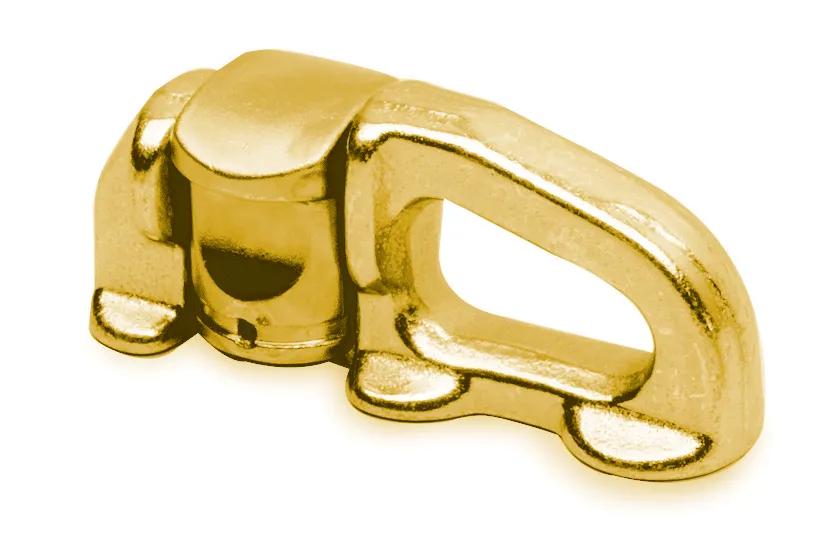

Kinedyne Series L Heavy-Duty Triple Stud Fitting, Heat Treated Carbon Steel, Zinc Plated, 1670 lbs Working Load Limit at 90 deg
#KIN32505
Product Overview
A heavy-duty tie down job needs a reliable anchor point just like Kinedyne's Series L Heavy-Duty Triple Stud Securement Point Fitting that holds your cargo in a reliably tight grip.
Features & Benefits
- Kinedyne Securement Point Fittings are rated as a whole assembly, ensuring reliable performance.
- Working Load Limit (WLL) is the maximum allowable load, set at one-third of the complete assembly breaking strength.
- Series L Triple Stud Fitting without Ring.
- Series L Heavy-Duty Triple Stud Securement Point Fitting engineered from heat-treated carbon steel with a zinc plated finish for extra durability.
- Working Load Limits: 2,167 lbs at 0 degrees, 2000 lbs at 45 degrees, and 1670 lbs at 90 degrees.
- Quick to install, easy to use, and secure enough to trust for heavy-duty tie down jobs.
Specifications
| Type | Triple Stud Fitting |
| Application | Heavy-Duty Tie Down |
| Breaking Strength | 2167 lbs |
| Color | Gold Chromate |
| Finish | Zinc Plated |
| Height | 1-1/8 in |
| Length | 2-19/32 in |
| Material | Carbon Steel |
| Width | 29/32 in |
| Working Load Limit | 2000 lbs |
| Weight | 0.27 lbs |
