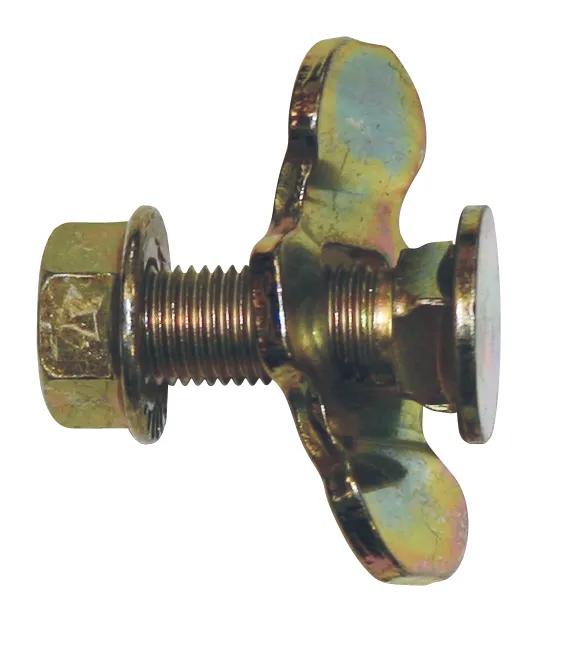

Kinedyne Series L Single Securement Point Fitting with Stud Nut, 1670 lbs Working Load Limit, Heat Treated Carbon Steel, Zinc Plated
#KINFE200744
Product Overview
The Kinedyne Series L Single Securement Point Fitting with Stud Nut offers exceptional versatility and reliability for heavy-duty tie-down applications, ensuring a secure tie-down job. With a Working Load Limit (WLL) of 1670 lbs (757 Kgs.), this heat-treated carbon steel fitting ensures robust securement. Its design allows for quick and easy insertion: simply place the screw into a Series L Track hole and slide it to the desired position, providing a reliable attachment point wherever needed on the track.
Features & Benefits
- All Kinedyne Securement Point Fittings are rated as a whole assembly (not it's individual components). The Difference between Breaking Strength and Working Load Limit is: Breaking Strength refers to the point in which the tie-down you are using is going to fail. Working Load Limit is the maximum allowable load assigned to each tie down by the manufacturer which does not to exceed one-third of the complete assembly breaking strength.
- Working Load Limit (WLL) of 1670 lbs / 757 Kgs.
- Constructed from heat-treated carbon steel for durability.
- Designed for quick and easy insertion into Series L Track.
- Provides a versatile and reliable attachment point anywhere on Series L Track.
Specifications
| Type | Standard Stud Bolt and Standard Stud Nut |
| Color | Silver |
| Finish | Zinc Plated |
| Height | 29/32 in |
| Length | 1-21/32 in |
| Material | Carbon Steel |
| Width | 1 in |
| Working Load Limit | 1670 lbs |
| Weight | 0.1 lbs |
