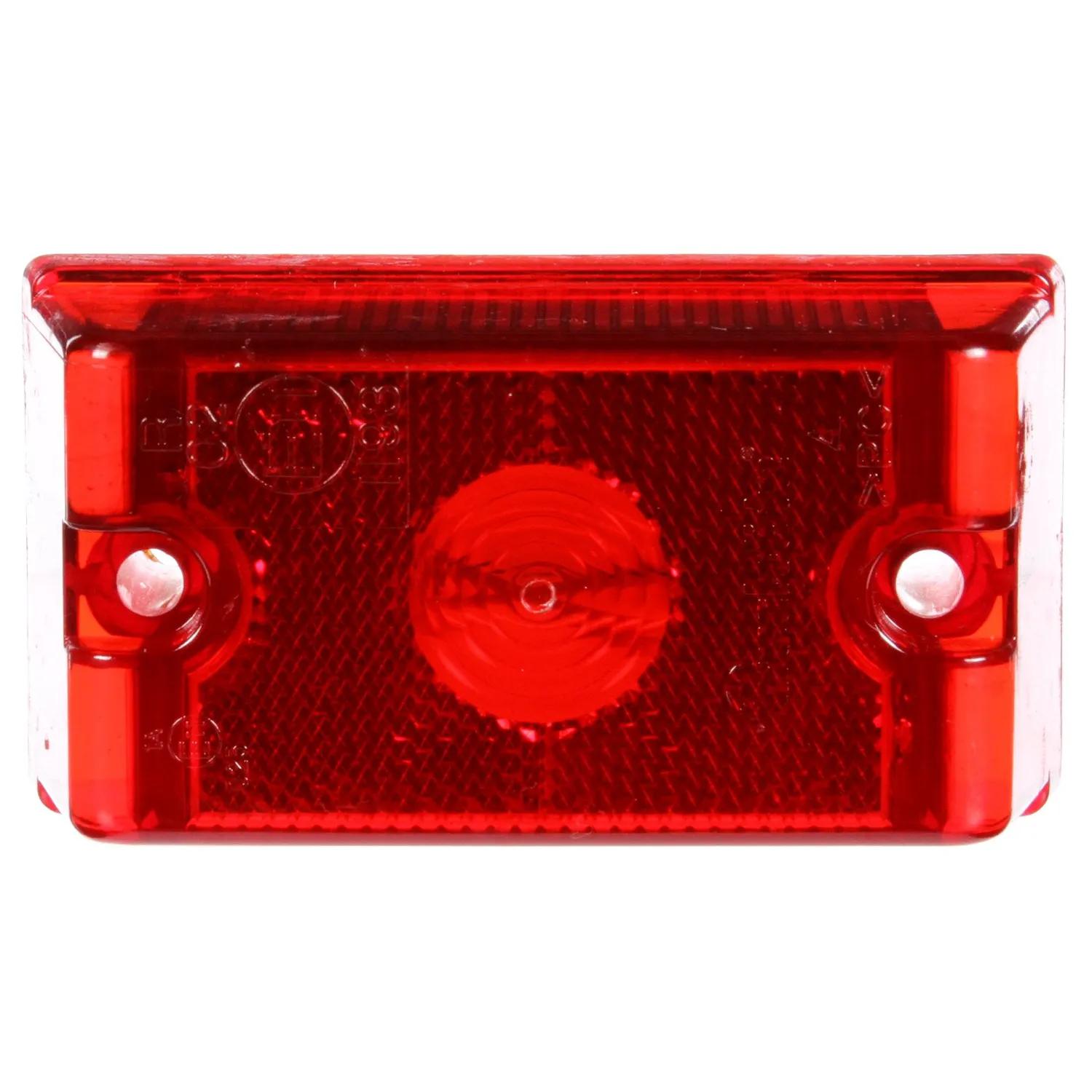

Lamp / Clearance & Marker Sealed Incandescent Truck-Lite
#TRL13011R
Product Overview
13 Series, European Approved, Incandescent, Red Rectangular, 1 Bulb, Marker Clearance Light, ECE, 2 Bolt & Nut Mount, Super 21 Plug, Stripped End, 12V, Kit
Specifications
| Common Size | 2 in (5.08 cm) x 4 in (10.16 cm) |
| Compliance Family | ECE |
| Contents | Lamp, Plug |
| Current Major | 0.69 amp |
| Depth | 2-1/4 in (5.72 cm) |
| Diamond Shell (Y/N) | No |
| Height | 1-43/64 in (4.24 cm) |
| Housing Material | Polycarbonate |
| Kit (Y/N) | Yes |
| Lamp Color | Red |
| Lamp Material | Polycarbonate |
| Lamp Shape | Rectangular |
| Lamp Style | 13 Series |
| Lamp Type | Sealed Incandescent |
| Lamp Volt Rating | 24 Volts |
| Lens Color | Red |
| Lens Height | 1-43/64 in (4.24 cm) |
| Lens Material | Polycarbonate |
| Lens Shape | Rectangular |
| Lens Width | 4-13/64 in (10.67 cm) |
| Lighting Technology | Incandescent |
| Mounting Method | Screws Through Lamp |
| Mount/Trim Color | Red |
| Mount Type | 2 Bolt & Nut Mount |
| Number of Diodes/Bulbs | 1 |
| Number Of Wires | 1 |
| Packaging | Polybag |
| Plug Side One | Super 21 Plug |
| Plug Side Two | Stripped End |
| Product Type | Marker Clearance Light |
| Reflectorized (Y/N) | No |
| Series | 13 Series |
| Standard | E1 |
| VMRS Code | 034-004-021 |
| Volt | 12 V |
| Weight | 0.4 lbs (0.18 kg) |
| Width | 4-13/64 in (10.67 cm) |
| Wire Gauge | 16 |
