LED 3 WIRE LAMP P2 AMB 33702
#TRL33206Y
Product Overview

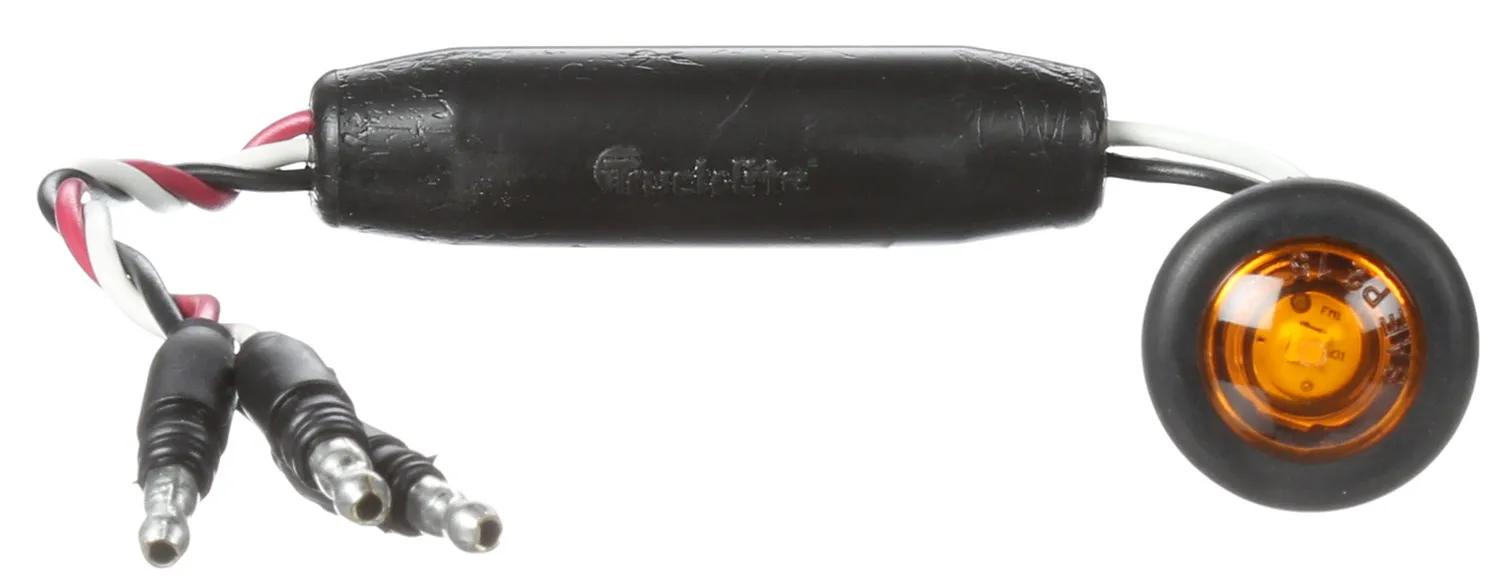

Dual Function,33 Series, LED, Yellow Round, 1 Diodes, Marker Clearance Light, P2, Black Rubber Closed Back Grommet, Hardwired, .180 Bullet Terminal, 12V, Kit
Features & Benefits
- World smallest LED marker lamp for the transportation industry
- Provides increased visibility when braking or turning
- Functions as a marker, auxiliary turn, and auxiliary stop when properly installed
Specifications
| Couleur | Yellow |
| Taille commune | 3/4 in (1.91 cm) |
| Major actuel | 0.12 amp |
| Mineure actuelle | 0.03 amp |
| Profondeur | 11-1/2 in (29.21 cm) |
| Coquille de diamant (O/N) | No |
| Fonction | P2 |
| Hauteur | 11-1/2 in (29.21 cm) |
| Trousse (O/N) | Yes |
| Del | Yes |
| Longueur | 18 in (45,72 cm) |
| Couleur des lentilles | Yellow |
| Lentille - Hauteur | 47/64 in (1.85 cm) |
| Matériau de la lentille | Polycarbonate |
| Forme de lentille | Round |
| Lentille - Largeur | 47/64 in (1.85 cm) |
| Matériel | Polycarbonate |
| Diamètre du connecteur de montage (po) | 3/4 in (1.91 cm) |
| Couleur du support/garniture | Black |
| Matériau de montage/garniture | Rubber |
| Type de support | Grommet Mount |
| Nombre de Diodes/Ampoules | 1 |
| Nombre de câbles | 3 |
| Fiche #1 | Hardwired |
| Fiche #2 | .180 Bullet |
| Type de produit | Marker Clearance Light |
| Réfléchissant (O/N) | No |
| Séries | 33 Series |
| Forme | Round |
| Standard | CMVSS108 |
| Style | Yellow With Grommet, Slim-Line .180 Connectors |
| Technologie | LED |
| Code VMRS | 034-004-021 |
| Volt | 12V |
| Width | 1-3/32 in (2.77 cm) |
| Wire Gauge | 18 ga |
Interchanges & Equivalent parts:
| 33206Y |
| 33206YTLT |
