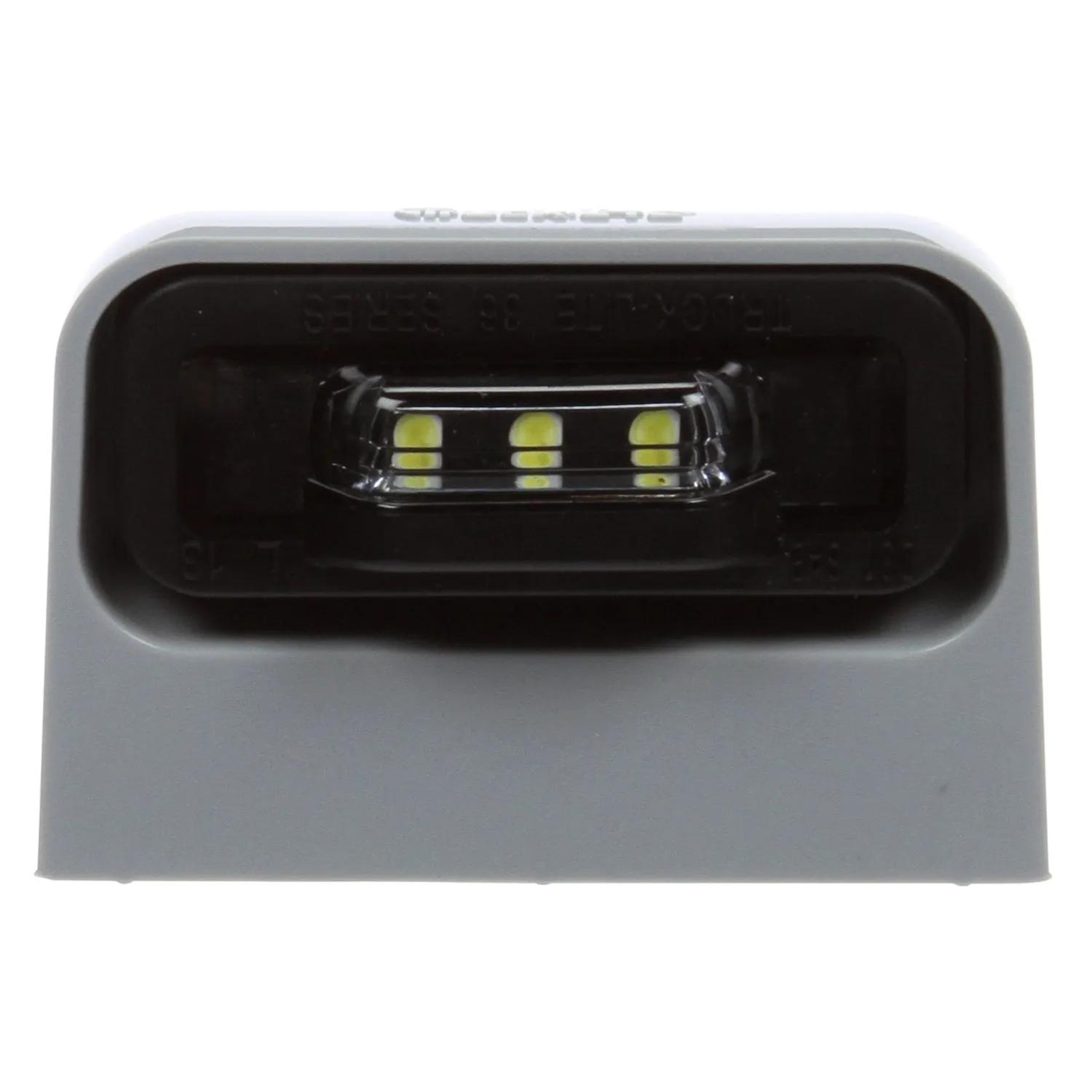

License Light, Clear, Rectangular
#TRL36041C
Product Overview
36 Series, LED, 3 Diode, License Light, Rectangular, Gray Bracket Mount, Hardwired, .180 Bullet, 12-24V, Kit
Features & Benefits
- LED's draw much less current and are rated at 100,000 hours
- Electronics are completely sealed in epoxy to resist damage caused by moisture, corrosion, shock and vibration
- When properly mounted the lamps are designed to confirm to the applicable requirements of FMVSS108
- Polycarbonate lens, over-molded thermoplastic resin housing, 20 gauge wire measureing 9.25"
- LED light source is designed at 13.5 volt, 0.04 amp
- Kit includes LIT36140C lamp with hard wired .180 molded bullet and 36710 gray bracket
- Made in USA
Specifications
| Ampères | 0.05 amp |
| Couleur | Blanc |
| Taille commune | 1 in (2.54 cm) |
| Contient | Lampe et support |
| Profondeur | 3/4 in (1.91 cm) |
| Coquille de diamant (O/N) | Non |
| Distance entre les trous de montage | 1-7/16 po (3,66 cm) |
| Hauteur | 33/64 in (1.32 cm) |
| Couleur du boîtier | Gris |
| Trousse (O/N) | Yes |
| Lentille - Hauteur | 9/16 po (1,42 cm) |
| Matériau de la lentille | Polycarbonate |
| Lentille - Largeur | 1-1/2 po (3,81 cm) |
| Plaque d'immatriculation Ampoule - Dimension | 1-7/8 po (4,78 cm) |
| Matériel | Polycarbonate |
| Type de support | Montage par support |
| Nombre de câbles | 2 |
| Fiche #1 | PL-2 (Stripped End) |
| Fiche #2 | .180 Bullet, Standard |
| Type de produit | License Light |
| Séries | 36 Series |
| Forme | Rectangle |
| Standard | FMVSS 108, NSVAC 108, DOT, SAE, ECE |
| Technologie | LED |
| Type | Truck, trailer, all commerical vehicles |
| Code VMRS | 034-002-042 |
| Volt | 12V et 24V |
| Largeur | 1-7/8 in (4.78 cm) |
| Calibre de(s) fil(s) | 20 ga |
Interchanges & Equivalent parts:
| 36041C |
| 8413-36041C |
| TL 36041C |
