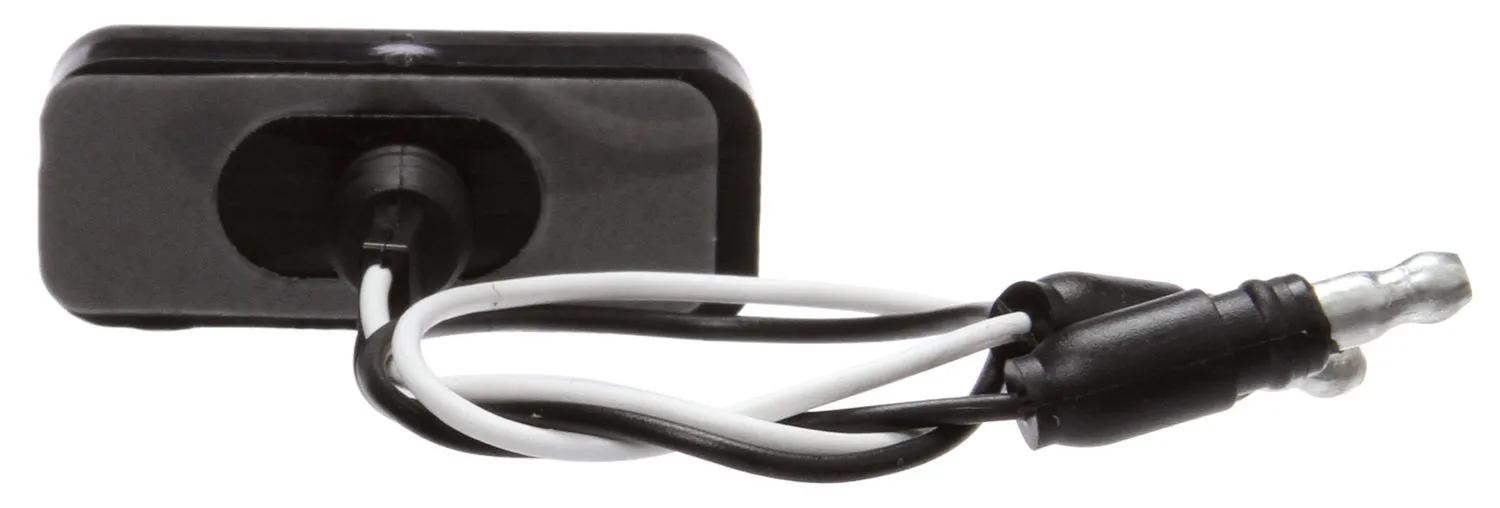

License Light, Rectangular, Le: 33/64 in
#TRL36140C
Product Overview
36 Series, Rear Exit Wires, LED, 3 Diode, License Light, Rectangular, Adhesive Mount, Hardwired, .180 Bullet, 12-24V
Features & Benefits
- Gray & Black Brackets Are Available If Preferred Over Surface Mount, LIT36710 & LIT35711.
- Omnivolt 12 - 24 Volt Technology. Hard Wired w/ Rear Exit Wires Complete w/ .180 Molded Bullets.
- LEDs Draw Much Less Current & Are Rated At 100,000 Hours. Electronics Are Completely Sealed In Epoxy To Resist Damage Caused By Moisture, Corrosion, Shock & Vibration.
- When Properly Mounted The Lamps Are Designed To Confirm To The Applicable Requirements Of FMVSS108.
- Material Is Polycarbonate Lens, Over Molded Thermoplastic Resin Housing, 20 Gauge Wire Measure 9 - 1/4".
- Light Source Light Emitting Diodes (LED) Designed From 13.5 To 28 Volt, Current Draw Ranges From 0.04 To 0.05 Amp.
- FMVSS SAE Code: L
Specifications
| Amps | 0.05 amp |
| Application | License |
| Bulb Type | LED |
| Color | Clear |
| Common Size | 1 in (2.54 cm) |
| Contents | Lamp |
| Depth | 3/4 in (1.91 cm) |
| Diameter | 1-7/8 in (4.78 cm) |
| Diamond Shell (Y/N) | No |
| Height | 33/64 in (1.32 cm) |
| Housing Color | Black |
| Kit (Y/N) | No |
| Lamp Type | LED |
| Length | 33/64 in (1.32 cm) |
| Lens Height | 9/16 in (1.42 cm) |
| Lens Material | Polycarbonate |
| Lens Width | 1-31/64 in (3.76 cm) |
| License Plate Light Size | 1-7/8 in (4.78 cm) |
| Material | Polycarbonate |
| Mount Type | Adhesive Mount |
| Number Of Wires | 2 |
| Packaging | Polybag |
| Plug Side One | Hardwired |
| Plug Side Two | .180 Bullet |
| Product Type | License Light |
| Series | 36 Series |
| Shape | Rectangular |
| Standard | FMVSS 108, CMVSS 108, DOT, SAE, ECE |
| Technology | LED |
| VMRS Code | 034-002-042 |
| Width | 1-7/8 in (4.78 cm) |
| Wire Gauge | 20 ga |
