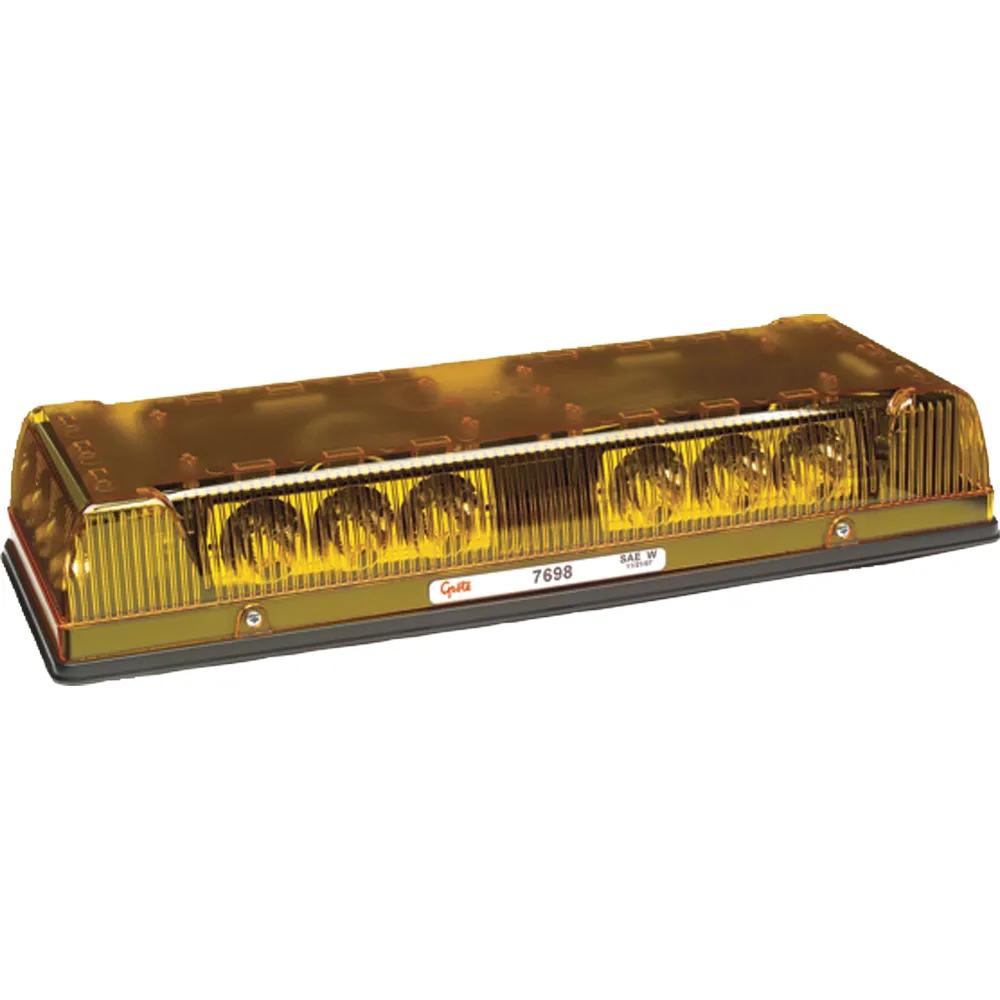

Light Bar, Mini, Low Profile LED, Amber Lens, Polycarbonate, 17 in, Permanent Mount, Class I SAE
#GRO76983
Product Overview
A low profile LED mini light bar designed for high performance warning and signaling across various special applications. Features a built-in electronic flasher with 30 selectable Scan-Lock™ flash patterns. Permanent mount with 14 1/16" x 3 7/16" hole centers for secure installation. Constructed with durable polycarbonate and an amber lens for optimal visibility.Light Bar, Mini, Low Profile, Blunt Cut Connection Type, LED, Permanent Mounting, Amber Lens, Polycarbonate, 1.2 A Current Rating, Class I SAE, Rectangular, 17 in, SAE J845 Standards, 12 V, 1 Year Warranty, 2.87 in Height, 6.32 in Length
Features & Benefits
- 6 LED Modules, ActionScan Default Flash Pattern
- Mounting hardware and detailed instructions included
- Integrated 6 LED modules deliver 360° light output in a compact design
- Built-in electronic flasher with 30 selectable Scan-Lock™ flash patterns
- Permanent mount with 14 1/16" x 3 7/16" hole centers for secure installation
- Includes 6 in pigtail
- Low-profile light bar provides high performance characteristics of LED lighting in a small size
- Six internal LED modules provide 360° light output
Specifications
| Ampères | 10,2 A |
| Atténuation automatique | Oui |
| Style de base | Fermé |
| Vérification de la batterie | Oui |
| Couleur | Ambre |
| Communication | Oui |
| Contient | Faisceau de câbles de 6 po |
| Finition | Clair |
| Modèle de flash | 30 |
| Hauteur | 3 po |
| Del | Oui |
| Longueur | 15-19/64 po |
| Couleur des lentilles | Ambre |
| Sortie de la lumière | 2700 lm |
| Lumens (lm) | 2700 lm |
| Matériel | Polycarbonate |
| Type de support | Montage permanent |
| Profil | Profil bas |
| SAE Class | Classe I |
| Shape | Rectangulaire |
| Size | 17 po |
| Standard | SAE J845 |
| Technology | DEL |
| Thermal Management | Oui |
| Type | Mini barre lumineuse |
| VMRS Code | 034-001-021 |
| Warranty | 1 an |
| Weight | 6 lb (2,72 kg) |
| Width | 8,4 po |
| Connection Type | Coupe franche |
| Current Rating | 10,2 A |
| Light Type | DEL |
| Mounting Type | Permanent |
| Standards | SAE J845 |
| Voltage Rating | 12 V |
| Product Category | Barre lumineuse |
Interchanges & Equivalent parts:
| 76983 |
| 16211 |
| 76983J |
| GRO76983J |
| 454101HL-02 |
| 76983GR0 |
| GRO 76983 |
| GRO76983 |
| ZBJD76983 |
| 126-67085A-8 |
| 7376-76983 |
| 580040 |
| 590171 |
| 9-152 |
| 9-208 |
