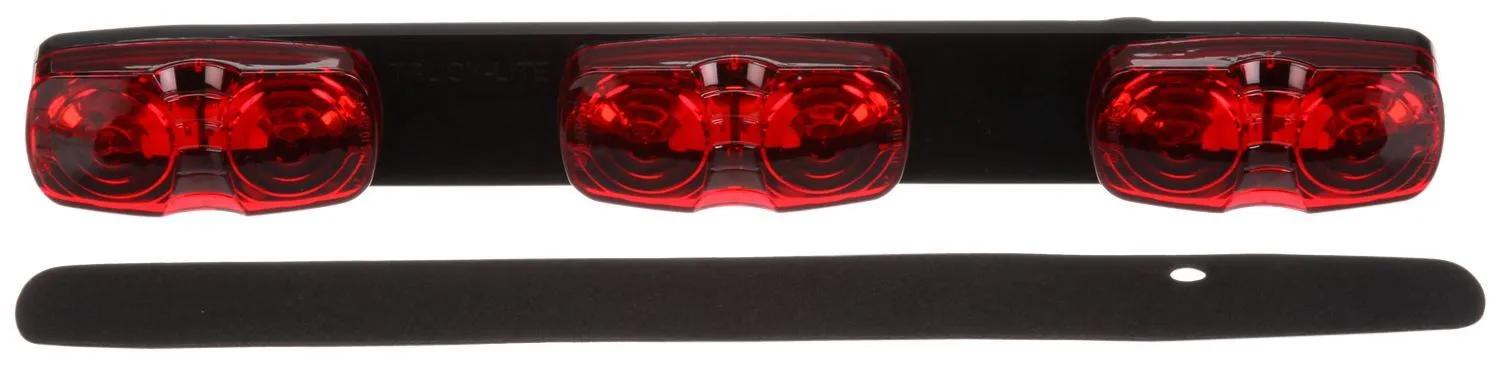

Light Bar, Red, Incandescent
#TRL1215
Product Overview
Signal-Stat, Incandescent, Identification Bar, Rectangular, Red, 3 Lights, Black, 12V, Kit
Specifications
Amps | 2 amp |
Color | Red |
Connection | Blunt Cut |
Contents | Identification Bar, Lamps, Wiring |
Current Major | 0.33 amp |
Depth | 2 in (5.08 cm) |
Fits Pigtail Part #(s) | Hard Wired |
Function | P2, P3 |
Height | 16 in (40.64 cm) |
Includes | Lamp |
Includes Gasket | No |
Kit (Y/N) | Yes |
Lamps Included | Yes |
Lamp Type | Model 26 Plastic ID Bar |
Length | 16 in (40.64 cm) |
Lens Material | Acrylic |
Lens Width | 4 in (10.16 cm) |
Material | ABS |
Mount Type | Bracket Mount |
Number Of Wires | 1 |
Packaging | Boxed |
Plug Side One | Hardwired |
Plug Side Two | Stripped End |
Product Type | Identification Bar |
Regulations | FMVSS 108 |
Series | Signal-Stat |
Shape | Square |
Standard | FMVSS 108, CMVSS 108, DOT, SAE |
Style | Low Profile |
Technology | Incandescent |
VMRS Code | 034-004-149 |
Volt | 12 V |
Weight | 0.46 lb (0.21 kg) |
Width | 1/8 in (0.33 cm) |
Wire Gauge | 18 ga |
Wire Length | 3 in (7.62 cm) |
Interchanges & Equivalent parts:
49072, 49082, 1215, 84131215, 841326742R, SIG1215, TL1215, TLD1215, LB2040R, 28829103, 1215, 26742R, 1215S1G, 8413-1215, LIT1215, LT708R, SIG 1215, TL 1215, TL1215, TLD1215, 1812420700, LB2040R, 193904, SIG1215, 28829103, 193904, LB2040R, TL1215, TLD1215, 1215, 84131215, 841326742R, 1215, 49082, 49072, 26742R, TL 1215, SIG 1215, 8413-1215, 1215S1G, LIT1215, TL1215, LT708R, TLD1215, 1812420700, LB2040R, HLC1071655
