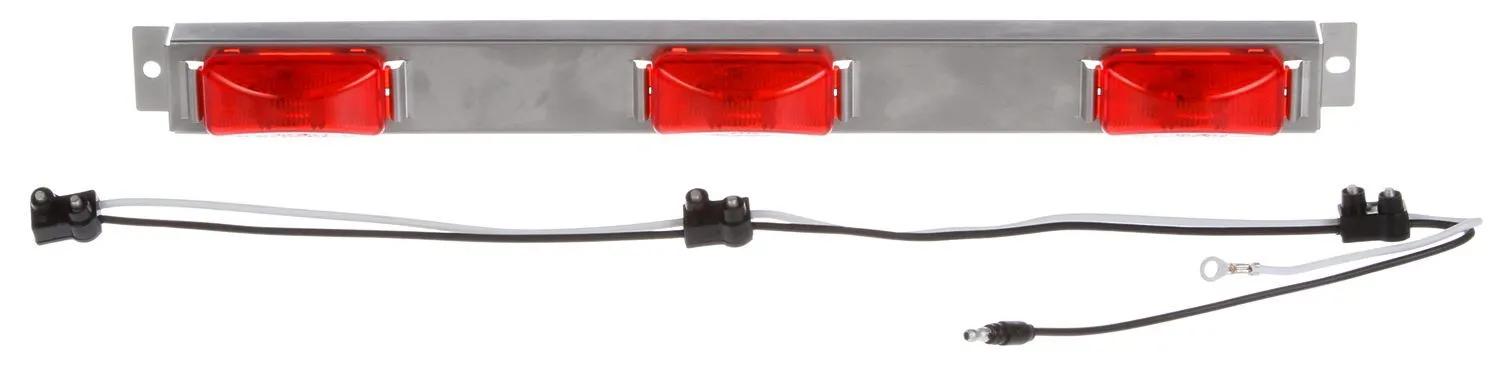

Light Bar, Red, Incandescent
#TRL15741R
Product Overview
15 Series, Incandescent, Identification Bar, Rectangular, Red, 3 Lights, 6" Centers, Silver, 12V, Kit
Specifications
| Center Distance | 6 in (15.24 cm) |
| Color | Red |
| Contents | Identification Bar, Lamps, Wiring |
| Current Major | 0.33 amp |
| Depth | 1-19/32 in (4.04 cm) |
| Fits Pigtail Part #(s) | 93943 |
| Height | 1-3/8 in (3.51 cm) |
| Includes Gasket | No |
| Kit (Y/N) | Yes |
| Lamp Screw Hole Diameter | 7/32 in (0.56 cm) |
| Lamps Included | Yes |
| Lamp Type | Model 15 Steel ID Bar |
| Length | 16-1/2 in (41.91 cm) |
| Lens Material | Polycarbonate |
| Lens Width | 2-31/64 in (6.3 cm) |
| Material | Polycarbonate |
| Mount/Trim Material | Stainless Steel |
| Mount Type | Bracket Mount |
| Number Of Wires | 2 |
| Packaging | Boxed |
| Plug Side One | PL-10 |
| Plug Side Two | .180 Bullet |
| Product Type | Identification Bar |
| Series | 15 Series |
| Shape | Rectangular |
| Standard | FMVSS 108, CMVSS 108, DOT, SAE |
| Technology | Incandescent |
| VMRS Code | 034-004-149 |
| Volt | 12 V |
| Weight | 0.7 lb (0.32 kg) |
| Width | 16-1/2 in (41.91 cm) |
| Wire Gauge | 14 ga |
| Wire Length | 6 in (15.24 cm) |
Interchanges & Equivalent parts:
49172, 3099909, 5692601B, BD81005X, TL15741R, HT50602159, TRU15741R, 15741R, 15741R3, TL15741R, 253-3531, 2533531, MNC253-3531, TRU15741R, 073-00-012, 15741R-TL, 55620101, 5692601, 8413-15741R, LIT15741R, LT716R, PM1073R, PT1550R, TL 15741R, TL 15741R, TL15741R, TLD15741R, 1073R, 1503R, 1515, LB1225R, TKL15741R, 713531, T15741R3, TRU15741R, 5692601B, 49172, 3099909, 15741R, 15741R3, HT50602159, TL15741R, T15741R3, BD81005X, TL15741R, 2533531, TRU15741R, MNC253-3531, 253-3531, PT1550R, LT716R, 8413-15741R, TL15741R, TLD15741R, 073-00-012, TL 15741R, LIT15741R, 5692601, 15741R-TL, PM1073R, 55620101, TL 15741R, 1515, LB1225R, 1073R, 1503R, 713531, TKL15741R
