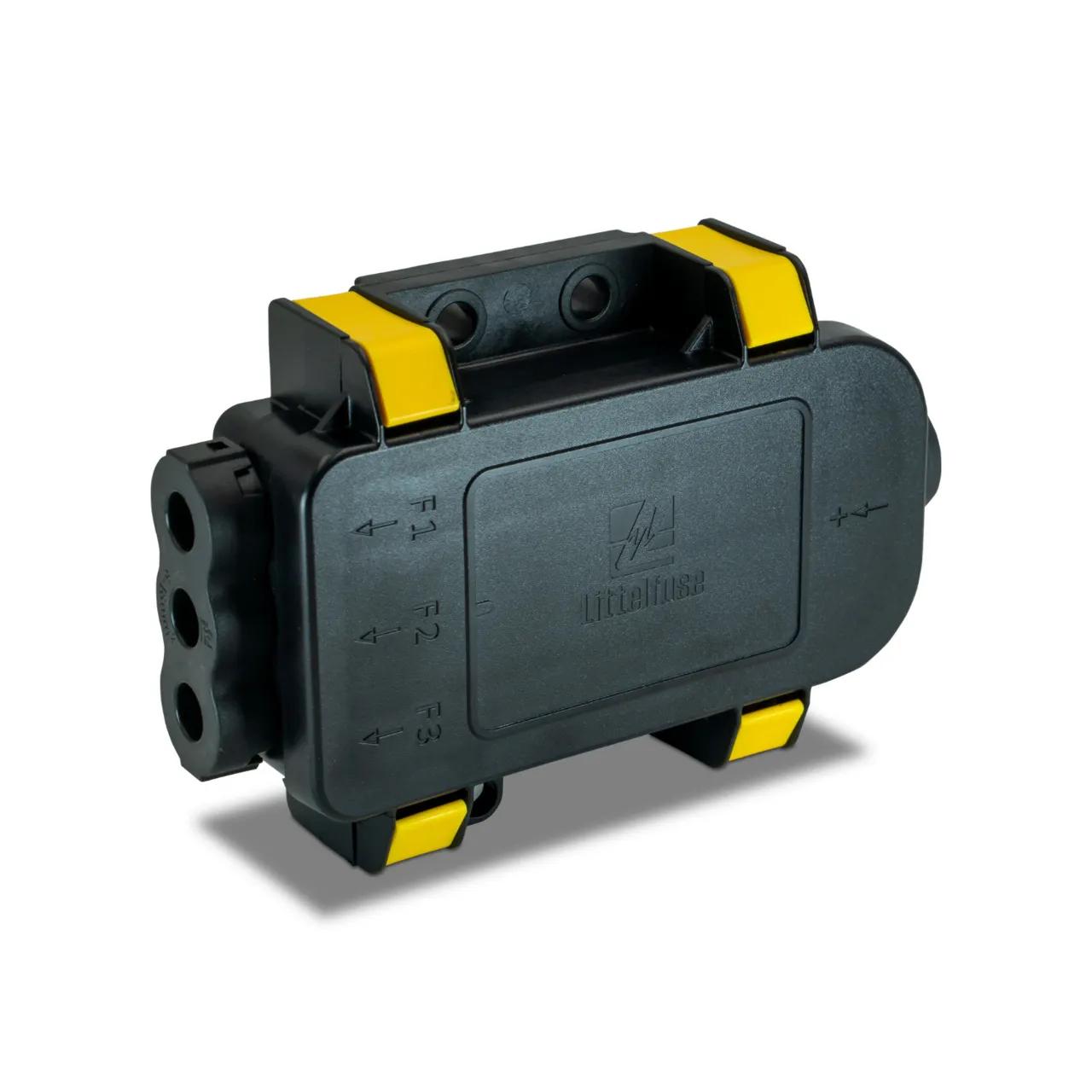

Littelfuse Fuse Power Distribution Box, MIDI Fuse, Bolt Mounting, M5 Stud Terminal, Black, Thermoplastic Housing, 200 A, 3 Pole, -40 to 85 °C, 58 VDC
Product Overview
The MDB Series 58 V 200 A waterproof MIDI® fuse power distribution box is an internally bussed fuse holder designed for the high current loads and harsh conditions typically seen in applications such as construction vehicles and agricultural equipment. Effectively acting as a power distribution module, this rugged fuse box (04980933.X) holds three MIDI® or BF1 fuses (sold separately) and includes caps and seals to meet your application requirements. The sealed, waterproof fuse box carries IPX7 and IPX9K ratings, making it ideal for applications close to the battery or for mounting in exposed locations. To keep the sealed cover securely in place, the MDB series fuse holder features AssureLatch™ yellow positive-sealing latches.Fuse Power Distribution Box, MIDI Fuse, Bolt Mounting, M5 Stud Terminal, Black, Thermoplastic Housing, 200 A, 3 Pole, -40 to 85 °C, 58 VDC, For Construction Vehicles, Agricultural Equipment, High Current Loads
Features & Benefits
- 3-pole fuse holder configuration accepts MIDI® fuses (sold separately)
- Includes a 4 AWG input seal and a 4 AWG input cap
- Comes with two 8-10 AWG output seals, three 6-8 AWG output seals, one cavity plug and one output cap
Specifications
| Application | Construction Vehicles, Agricultural Equipment, High Current Loads |
| Color | Black |
| Current Rating | 200 A |
| Fuse Type | MIDI |
| Housing Material | Thermoplastic |
| Mounting Type | Bolt |
| Number of Poles | 3 |
| Operating Temperature | -40 to 85 °C |
| Terminal Type | M5 Stud |
| Voltage Rating | 58 VDC |
| Manufacturer Part Number | 04980933.X |
| Product Category | Fuse Power Distribution Box |
