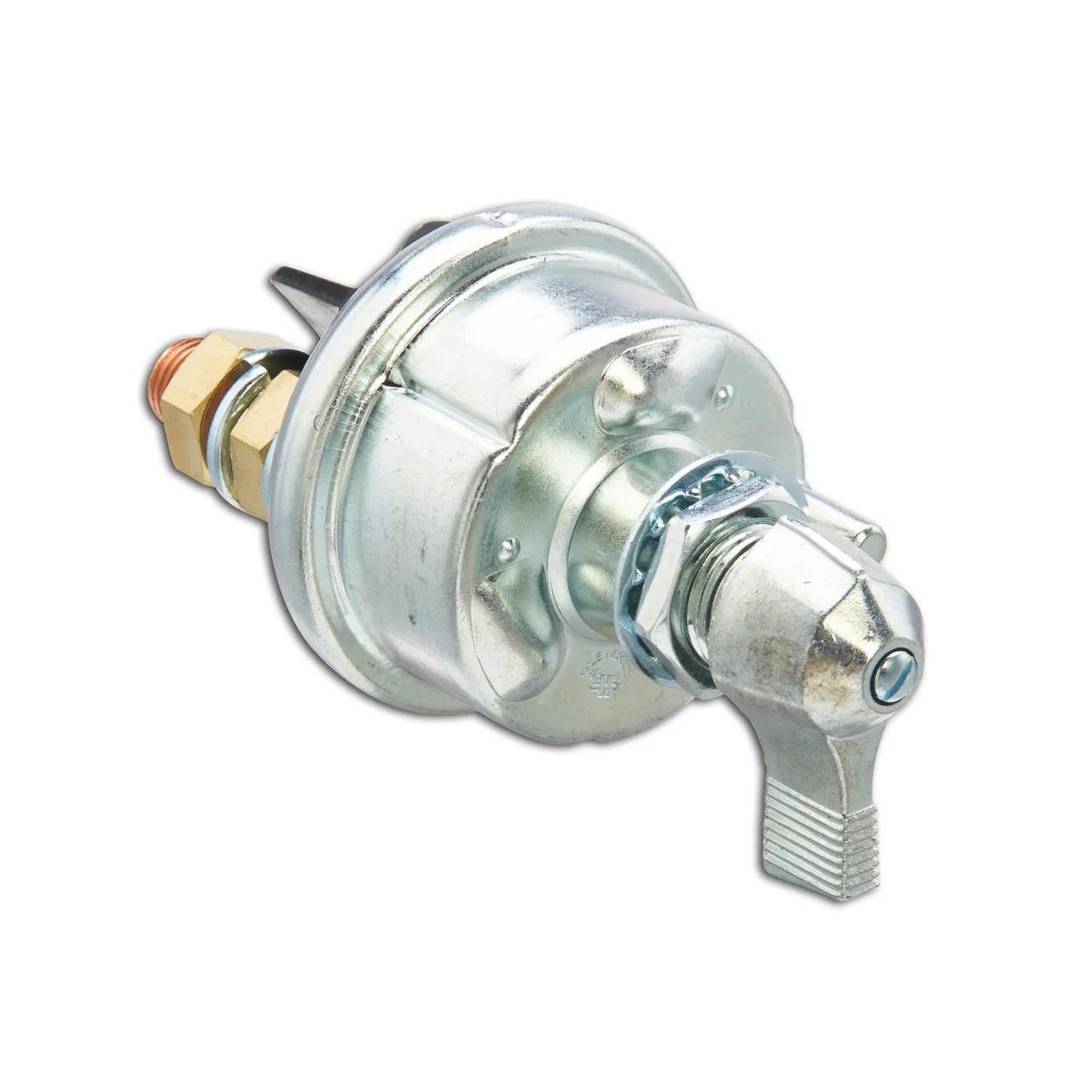

Littelfuse Rotary 2-Position Master Disconnect Switch, 300A 36V Lever Actuator
#LIF75908
Product Overview
Designed for quickly disconnecting the battery from a vehicle's electrical system, this heavy-duty Littelfuse rotary master disconnect switch features a 2-position lever actuator and a sealed, plated-steel housing. Rated for 300 A continuous current and 36 V, it ensures safe system shutdown during maintenance and helps prevent thermal events. Ideal for heavy-duty trucks, construction, emergency vehicles, buses, transit, and agricultural applications.Disconnect Switch, Lever Actuator, Through-Hole Mounting, Steel, SPST Contact Form, 300 A Current Rating, IP54/IPX7, IP66/IP67 IP Rating, 1 Poles, 2 Position, 3/4-16 Stem, 36 V
Features & Benefits
- Continuous current rating of 300 A
- Intermittent current rating of 2000 A at 30 seconds ON, 3 minutes OFF
- Sealed to an IP66/IP67 rating
- Lever actuator
- Indexing and alignment pin
- CE Logo
Specifications
| Material | Steel |
| Type | Rotary |
| Contact Form | SPST |
| Current Rating | 300 A |
| IP Rating | IP66/IP67 |
| Mounting Type | Through-Hole |
| Number of Poles | 1 |
| Position | 2 |
| Stem Size | 3/4-16 |
| Voltage Rating | 36 V |
| Product Category | Disconnect Switch |
Interchanges & Equivalent parts:
| COL75908 |
