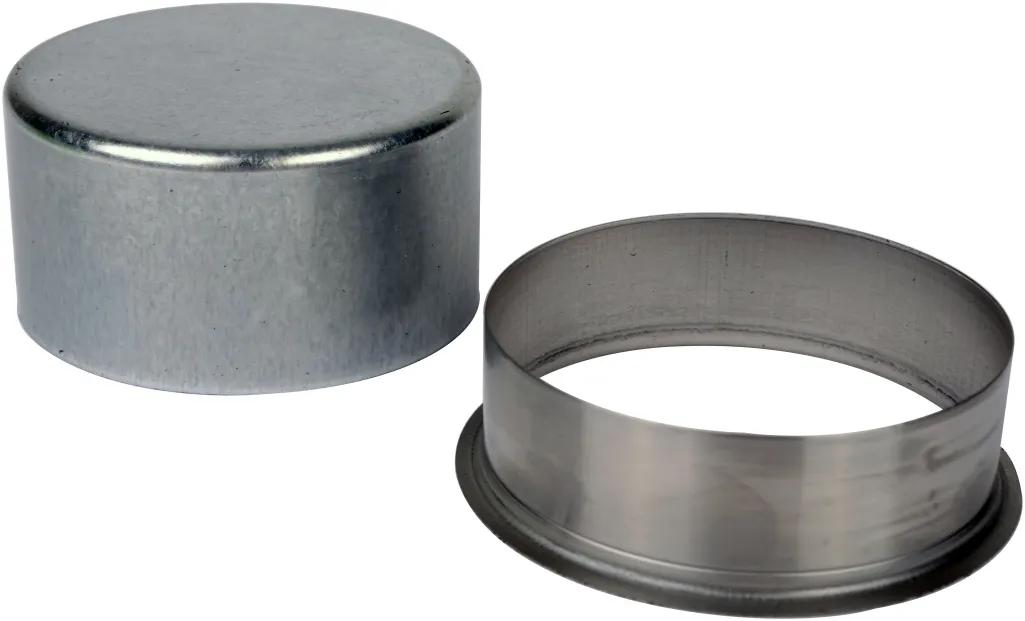

M/Trsax Input Speedi-Sleeve
#SKF99092
Product Overview
Our Speedi Sleeves Repair Scored to Restored in a Few Minutes With a Few Easy Steps With No Special Tooling.
Features & Benefits
Features & Benefits
SKF99092 - Features Documents - A
SKF99092 - Features Documents - B
SKF99092 - Features Documents - C
SKF99092 - Features Documents - D
SKF99092 - Features Documents - E
- Although Installation is Simple, it Should be Done Carefully to Achieve the Best Results.
- Before Starting, the Sealing Zone of the Shaft Should be Carefully Cleaned and Any Burrs or Rough Spots Should be Filed Down and Polished.
- Deep Wear Grooves, Scratches or Very Rough Surfaces Should be Treated With a Suitable Powdered Metal Epoxy Filler.
- The Sleeve Must be Positioned on the Shaft Before the Filler Has Hardened.
- It Should Also be Noted that Although Speedi Sleeves Can be Easily Installed Within Minutes on Most Shafts.
- They Should NOT Be Placed Over Splines or Keyways, etc on the Shaft.
- Commonly Used on End Yokes, Input/Output Shafts, Crankshafts, Camshafts, Accessory Drive Shafts, or Wherever Needed to Alleviate Additional Costs and Downtime.
- A Mallet or Rubber Hammer is Commonly Used to Drive the Sleeve on the Shaft With an Enclosed Driver Tool.
- Instructions Included With Most All of Our Speedi Sleeves.
- Manufactured to Meet or Exceed O.E.M. Specifications in Function, Form & Fit.
Specifications
| Compatible avec le diamètre de l'arbre | .940 in. To .945 in. / 23.87 mm To 24.00 mm |
| Diamètre de bride | 1-1/8 in (2.87 cm) |
| Épaisseur | 5/16 in (0.79 cm) |
Interchanges & Equivalent parts:
| 145899092 |
| CR99092 |
| 965899092 |
| 99092 |
| 99092CHR |
| CHR99092 |
| N99092 |
| ZAR99092 |
| 4135016100 |
| 27SR5016 |
