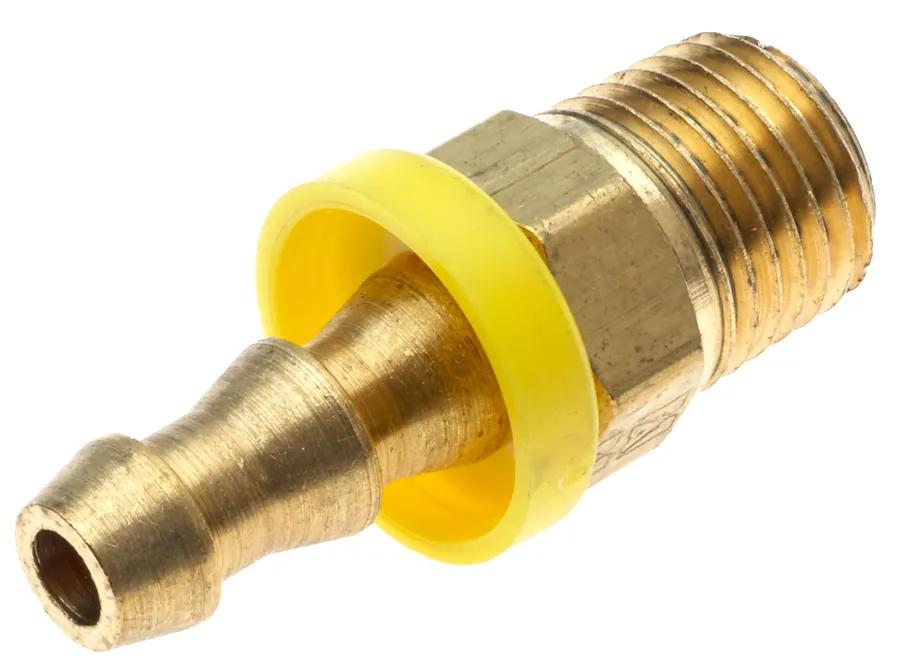

Male Pipe with Cone Seat (LOC & LOL Hose)
#GATG36100-0608
Product Overview
Recommended for Fuel Lines, Fluid Lines or Vacuum Lines in Low & Medium Pressure Applications. Lock-On Barbed Stem Fittings Are Quick Connecting & Resistant to Damage From High Vibration Diesel Applications.
Features & Benefits
- For Use w/ Gates LOC & LOL Hose.
- These Fittings Are Field Attachable and Require the Minimal Amount of Tools to Install.
- Manufactured to Meet or Exceed O.E.M. Specifications in Function, Form & Fit.
- Hose Clamps or Ferrules Are Not Needed or Recommended.
- Don't Forget the Hose, We Offer Push Lock / Lock on Style Hose in a Variety of Colors.
Specifications
| Cut Off (in) – C | 7/8 in (2.24 cm) |
| Cut Off (mm) – C | 22.4 mm |
| Degree of Bend | None (Straight) |
| Fits Hose Size | 3/8 in (0.97 cm) |
| Thread Size | 1/2 in. MPT |
| Fixed or Swivel Type | Fixed |
| Hose I.D. (mm) | 9.5 mm |
| Hose Recommendation | Gates LOC 1-Fiber Braid Lock-On; LOL Plus Lock-On |
| Industrial Description | 6LOC-8RMP |
| Material | 360 Brass |
| Maximum Pressure | 300 psi (20.68 bar) |
| Maximum Working Pressure (PSI) | 300 PSI |
| Temperature | -40°F @ +250°F (-40°C @ +121°C) |
| Temperature Range | -40 Deg, F to +250 Deg, F (-40 Deg, C to +121 Deg, C) |
| Thread Type | Pipe Thread |
| Weight | 0.1 lb (0.05 kg) |
