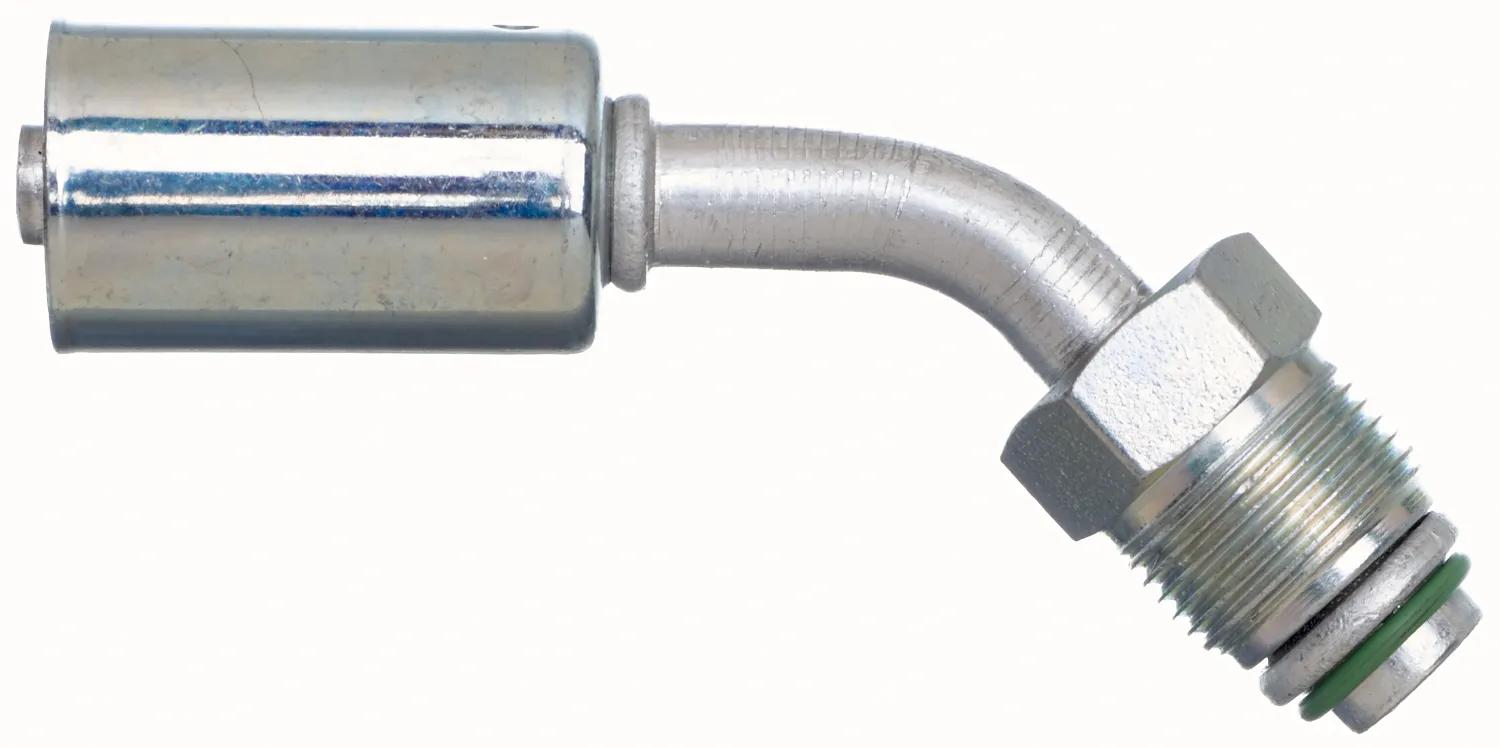

Male SAE Tube O-Ring Nut - 45 Bent Tube - Aluminum (PolarSeal ACA)
#GATG45584-0606
Product Overview
PolarSeal ACA Couplings Are For Use w/ Gates PolarSeal Air Conditioning Hose.
Features & Benefits
- 4 Sizes of O-Rings specially compounded for R134A refrigerants also available
- 75 coupling families ensure the right connection
- Available in Various Bend Angles & Common Stem Sizes -6, -8, -10 & -12.
- Available in straight, 45°,and 90° styles
- O-Ring Not Included. Must Be Ordered Separately.
- Utilize Gates PolarSeal Portable Crimper, or One of Gates Bench Top Crimpers, to Make Crimped AC Assemblies Using ACA Couplings & PolarSeal Hose.
Specifications
| Coupling Description | PolarSeal ACA Male SAE Tube O-Ring Nut - 45 Bent Tube - Aluminum |
| Cut Off (in) – C | 1-15/16 in (4.93 cm) |
| Drop (in.) | 7/8 in (2.24 cm) |
| Hose Recommendation | Gates PolarSeal Refrigerant Hose |
| Industrial Description | 6ACA-6MTON45 |
| Inside Diameter | 5/16 in (0.79 cm) |
| Length | 3-3/16 in (8.1 cm) |
| Note | O-Ring not included. Must be ordered separately. |
| OEM Part # | G45584-0606 |
| Product Number | 733200475 |
| Series | PolarSeal ACA Male SAE Tube O-Ring Nut Swivel - Aluminum |
| Type | PolarSeal ACA Male SAE Tube O-Ring Nut Swivel - Aluminum |
Interchanges & Equivalent parts:
| 50703-0606 |
| 507030606 |
| GYH50703-0606 |
| G45584-0606 |
| 733200475 |
