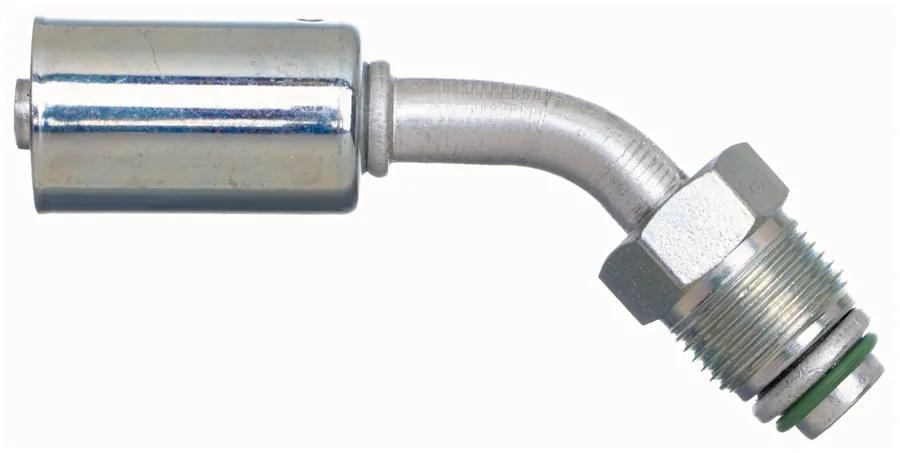

Male SAE Tube O-Ring Nut - 45 Bent Tube - Aluminum (PolarSeal ACA)
#GATG45584-1010
Product Overview
PolarSeal ACA Couplings Are For Use w/ Gates PolarSeal Air Conditioning Hose.
Features & Benefits
- Available in Various Bend Angles & Common Stem Sizes -6, -8, -10 & -12.
- O-Ring Not Included. Must Be Ordered Separately.
- Offered in Many of the Most Popular Styles of Aluminum Couplings w/ Select Styles Available in Zinc-Plated Steel.
- Utilize Gates PolarSeal Portable Crimper, or One of Gates Bench Top Crimpers, to Make Crimped AC Assemblies Using ACA Couplings & PolarSeal Hose.
Specifications
| Coupling Description | PolarSeal ACA Male SAE Tube O-Ring Nut - 45 Bent Tube - Aluminum |
| Cut Off (in) – C | 2-9/16 in (6.5 cm) |
| Drop (in.) | 1-1/16 in (2.69 cm) |
| Hose Recommendation | Gates PolarSeal Refrigerant Hose |
| Industrial Description | 10ACA-10MTON45 |
| Inside Diameter | 1-1/2 in (3.81 cm) |
| Length | 3-13/16 in (9.69 cm) |
| Series | PolarSeal ACA Male SAE Tube O-Ring Nut - 45 deg Bent Tube - Aluminum |
| Type | PolarSeal ACA Male SAE Tube O-Ring Nut - 45 deg Bent Tube - Aluminum |
Interchanges & Equivalent parts:
| 50703-1010 |
| 507031010 |
| GYH50703-1010 |
| G45584-1010 |
| 733200495 |
