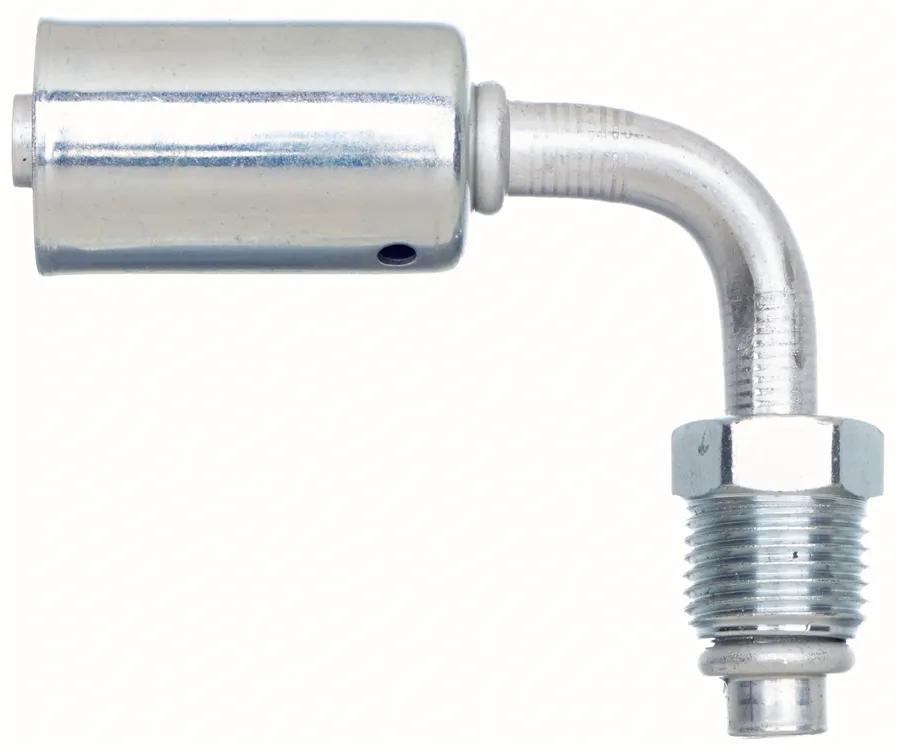

Male SAE Tube O-Ring Nut - 90 Bent Tube - Aluminum (PolarSeal ACA)
#GATG45585-1212
Product Overview
PolarSeal ACA Couplings Are For Use w/ Gates PolarSeal Air Conditioning Hose.
Features & Benefits
- Available in Various Bend Angles & Common Stem Sizes -6, -8, -10 & -12.
- O-Ring Not Included. Must Be Ordered Separately.
- Offered in Many of the Most Popular Styles of Aluminum Couplings w/ Select Styles Available in Zinc-Plated Steel.
- Utilize Gates PolarSeal Portable Crimper, or One of Gates Bench Top Crimpers, to Make Crimped AC Assemblies Using ACA Couplings & PolarSeal Hose.
Specifications
| Coupling Description | PolarSeal ACA Male SAE Tube O-Ring Nut - 90 Bent Tube - Aluminum |
| Cut Off (in) – C | 2 in (5.08 cm) |
| Drop (in) – T | 2.25 |
| Thread Size | 1 1/16-14 |
| Hose Recommendation | Gates PolarSeal Refrigerant Hose |
| Industrial Description | 12ACA-12MTON90 |
| Inside Diameter | 1-1/2 in (3.81 cm) |
| Length | 3-1/4 in (8.26 cm) |
| Length (in) – L | 3.25 |
| Thread | 1-1/16 in-14 |
| Type | PolarSeal ACA Male SAE Tube O-Ring Nut - 90 deg Bent Tube - Aluminum |
