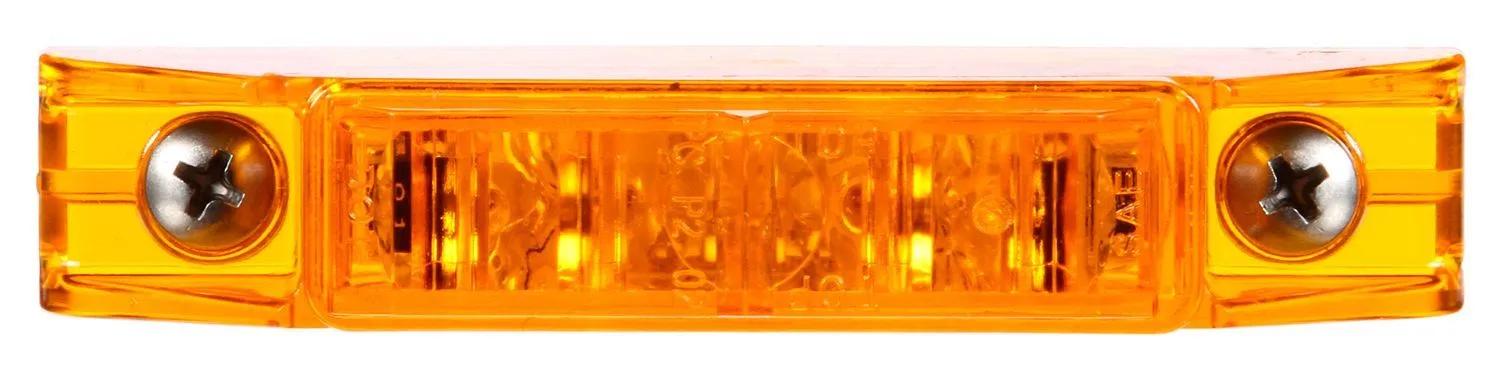

Marker Clearance Light, 5 Diode, 35 Series, LED, Amber Yellow, Rectangular, Polycarbonate, Fit 'N Forget M/C, 12V
#TRL35375Y
Product Overview
35 Series LED marker clearance light with 5 diodes, amber yellow rectangular lens, polycarbonate housing, 2 screw mount, Fit 'N Forget M/C connection, 12V operation. Slim 3/4'' wide design ideal for narrow rail applications. SAE PC-rated for combination clearance/marker use. Must be mounted horizontally. Lifetime limited warranty.Marker Clearance Light, 5 Diode, LED Bulb, Fit 'N Forget M/C, 2 Screw, Polycarbonate, Yellow, 1.16 in H, 0.12 in L, Light Function: P2, PC, 35 Series, Rectangular, 12 V, Warranty: Limited Lifetime, 4 in W
Features & Benefits
- Slim 3/4'' wide design makes lamp perfect solution for narrow rail designs
- SAE PC-rated for combination clearance/marker applications
- Must be mounted horizontally
- 5 Diodes, .12 Amp, Lifetime Warranty, Slim Design Is Perfect For Narrow Rail Design, Mount Horizontally, Pc Rated For Combination C/m
- Limited Lifetime Warranty
- Fit 'N Forget M/C connection for easy installation
Specifications
| Bulb Type | LED |
| Common Size | 1 in |
| Connection Type | Fit 'N Forget M/C |
| Contents | Marker Clearance Light |
| Depth | 47/64 in |
| Diamond Shell (Y/N) | No |
| Function | P2, P3 |
| Height | 1-5/32 in |
| Housing Color | Yellow |
| Kit (Y/N) | No |
| Length | 4 in |
| Lens Color | Yellow |
| Lens Material | Polycarbonate |
| Material | Polycarbonate |
| Mounting Type | 2 Screw |
| Mount Type | Grommet Mount |
| Number Of Wires | 2 |
| Plug Side Two | No Plug |
| Quantity | 5 |
| Reflectorized (Y/N) | No |
| Series | 35 Series |
| Shape | Rectangular |
| Standards | FMVSS 108, CMVSS 108, DOT, SAE |
| Technology | LED |
| Type | 5 Diode |
| UPC | 735111000000 |
| VMRS Code | 034-004-253 |
| Voltage Rating | 12 V |
| Warranty | Limited Lifetime |
| Weight | 0.4 lb |
| Width | 4 in |
| Current Rating | 0.12 amp |
| Light Function | P2, PC |
| Product Line | 35 Series |
| Product Category | Marker Clearance Light |
Interchanges & Equivalent parts:
| 10006519 |
| 41312519 |
| 41312584 |
| 14200618 |
| 2209289C2 |
| 1LHT00011 |
| 351000166 |
| 811070 |
| 841335375Y |
| 50600 |
| 47463 |
| OB100145 |
| TL35375Y |
| TLD35375Y |
| TRU35375Y |
| S35AA001 |
| 16513921 |
| 35375Y |
| 8413-35375Y |
| LIT35375Y |
| S35-AA00-1 |
| TL 35375Y |
| TL 35375Y |
| 127-18000A |
| 35375YTLT |

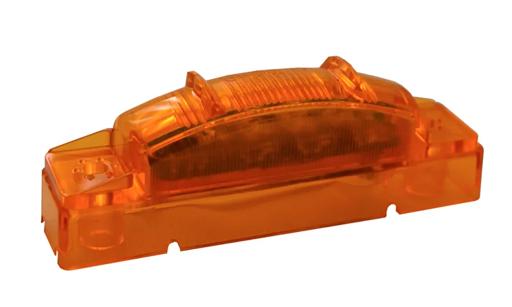

| GRT47463 |
| TKL35375Y |
| V167KA |
| 35375Y3 |
