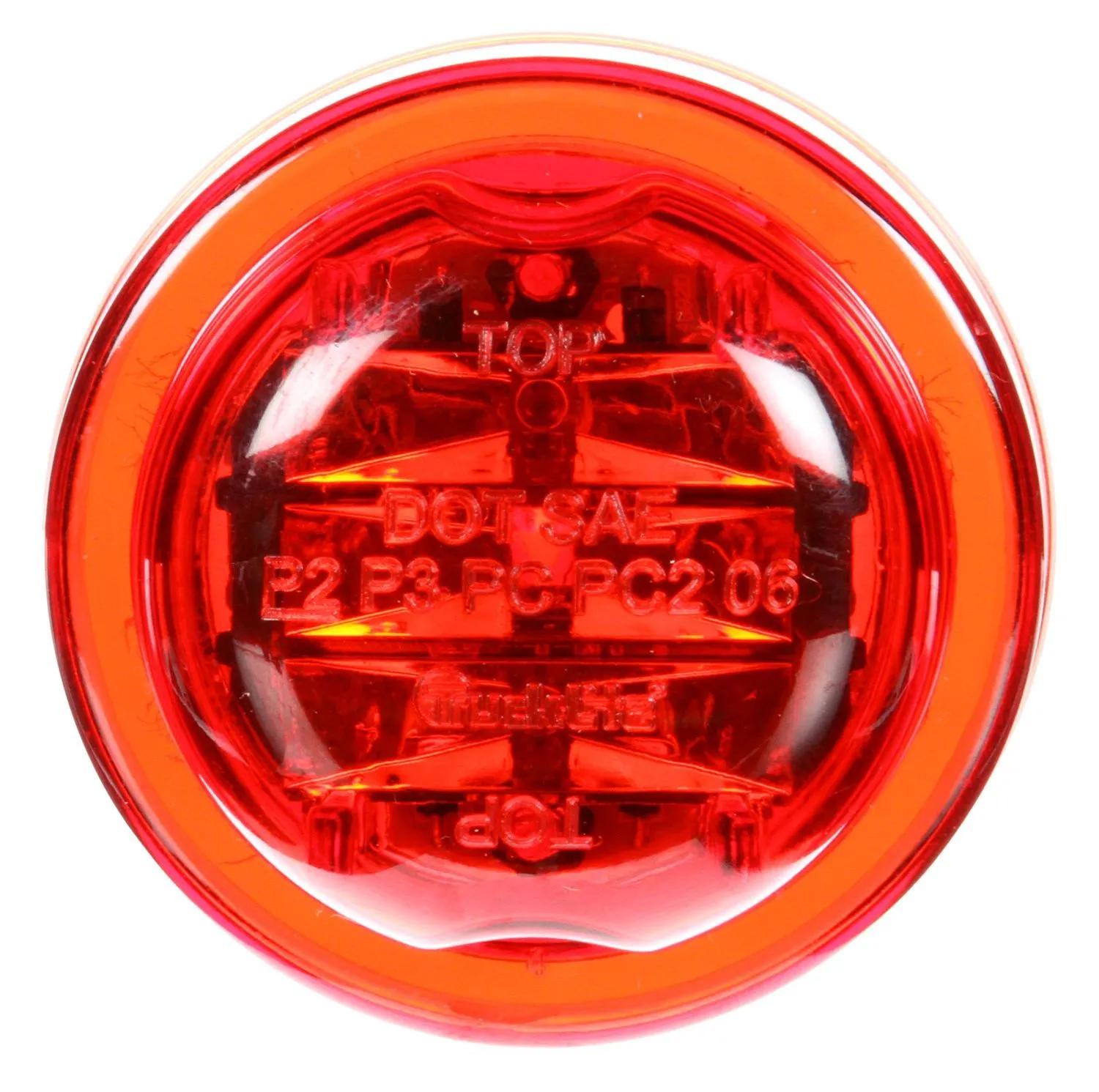

Marker Clearance Light, 8 Diode, High Profile, 10 Series, LED, Red, Round, Polycarbonate, PL-10, 12V
#TRL10275R
Product Overview
10 Series high profile LED marker clearance light with 8 diodes, red round lens, polycarbonate construction, PL-10 connection, designed for 12V systems. SAE PC rated for combined marker and clearance applications, flange gasket available for added protection, electronics sealed in epoxy to resist corrosion and moisture.Marker Clearance Light, 8 Diode, High Profile, LED Bulb, PL-10, Grommet, Polycarbonate, Red, 2.5 in H, 0.1 in L, Light Function: P2, P3, PC, 10 Series, Round, 12 V, Warranty: 3 Years, 2.5 in W
Features & Benefits
- SAE PC Rated, allowing combined marker & clearance applications
- High-Profile design increases light output and improves visibility of vehicle. Most Advanced and cost effective 2.5" Marker & Clearance light on the market.
- Designed with LED lighting technology providing optimal light output and sealed design further protecting against damage from shock and vibration.
- Choose from forget or standard connections, flange gasket available for additional protection, electronics completely sealed in epoxy to resist corrosion and moisture.
Specifications
| Bulb Type | LED |
| Color | Red |
| Common Size | 2-1/2 in |
| Connection Type | PL-10 |
| Contents | Lamp, Flange |
| Diamond Shell (Y/N) | No |
| Height | 2-1/2 in |
| Kit (Y/N) | No |
| Length | 2-1/2 in |
| Lens Color | Red |
| Lens Material | Polycarbonate |
| Material | Polycarbonate |
| Mounting Type | Grommet |
| Mount Type | Grommet Mount |
| Number Of Wires | 2 |
| Quantity | 5 |
| Reflectorized (Y/N) | No |
| Series | 10 Series |
| Shape | Round |
| Standards | FMVSS 108, CMVSS 108, DOT, SAE |
| Technology | LED |
| Type | 8 Diode, High Profile |
| UPC | 735111039129 |
| VMRS Code | 034-004-253 |
| Volt | 12V |
| Voltage Rating | 12 V |
| Warranty | 3 Years |
| Weight | 0.16 lb |
| Width | 2-1/2 in |
| Current Rating | 0.1 amp |
| Light Function | P2, P3, PC |
| Product Line | 10 Series |
| Product Category | Marker Clearance Light |
Interchanges & Equivalent parts:
| 10275R3 |
| 85101788 |
| HT50601595 |
| TRU10275R |
| M163R |
| 10275R-TL |
| 16513679 |
| 8413-10275R |
| LED10PCR |
| LIT10275R |
| TL 10275R |
| TL 10275R |
| TL-10275R |
| TL10275R |
| TLD10275R |
| TLT 10275R |
| 81203 |
| M11260Y |
| M197R |
| TKL10275R |
| 47232 |
| PA12028 |
