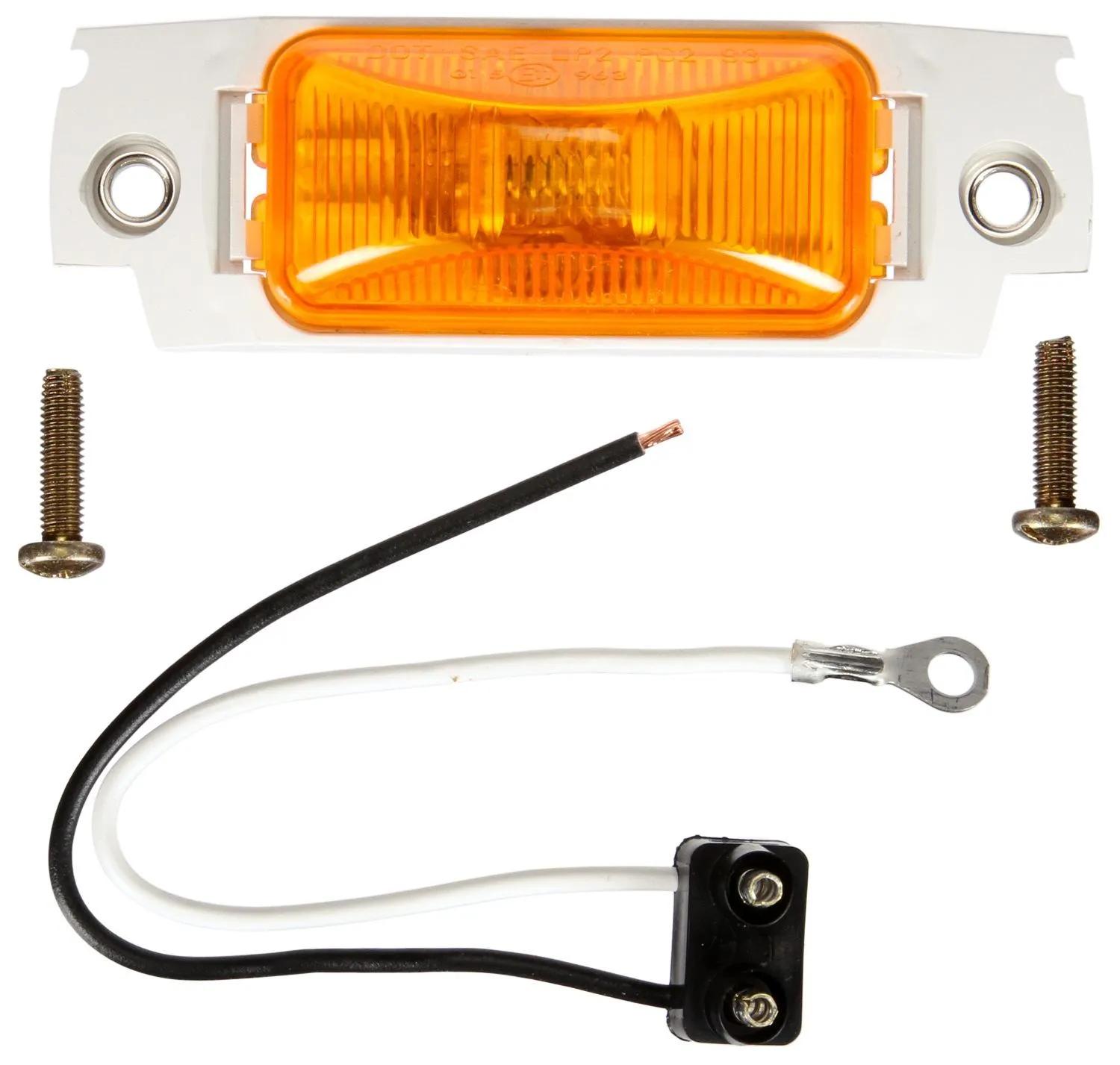

Marker Clearance Light, Amber, Rectangular, Rail Cut Mount
#TRL15006Y
Product Overview
15 Series, Rail Mount, Incandescent, Yellow Rectangular, 1 Bulb, Marker Clearance Light, PC2, White ABS Bracket Mount, PL-10, Ring Terminal/Stripped End, 12V, Kit
Specifications
| Color | Yellow |
| Common Size | 1 in (2.54 cm) |
| Contents | Rail Mount, Lamp, Plug |
| Current Major | 0.33 amp |
| Depth | 15/16 in (2.39 cm) |
| Diamond Shell (Y/N) | No |
| Fits Pigtail Part #(s) | 94924 |
| Height | 1-3/8 in (3.51 cm) |
| Housing Color | White |
| Kit (Y/N) | Yes |
| # Lamp Prongs | 2 |
| Lamp Screw Hole Diameter | 17/64 in (0.69 cm) |
| Lamp Type | Model 15 |
| Length | 2-1/2 in (6.35 cm) |
| Lens Height | 1-13/64 in (3.05 cm) |
| Lens Material | Polycarbonate |
| Lens Width | 2-31/64 in (6.3 cm) |
| Material | Polycarbonate |
| Mount/Trim Material | ABS |
| Mount Type | Rail Cut Mount |
| Number Of Wires | 2 |
| Packaging | Polybag |
| Plug Side One | PL-10 |
| Plug Side Two | Stripped End |
| Product Type | Marker Clearance Light |
| Reflectorized (Y/N) | No |
| Series | 15 Series |
| Shape | Rectangular |
| Standard | FMVSS 108, CMVSS 108, DOT, SAE |
| Technology | Incandescent |
| VMRS Code | 072-002-000 |
| Volt | 12 V |
| Weight | 0.15 lb (0.07 kg) |
| Width | 4-3/8 in (11.13 cm) |
| Wire Gauge | 16 ga |
Interchanges & Equivalent parts:
43370, 15006Y, 46413, 4641343380, 841315006Y, 712212, 71221299, TL15006Y, HT50602134, TLD15006Y, LND73875, LYE10925, TL15006Y, 15006Y, 15001Y, 253-407, 253407, MNC253-407, TRL15001Y, 800-250122A, 8413-15006Y, LIT15006Y, PM95A, SS1551A, TL 15006Y, TL 15006Y, TL-15006Y, TL15006Y, TLD15006Y, TRU15006Y, 1500A, 95A, 46413, 4641343380, 15006Y, HT50602134, LND73875, LYE10925, TL15006Y, TLD15006Y, 841315006Y, 712212, 71221299, 15006Y, TL15006Y, 43370, 15001Y, MNC253-407, TRL15001Y, 253407, 253-407, SS1551A, TL15006Y, TL 15006Y, LIT15006Y, TL-15006Y, TLD15006Y, 8413-15006Y, PM95A, TRU15006Y, 800-250122A, TL 15006Y, 1500A, 95A
