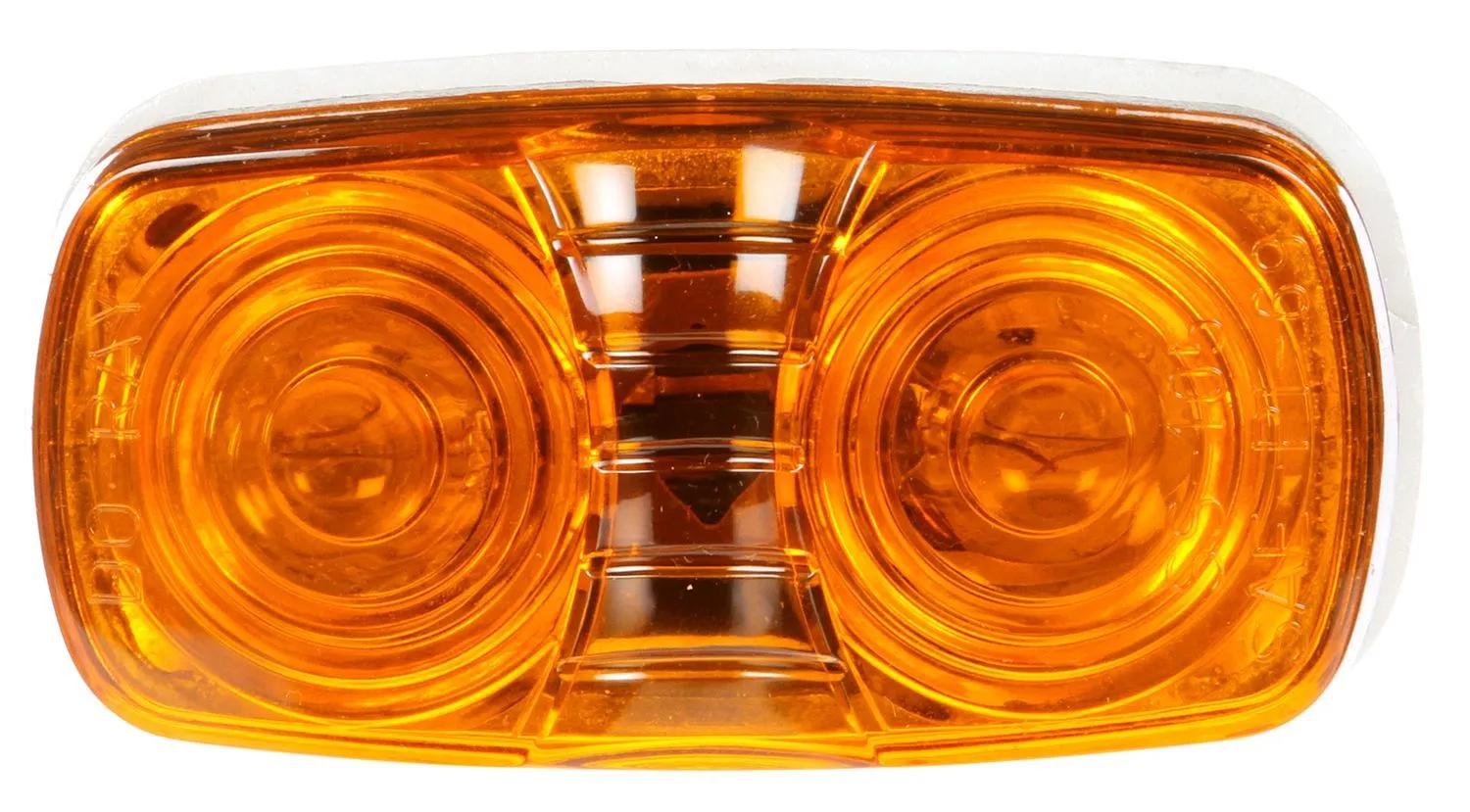

Marker Clearance Light, Amber, Rectangular
#TRL1203A
Product Overview
Signal-Stat, Incandescent, Yellow Rectangular, 2 Bulb, Marker Clearance Light, P2, Bracket Mount, Hardwired, Blunt Cut, 12V
Features & Benefits
- Die cast base with heavy mounting pad
- Shock/Mount for maximum bulb life
- Rubber O-ring secures Snap-On lens

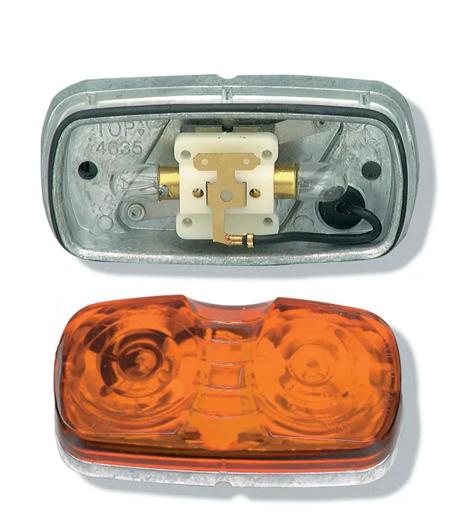

- Two bulb design-if one burns out, the other remains lighted
- Lamp meets requirements with only one bulb
Specifications
| Amps | 0.66 amp |
| Color | Amber |
| Common Size | 2 in (5.08 cm) |
| Contents | Marker Clearance Light |
| Current Major | 0.33 amp |
| Depth | 1-1/8 in (2.87 cm) |
| Diamond Shell (Y/N) | No |
| Function | P2, P3, PC, PC2 |
| Height | 2 in (5.08 cm) |
| Kit (Y/N) | No |
| Lens Material | Acrylic |
| Mount Type | Bracket Mount |
| Number Of Wires | 1 |
| Plug Side One | PL-2 (Stripped End) |
| Plug Side Two | PL-2 (Stripped End) |
| Reflectorized (Y/N) | No |
| Series | Signal-Stat |
| Shape | Rectangular |
| Standard | FMVSS 108, CMVSS 108, DOT, SAE |
| Technology | Incandescent |
| Type | Marker Clearance Light |
| VMRS Code | 034-004-021 |
| Volt | 12V |
| Width | 4 in (10.16 cm) |
| Wire Gauge | 18 ga |
| Wire Length | 3 in (7.62 cm) |
Interchanges & Equivalent parts:
| 5610182 |
| 5610182B |
| 1203A |
| 46001268 |
| 46002253 |
| 467833 |
| 84131203A |
| V139A |
| SIG1203A |
| TL1203A |
| TL26303Y |
| TLD1203A |
| TRL1203A |
| 1685890 |
| 1204A |
| 26303Y |
| TRU1203A |
| 1203A-TL |
| 1203AS1G |
| 1203ATLT |
| 81285 |
| 8413-1203A |
| 858297 |
| LIT1203A |
| SIG 1203A |
| TL 1203A |
| 139A |
| 46783GR0 |
| GRT46783 |
| M139A |
| PT2615A |
| TKL1203A |
| 46783 |
| 45683 |
