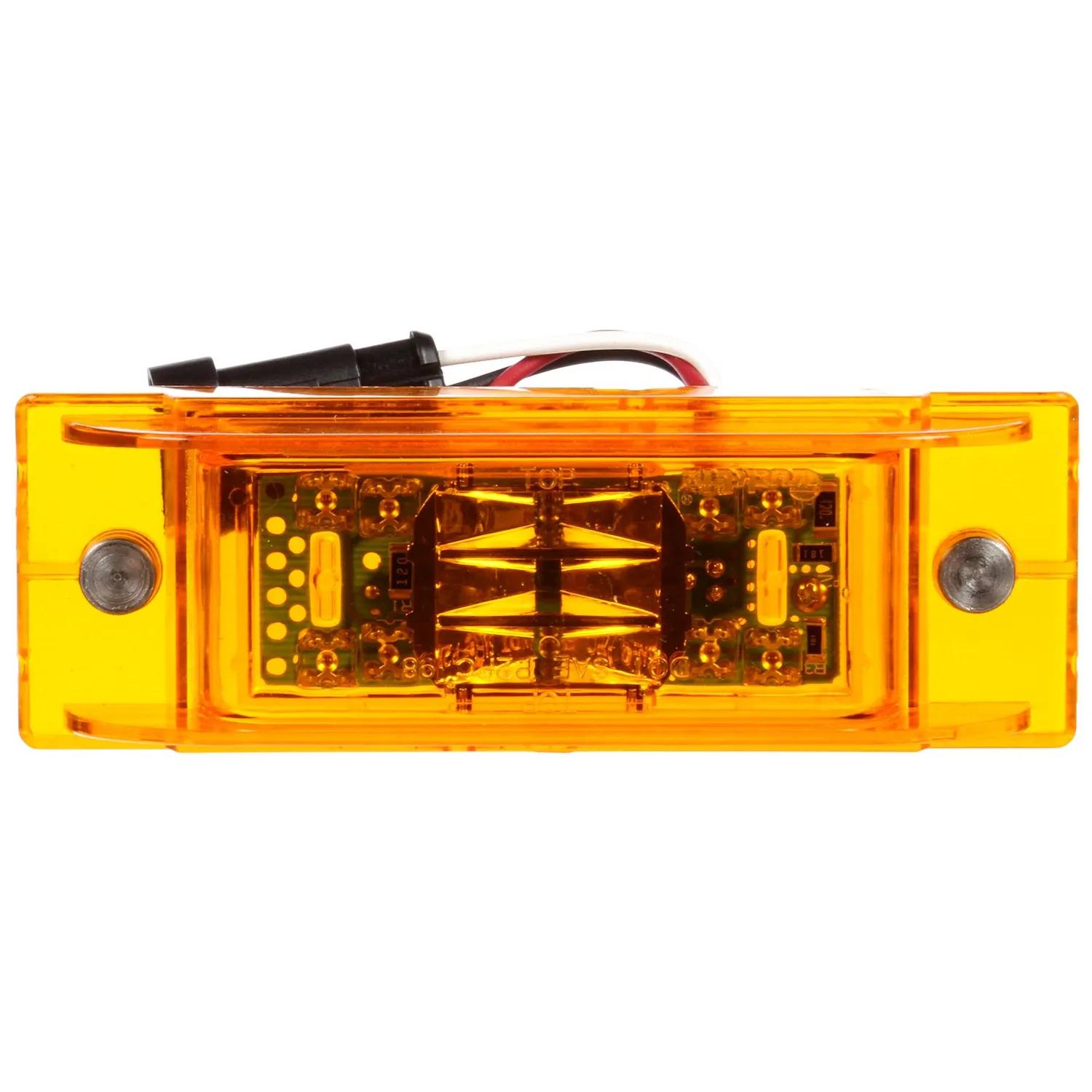

Marker Clearance Light, Amber, Rectangular
#TRL21090Y
Product Overview
21 Series, Auxiliary W/59" Mating Harness, LED, Yellow Rectangular, 16 Diode, Marker Clearance Light, P2, 2 Screw, Hardwired, AMP 282105-1, 12V
Features & Benefits
- Popular replacement on Freightliner vehicles where lamp is not mounted on a curved location
- Electronics completely sealed in epoxy to resist corrosion and moisture
- Less susceptible to shock and vibration
Specifications
| Color | Amber |
| Common Size | 2 in (5.08 cm) |
| Contents | Lamp, Plug |
| Current Major | 0.17 amp |
| Current Minor | 0.03 amp |
| Depth | 1-9/32 in (3.25 cm) |
| Diamond Shell (Y/N) | No |
| Height | 2-1/32 in (5.16 cm) |
| Housing Color | Yellow |
| Kit (Y/N) | No |
| Length | 6 in (15.24 cm) |
| Lens Material | Polycarbonate |
| Material | Polycarbonate |
| Mount Type | Side Mount |
| Number Of Wires | 3 |
| Plug Side One | Metripack |
| Plug Side Two | Metripack |
| Reflectorized (Y/N) | No |
| Series | 21 Series |
| Shape | Rectangular |
| Standard | FMVSS 108, CMVSS 108, DOT, SAE |
| Technology | LED |
| Type | Marker Clearance Light |
| VMRS Code | 034-003-097 |
| Volt | 12V |
| Width | 6 in (15.24 cm) |
| Wire Gauge | 16 ga |
Interchanges & Equivalent parts:
| TL21090Y |
| 21090Y |
| 8413-21090Y |
| LIT21090Y |
| TL 21090Y |
| TL 21090Y |
| TLD21090Y |
| GRT47073 |
| A0627561002 |
